Einleitung
This will show you how to install a new speaker into your iHome. For help troubleshooting click the link to our troubleshooting page iHome IH11 Troubleshooting.
Werkzeuge
-
-

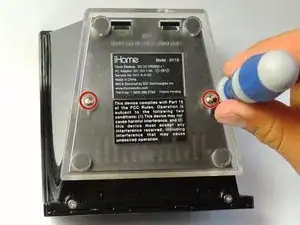

Unscrew the two 9.0 mm screws with a Phillips #1 screwdriver.
-
Remove the translucent bottom case.
-
-
-

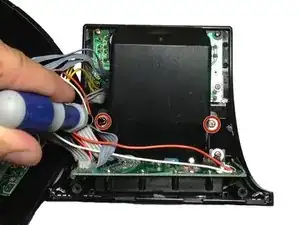

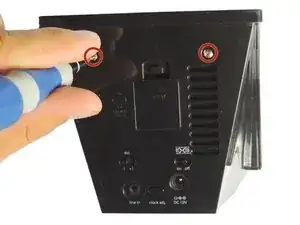

Remove the two 9.0mm screws on the back of the iHome with a Phillips #1 screwdriver.
-

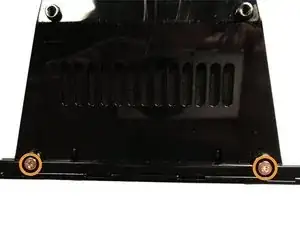

Repeat the previous step for the two 9.0mm screws on the bottom.
-
-
-

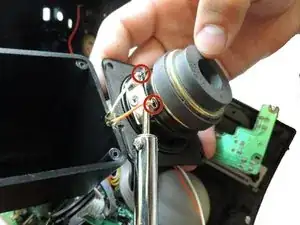

Remove the two 12.0mm screws holding the speaker to the iHome with a Phillips #1 screwdriver.
-
-
-

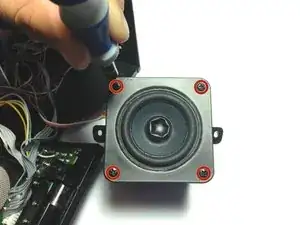

Remove the four 12.0mm screws on the face of the speaker with the Phillips #1 Screwdriver.
-

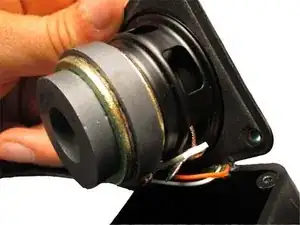

Carefully lift speaker out of its casing.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
