iHome iD95 Logic Board Replacement

Geschrieben von: Vincent Chan
  • Kommentare: 0
iHome iD95 Logic Board Replacement

Schwierigkeitsgrad

Difficult

Schritte

15

Zeitaufwand

50 Minuten - 1 Stunde

Einleitung

Replace a bad logic board if needed.

  1. RxF6uNRLSRhILAai

    • Before taking apart the iD95, disconnect the AC cord from the wall socket and AC adapter from the DC jack. Remove any iPods, iPhones, and iPads attached to the device.

    • Flip over the iD95 so the bottom cover is visible and the LCD screen is facing you.

  2. EiomT3LtGUOSBasH

    • Remove the 10 mm-length, 5 mm-head screw using a Phillips #1 screwdriver.

  3. GyMkXvQjOhkQdQIR

    • Use a plastic opening tool to take out the backup battery.

  4. RR3CcHxETNGExeUJ

    • Unscrew five 17 mm-length, 6 mm-head screws using a Phillips #1 screwdriver.

  5. DdZHPEgpOMvBaVg6
    DdZHPEgpOMvBaVg6
    Xnk1dAGcXWNrHy3O

    • The bottom cover is attached to the back cover by two plastic clips. Don't use excessive force.

    • Insert a plastic opening tool between the edge of the bottom cover and the main body.

    • Gently pry the bottom cover from the body. Start anywhere along the front side of the iD95 and work your way around.

    • Grip the bottom portion of the device and gently lift the front part of the bottom cover a couple centimeters up.

  6. ZyWoqkAODmOIWiMY
    ZyWoqkAODmOIWiMY
    KXJXNaIddhK2IQTL

    • Potential for device damage: Be careful not to use too much force or you might break the plastic rings holding the side panels in place.

    • Lift up the bottom cover. Pull the side panel up first, out, and away from the device.

    • The side panels have plastic rings that will need to be lifted up and off the cylinders they are placed around.

  7. MG2QjkOWDw2xHr5M
    MG2QjkOWDw2xHr5M
    iHSAiKfBQ1dlS6MI

    • Apply the same techniques from the previous step to remove the remaining side panel.

  8. hExtSXwjywv3BOGP
    hExtSXwjywv3BOGP
    1ffurJO6N6tDKWdQ
    R45TIxycnG4y5Rlg

    • Locate the two plastic clips holding the bottom and back cover together.

    • Which clip you remove first is up to you. Rotate the device 90 degrees either left or right. Insert the flat end of a spudger horizontally between the back speaker and the back cover.

    • Place the flat end of the spudger behind one clip and pry it open. This may take repeated attempts.

    • This is the hardest step because the angle is awkward and the visibility is poor. If possible, have someone hold the device or provide lighting.

    • Once a clip has been removed, hold the bottom cover open so the clip will not fall back into place. One clip remains to be removed; you are almost there!

  9. cmXfyDxp6MwbshGX
    cmXfyDxp6MwbshGX
    OSJWmDtQKfONxFPB

    • Use the same steps to remove the remaining clip.

    • The bottom cover is still connected to the motherboard by wiring.

  10. kjOyHduEuRIYyZei
    kjOyHduEuRIYyZei
    uZG3njofrvLJUIPh

    • Use a plastic opening tool to pry off the white ZIF connector joining the wires to the motherboard.

    • Don't pull the wires. Take your time using a plastic opening tool.

  11. SQIM4pAPCwsj4YBG

    • Take out four 14 mm screws using a Phillips #1 screwdriver.

  12. dveMLYLuCnNdjscB
    dveMLYLuCnNdjscB
    SBCtrEhOYrM2ZXWR
    1doreEoffNjOAH3K

    • Use a plastic opening tool to lift the two speaker zip connectors from the logic board.

    • Do not pull on the speaker wires directly. Continue to use a plastic opening tool.

  13. CBwbfsJu2CfGUAkb

    • Lift and remove both speakers.

  14. Jjv3Zp3mwKYTYBIG
    Jjv3Zp3mwKYTYBIG
    J6cesdmlTb6MivoA

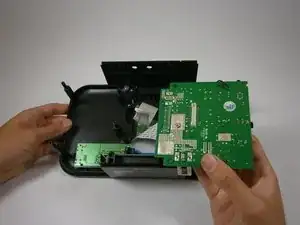

    • Flip the logic board over.

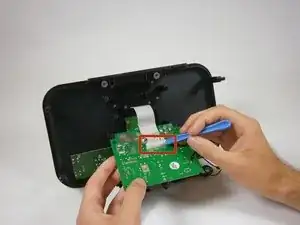

    • Use a plastic opening tool to pry and lift the iPod adapter zip connector from the logic board.

  15. 1memScqyP6JsuSbB

    • Desolder these 32 joints to detach the HDD data cable from the logic board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
