iHome iH27B AV circuit board Replacement

Remove any iPod or apple music device connected to the iHome and unplug from any power source.

Flip the iHome so the speakers are laying on a flat surface, and you have the concealed battery areas facing you.

Using your fingers, press down firmly on the plastic slide and push in the direction of the arrows shown above the word "Open" on the plastic.

Remove the plastic slide from its location and set it aside.

Remove all 4 AA batteries by placing your fingernail at one end of the battery and applying force upwards until the battery is freed from its holder.

Set the batteries aside, careful to not get them wet.

Insert your fingernail or a prying tool under the notch of the plastic slide that is protecting the watch battery.

Apply force in the direction of the arrow shown above the word "Open" on the plastic. The plastic piece covering the watch battery should come loose.

Set this plastic covering aside as well.

Remove the following screws:

Eight 10 mm Phillips #0

Use your fingers or a plastic opening tool to carefully pry apart the plastic connections still connecting the base to the top.

Slowly lift the plastic base towards you and lay it on the flat surface. The base should still be connected to the rest of the iHome by a few wires.

You should have visible access to most of the components inside the iHome now.

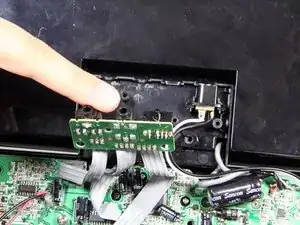

Remove the two 10 mm Phillips #0 screws attaching the circuit board to the case.

Desolder each of the sets of grey wires as close as you can to the circuit board.

Retrieve your replacement board, making sure to align it the same way as your defective board was previously aligned.

Solder the ends of the grey wires to the same locations on the replacement motherboard as you had them on your original board. (Not pictured in this guide.)
