Einleitung

  1. vuoThF55GBihA1pu
    • Remove any iPod or apple music device connected to the iHome and unplug from any power source.

    • Flip the iHome so the speakers are laying on a flat surface, and you have the concealed battery areas facing you.

  2. GdxTroZ2gRIT3EOa
    GdxTroZ2gRIT3EOa
    LVXbePVIVMJGZJyb
    JXJO2xcq4MaEpLVo
    • Using your fingers, press down firmly on the plastic slide and push in the direction of the arrows shown above the word "Open" on the plastic.

    • Remove the plastic slide from its location and set it aside.

    • These plastic slides are not interchangeable, so make sure each goes back to its original location in reassembly.

    • Remove all 4 AA batteries by placing your fingernail at one end of the battery and applying force upwards until the battery is freed from its holder.

    • Set the batteries aside, careful to not get them wet.

    • Insert your fingernail or a prying tool under the notch of the plastic slide that is protecting the watch battery.

    • Apply force in the direction of the arrow shown above the word "Open" on the plastic. The plastic piece covering the watch battery should come loose.

    • Set this plastic covering aside as well.

  3. iGtRfVi5RpRRHlDg
    • Remove the following screws:

    • Eight 10 mm Phillips #0

    • Cataloging each screw by size in plastic bags or separate places on a flat surface will make them easier to find when reassembling.

  4. OHH5MAKHQEMmYwA3
    • Use your fingers or a plastic opening tool to carefully pry apart the plastic connections still connecting the base to the top.

    • Be careful not to pry too hard. Cracking the plastic connections could make reassembly harder.

  5. dWLVRkO2o4AOeXNB
    • Slowly lift the plastic base towards you and lay it on the flat surface. The base should still be connected to the rest of the iHome by a few wires.

    • You should have visible access to most of the components inside the iHome now.

  6. FXwUDP5ZweD2eMrM
    • Remove the following screws:

    • Two 10 mm Phillips #0

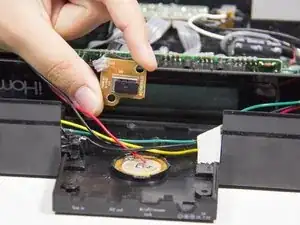

  7. UCohUyaptbj5h6yu
    • Remove switch and replace with new one.

Abschluss

To reassemble your device, follow these instructions in reverse order.
