Einleitung
You will be removing screws and pulling out your broken adapter in order to replace it with a new adapter.
Werkzeuge
Ersatzteile
-
-
Set the device with the adapter facing up.
-
Remove the following screws:
-
Two 10 mm Phillips #0
-
-
-

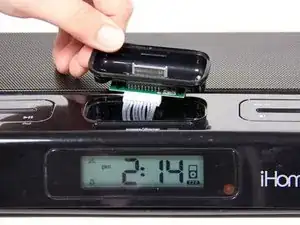

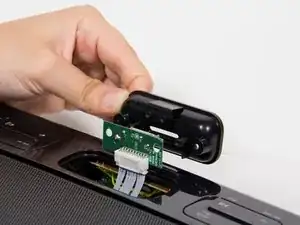

Grip the plastic adapter case and pull upwards with a medium amount of force. You will have to twist forward a little so that the connections are visible.
-
-
-

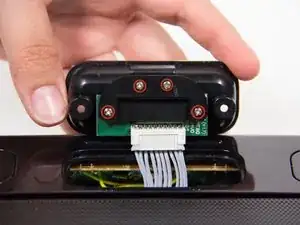

Remove the following screws:
-
Four 7 mm Phillips #0
-

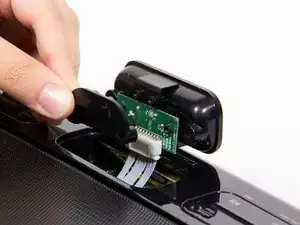

Lift out the two black plastic pieces that have come loose on either side of the circuit board, and set them aside.
-
-
-

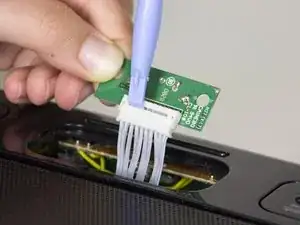

Carefully pry apart the bundle of white wires connected at the junction with the plastic opening tool.
-

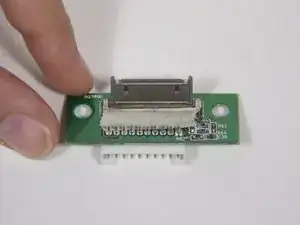

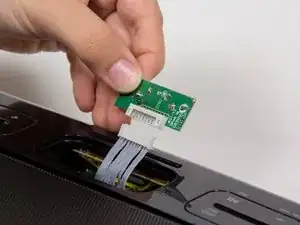

Lift out the circuit board that has become loose.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
