iHome iH3L Scroll Wheel Circuit Board Replacement

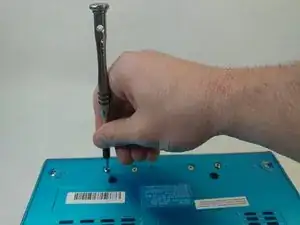

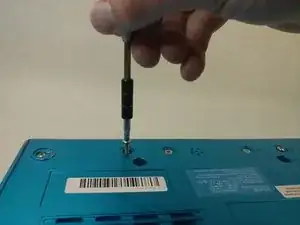

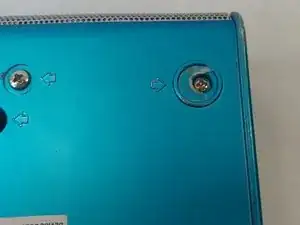

Locate all screws on the back of the iHome. Each screw can be located by the arrows on the iHome.

Two Countersunk 9.7 mm Phillips #2 screws in the middle.

Two 15.9 mm Phillips #2 screws.

Six 13.9 mm Phillips #2 screws.

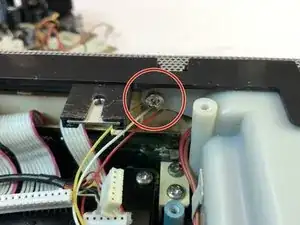

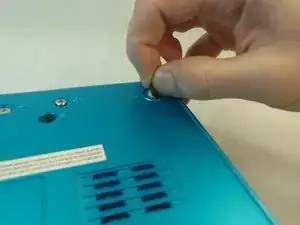

Some screws are located under the black sticky pads. Gently remove the black sticky pads and it will expose the screws.

Two 11.8 mm Phillips #2 screws.

Remove all screws indicated in the previous step.

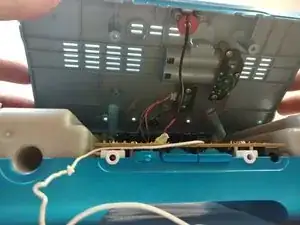

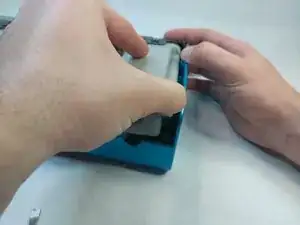

Slowly tilt the bottom cover of the iHome up.

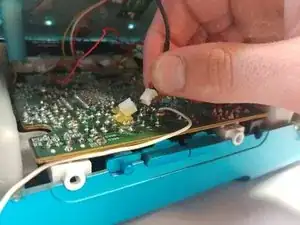

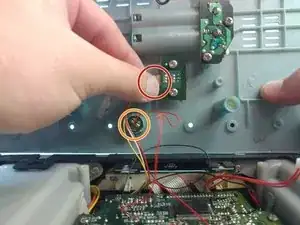

Disconnect the wire just by pulling on the connector gently.

Disconnect the next connector pin after slowly opening the lid more.

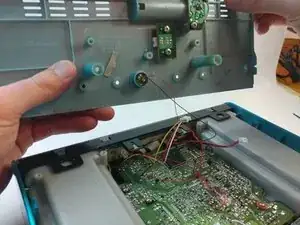

Disconnect the final connector pin series and carefully set your lid behind the body of the iHome.

The tiny speaker will not be disconnected for this repair, but you can easily remove it from the lid by means of a paperclip from the outside. While not necessary, this can help prevent damage to your device.

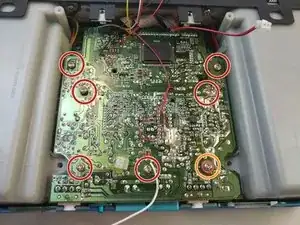

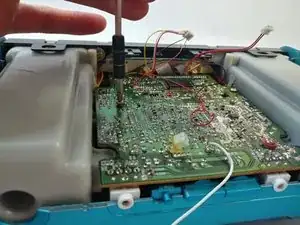

Remove the seven screws that are holding the motherboard in place:

Six 14 mm Phillips #2 screws.

One 14 mm Phillips #2 screw with two rubber washers on it.

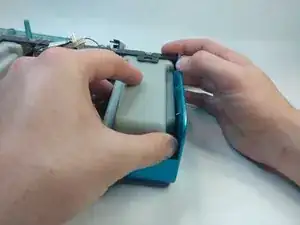

To remove the motherboard, gently lift up from opposite sides.

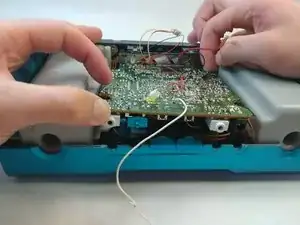

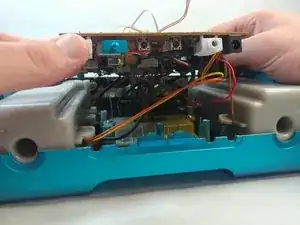

Carefully tilt the motherboard up from the front.

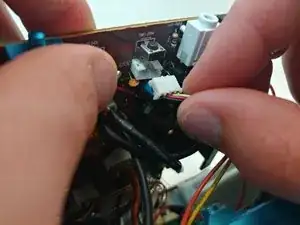

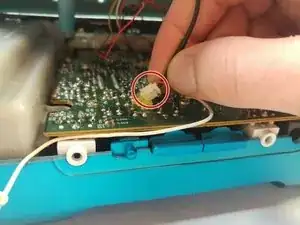

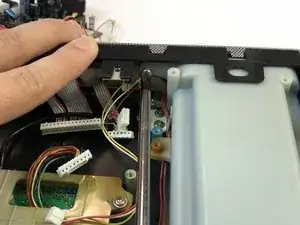

Disconnect the 8 connections by gently pulling on them. Starting from the front and work your way backwards.

All 8 connectors disconnected.

Unscrew the screws holding the speakers onto the body. One on each side:

Two 14.3 mm Phillips #2 screws.

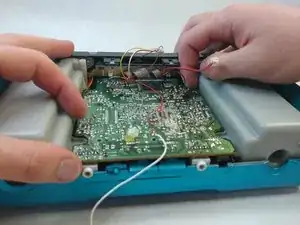

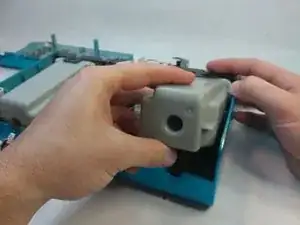

To remove the speakers from the iHome, gently lift up the back of the speaker and pull towards you. These are very secure so minor shaking may help release the speaker.

Repeat for the other side.

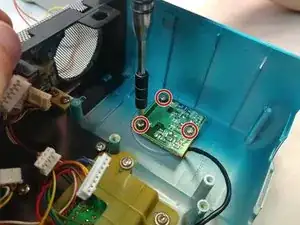

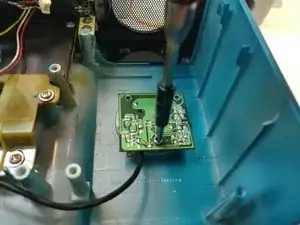

Remove the three 7.9 mm Phillips #2 screws holding the scroll wheel board down.

Repeat for the other side.

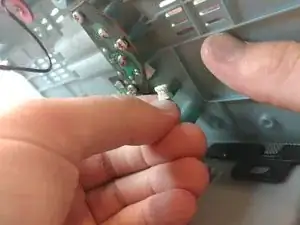

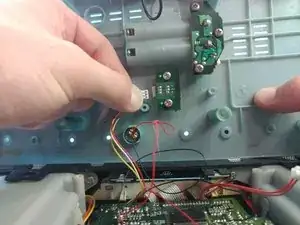

With the screws removed, gently pull the scroll wheel circuit board up.

Repeat for the other scroll wheel circuit board.

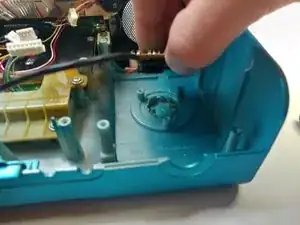

The connector to the scroll wheel has already been disconnected from the motherboard.

Untangling the wires might be necessary to completely remove it.

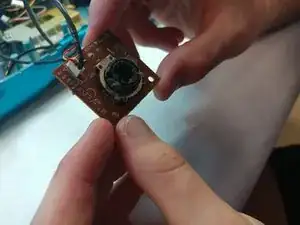

You have successfully removed the scroll wheel circuit boards.
