iHome iM71SC Spring Replacement

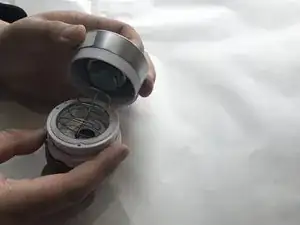

Push down and turn the top of the speaker clockwise. This will release the clips and expand the speaker.

Use a #000 Phillips screwdriver to remove the four 1 mm screws from the bottom half of the speaker.

Flip the speaker over and use a #000 Phillips screwdriver to remove three 1mm screws . Unscrew these to unfasten the top.

Remove the now unfastened coverings to expose the internals of the speaker.

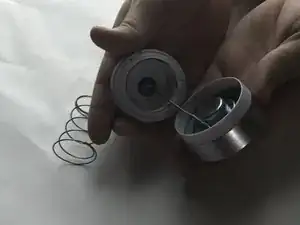

Pry the spring from the speaker housing using the blue plastic pry tool.

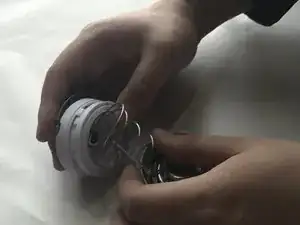

Unwind the old spring from the wires.
