Use this guide to remove your iHome iP1's dock cover. This cover is located on the underside of the iPod/iPhone dock. Although it serves no function other than to protect the command button and dock assemblies, it is necessary to remove in order to access other components of the iHome iP1, such as the 30-pin connector and the command buttons.

  1. bqAqO2UVhS1V6oSY

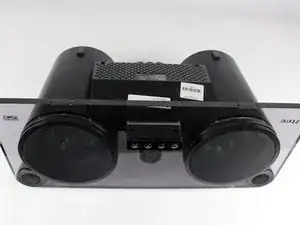

    • Orient the iHome upside down with the speakers facing you.

  2. SAfJYpqNEEvHffkk

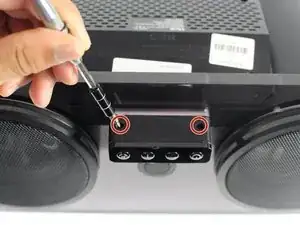

    • Remove the two 9.5 mm Phillips #1 screws from the dock cover.

  3. clasPMMh21UMWYU4
    clasPMMh21UMWYU4
    NpOHZqEAjSmCLKcZ
    FOsaJjXOGWF1KPTT

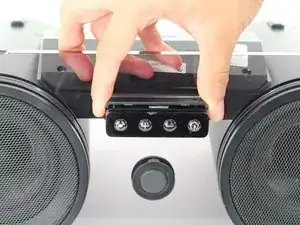

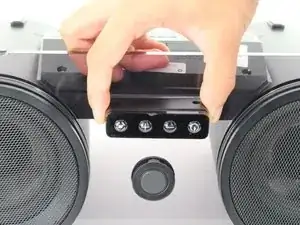

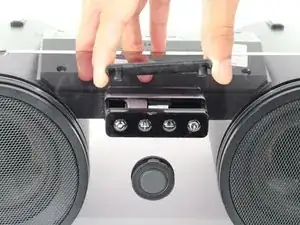

    • Remove the dock cover by grabbing its sides and pulling it up and away from the faceplate.

    Where can I buy this part

    Soude Alibabaie -

Abschluss

To reassemble your device, follow these instructions in reverse order.
