iHome iP41BR Ipod Adapter Replacement

Geschrieben von: Paige Reisman
  • Kommentare: 0
iHome iP41BR Ipod Adapter Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

  1. DnYVvAFkRKhEOtiY

    • Remove the two 8mm Phillips #0 screws from the iHome's iPod adapter.

  2. DDyxtbxbqMobpGAS
    DDyxtbxbqMobpGAS
    cCWkOdPvHwAHlQGt

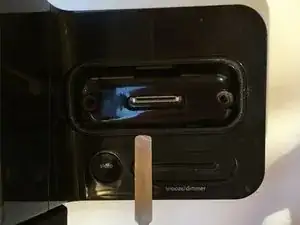

    • Use the metal spudger to loosen the edges of the plastic cover.

    • Pull the adapter up and away from the housing, rotating it forward slightly as you lift it so the top faces you.

  3. IPM5mtGCphaKGFXX

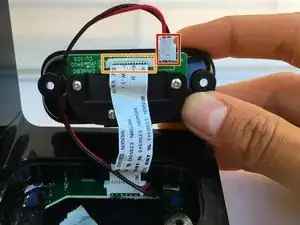

    • Pull firmly on the red and black cable connector to disconnect it.

    • Pinch the ribbon cable on both sides and pull it firmly to disconnect it.

    • The ribbon cable takes a bit more force to disconnect than the red and black cable. Make sure to pull evenly on the entire cable for ease of removal.

  4. rEPSWZvBRJWiYjKi
    rEPSWZvBRJWiYjKi
    pFwvGnR3fXN2iaBj

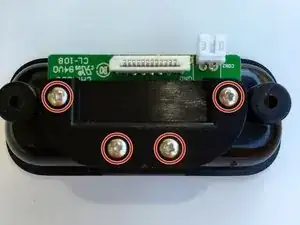

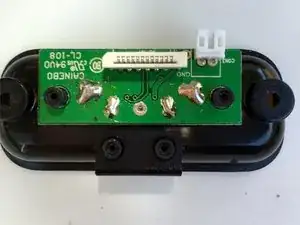

    • Remove the four 7mm Phillips #00 screws attaching the black plastic cover to the bottom of the adapter assembly.

  5. 3U1txAWqyPWpIDgH

    • Pull the ipod adapter out of the plastic holder ad replace.

Abschluss

To reassemble your device, follow these instructions in reverse order.
