iLive IKBC384S Disk Drive Replacement

Geschrieben von: Allen Dover
  • Kommentare: 0
iLive IKBC384S Disk Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

You will be replacing the entire disk drive in your radio, the only special tool that is needed for this replacement are the iOpener or heat gun because of the adhesive.

  1. c4lefSEhYlDJKLqa
    c4lefSEhYlDJKLqa
    UD4BpYONGyWvl3DI

    • Make sure you remove all seven 3 mm screws before proceeding to the next step.

  2. RqtCbNZZ4wAAwQRp
    RqtCbNZZ4wAAwQRp
    xSOcHD3CEhAXb5dK

    • Use iOpener or heat gun on all sides except the front.

  3. 5OFyrIJxF3TYVEwK
    5OFyrIJxF3TYVEwK
    sGbGCawsLjwg2NZA

    • Be cautious when taking the top of the device off there may still be some adhesive stuck to device.

    • The top of the device will be very difficult to remove because of the adhesive holding it together.

  4. Z1PPlo2L1EPYhWnV
    Z1PPlo2L1EPYhWnV
    WIdB6y1KfSUXWIGC

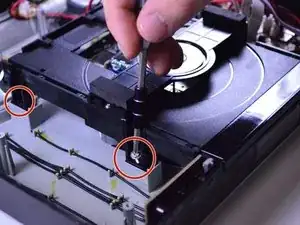

    • Remove all four screws(13.5 mm in length) that are securing the device

  5. tgkvJff4ftwdMAEP
    tgkvJff4ftwdMAEP
    EYTY4FnOmdFvVGVM

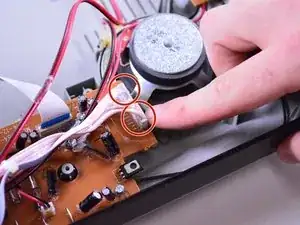

    • Remove both of the connected cords on the motherboard.

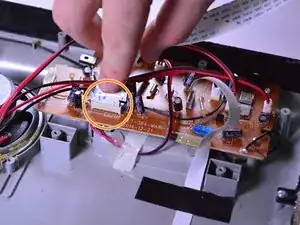

    • Also remove the flat ribbon cable that is connected to the motherboard.

    • Once you have removed all screws and cables connected to motherboard the disk drive can be easily removed

Abschluss

To reassemble your device, follow these instructions in reverse order.
