iLive IKBC384S Power cord and connector Replacement

Geschrieben von: Allen Dover
  • Kommentare: 0
iLive IKBC384S Power cord and connector Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

8 Minuten

Einleitung

You will be replacing the AC power connector and cord in the device to make sure you will have power to the device.

  1. c4lefSEhYlDJKLqa
    c4lefSEhYlDJKLqa
    UD4BpYONGyWvl3DI

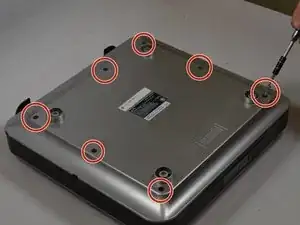

    • Make sure you remove all seven 3 mm screws before proceeding to the next step.

  2. RqtCbNZZ4wAAwQRp
    RqtCbNZZ4wAAwQRp
    xSOcHD3CEhAXb5dK

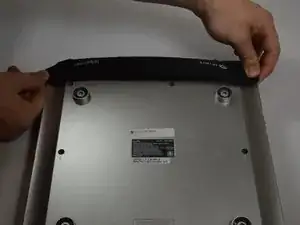

    • Use iOpener or heat gun on all sides except the front.

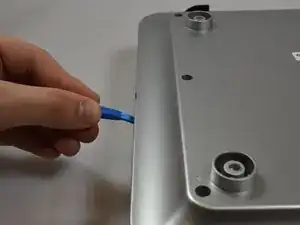

  3. 5OFyrIJxF3TYVEwK
    5OFyrIJxF3TYVEwK
    sGbGCawsLjwg2NZA

    • Be cautious when taking the top of the device off there may still be some adhesive stuck to device.

    • The top of the device will be very difficult to remove because of the adhesive holding it together.

  4. TWYBUYKu1YyHpKrm

    • Remove the one (13.5mm in length) srew holding the power connector and cord in place.

  5. H2cDTxlkNNApfeDg

    • Remove the power cord connected to the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
