iMac (21,5 Zoll, Retina 4K Display, Intel) Displaykabel der Displayeinheit austauschen

Geschrieben von: Evan Noronha

Kommentare: 11

iMac (21,5 Zoll, Retina 4K Display, Intel) Displaykabel der Displayeinheit austauschen

Schwierigkeitsgrad

Mittel

Schritte

Zeitaufwand

Keine Schätzung

Einleitung

Grundständige Anleitung, um die Displaykabel eines 21,5" Retina 4K Ende 2015 iMacs zu lösen.

Werkzeuge

Pinzette

Schritt 1

Hebe das Display soweit hoch, um leichten Zugang zum Verbinder zu haben. Hebe es aber nicht zu hoch (höchstens 20 cm), damit die Kabel nicht zu sehr angespannt und die Verbinder nicht zu sehr belastet werden.
Halte das Display mit einer Hand fest und löse mit der anderen Hand das Kabel der Stromversorgung des Displays.

It was difficult to remove this connection. I ended up having to gently pull-up vertically a little on the wire side to unsnap it about 1mm and then horizontally wiggle it out.

delacrj2 - 22/12/17

I had a difficult time removing this connection. I had to lift the wire-side about 1mm before it unsnapped and then carefully wiggle it out horizontally.

delacrj2 - 22/12/17

Can this cable be replaced? I am worried mine is damaged. I have no display after the screen fell and stressed the display flex cables following an SSD upgrade.

Jeremy Brainard - 19/04/19

This step should be done with extreme caution and care, as this step 19 is not described in great detail (sorry, author).

The first (most outward) cable will slide out by gently pulling it by its tabs. The second (inner) cable is more tricky, as the locking lever must be moved backward first, before gently pulling backward on the cable connector. The angled tweezers are useful here, to help lift that locking lever, because fingers are too big for this.

Ernst -

be VERY careful and SLOW...take your time. These displays crack VERY easily when removing and they'll spider web on you. I've done probably 20 or so of these and cracked 3 being super careful.....ugh.

Faslane -

I found the best way to unplug this display power cable was to use my right hand, and the fingernails of my index finger and thumb to grab the ends of the tabs on either side of the connector, squeeze, and pull the connector out gently.

Phil McInnis -

Schritt 2

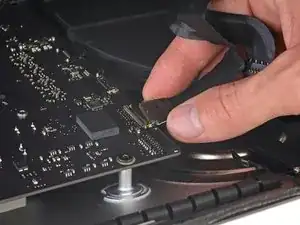

Halte das Display weiterhin mit einer Hand fest und klappe den metallenen Sicherungsbügel am Displaydatenkabel hoch.
Ziehe das Displaydatenkabel vorsichtig aus seinem Sockel auf dem Logic Board.
Achte darauf, dass du den Verbinder des Displaydatenkabels gerade aus seinem Sockel ziehst. Halte ihn dabei parallel zur Platine, damit er nicht beschädigt wird.

Cannot seem to find a replacement cable for this, as I suspect mine is damaged. Can’t even find a part number. Anyone know what it might be?

Jeremy Brainard - 19/04/19

https://www.amazon.com/gp/product/B08TTL...

That's the part I ordered for mine and it seems to work ok. I did make a point of contacting the seller and advising them of my requirement and they ensured I got the right part and it matches the description of the link. Bear in mind I bear no responsibility if yours does not work since I am just sharing what I did and what I ordered. Thanks.

Jim Stanford -

I also need that cable.

cameronjpu - 24/03/20

It's a little difficult to tell... but looking at the connection to the logic board on the video data cable, are the pins faced up or down?

On the display, same question since it appears you have to "twist" the cable during the reconnection step.

Jim Stanford - 09/05/22

For this particular cable, take a good look before pulling on anything. Plug is locked on its socket with a bracket. You can lift this bracket by holding the small, flat black plastic handle that is attached to it. If you're struggling to grab it, use the end of the pizza roller handle to lift it, or the tweezers. Cable then comes off by pulling parallel to the main board.

Froggy Manny -
