The iMac uses an incredibly hard to get to power supply. It has 24-Pins. This will require taking the iMac fully apart.

  1. gGVjVbZFLV61fCAO
    • The iMac G3. This was a great computer for the time, and had plenty of features.

  2. DUFXQG1sqjDL1mWo
    • Start by flipping the iMac upside-down. It may help to lay it on a towel, so you don't damage the screen, or scratch the face.

  3. QVaxOhZWv5goXGwC
    QVaxOhZWv5goXGwC
    LfEwfwjNndwimJBG
    EmBNBpWyQ1x6GbTP
    • Remove this Phillips screw.

    • Using a flathead screwdriver, work your way around the bottom cover, until it comes off.

    • Then, lift the bottom cover up and out, and set it aside.

  4. 5i3eX6Lh2jWsxneJ
    5i3eX6Lh2jWsxneJ
    jcAfjZ5ssqMpyubi
    AnoPhThAGRGPV3SD
    • Now, remove the DB-15 Video connector from the logic board.

    • It may be helpful to use a Phillips screwdriver to remove the thumbscrews.

  5. bMq6q56SDvtD4aCc
    bMq6q56SDvtD4aCc
    KcjQhLK1A2yG3HjO
    wCF6aWJR3H521OdI
    • Remove the power cable from the logic board assembly.

  6. 3PrKVx1LscHck1Js
    3PrKVx1LscHck1Js
    bO21VFiAPCciFH5b
    • Remove the front panel connector. (You may also need to remove an additional screw that connects the front panel connector to the logic board assembly).

  7. pyVPpD1AlWbWDWgj
    pyVPpD1AlWbWDWgj
    NmIRkBxPcZflcX1y
    MIDMd6SEwScUfiRf
    • Now, remove these Phillips screws.

    • Now, grab the logic board assembly by the piece of plastic, and lift it out.

  8. jaqBFKiv51dRVdiU
    • The logic board assembly. This is the heart of the computer, it contains the motherboard, CPU, RAM, V-RAM, PRAM battery, the hard drive, and the optical drive.

  9. Wb1cEWGNTDuwZReF
    Wb1cEWGNTDuwZReF
    lcA2bKqW2ldr4Bpr
    TxpP3CtcUnFANvDH
    • Now, remove these screws.

    • Now, lift the bottom cover off.

  10. pLqKDdaJeSRZ1A3B
    pLqKDdaJeSRZ1A3B
    RjlYusDVA4jrSCFO
    vPnaBkI3ITlTDXco
    • Removing the front bezel:

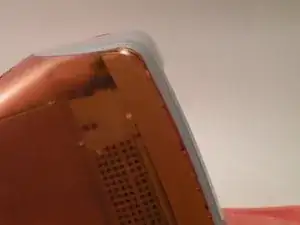

    • There isn't a great position to put the iMac in to remove the front bezel. I recommend flipping it so it it like it would normally be positioned.

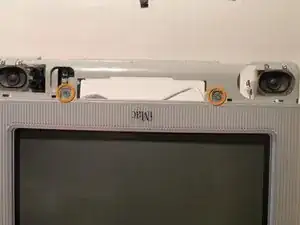

    • Remove these two Phillips screws.

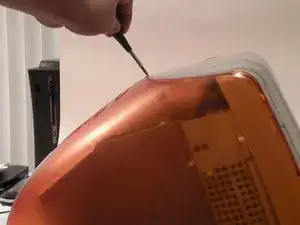

    • Now, work your way around the bezel with a flathead screwdriver, and then, pivot it up towards the top, and remove it.

  11. YWiKgnxHrP3qmVBF
    YWiKgnxHrP3qmVBF
    6vNVvTYNBoWvMBZG
    DqODiVKSxZ2jfeTU
    • Removing the translucent plastic:

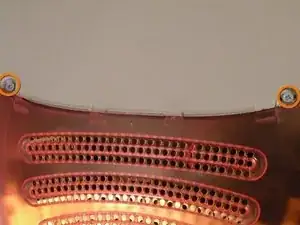

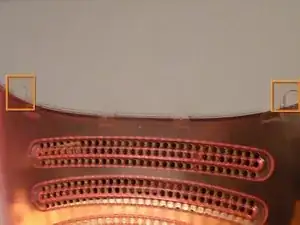

    • Removal of the front bezel will reveal two screw covers on the top, pop them off with a Phillips screwdriver.

    • Now, use a Phillips screwdriver to remove the screws.

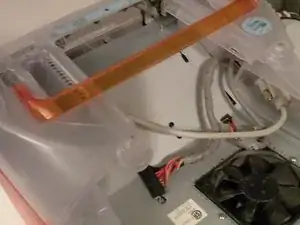

    • You can now remove the plastic.

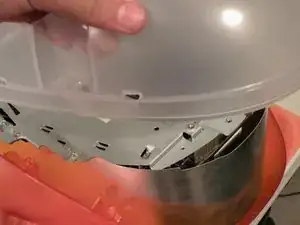

    After taking out the screws, you remove the translucent plastic by pulling the translucent plastic up (if computer orientation is bottom side down), and to the sides, the latches look like hooks and are not pressure latches.

    Do this for each side at a time

    Tal Glazer -

  12. gvTjDbSmUAYYmlXS
    gvTjDbSmUAYYmlXS
    T4WQsBcJLQchx2PP
    fpINP5dPIsI6axOT

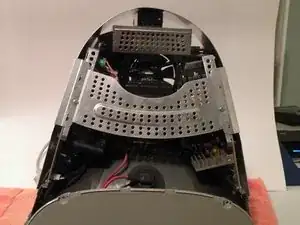

    • Removing the EMI Shield:

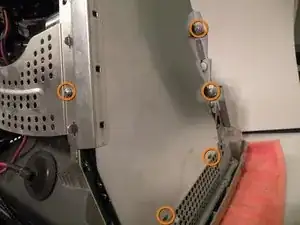

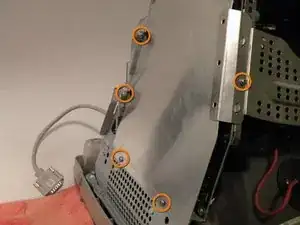

    • Remove all 10 of these screws, and lift the EMI Shield off.

  13. yxTkufBFhjAJd3MS
    • Power Supply:

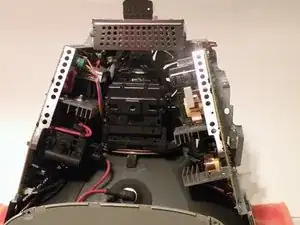

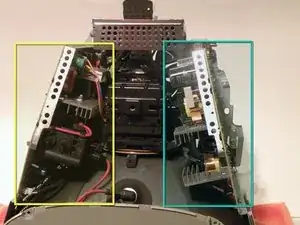

    • Removal of the EMI shield will reveal two major circuit boards.

    • The Display Driver:

    • The Power Supply:

    • The power supply and driver board are dangerous, if you do not know what you are doing, you could severely injure or kill yourself.

  14. uvBwWWoIyLN56Gh4
    uvBwWWoIyLN56Gh4
    fmUlUFUWt3OhQiXr

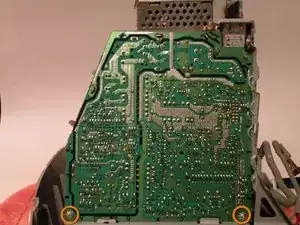

    • Remove these three screws.

  15. CUC3dwYbwbjmhsmC
    CUC3dwYbwbjmhsmC
    EoNrSIUYBKtgJYag
    fIUPKYNNutsADvAv

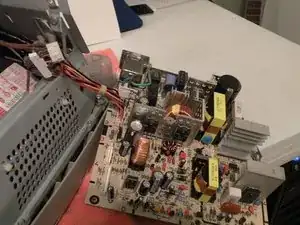

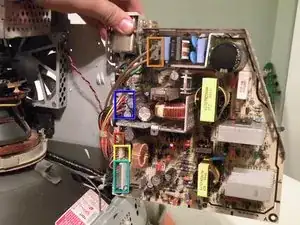

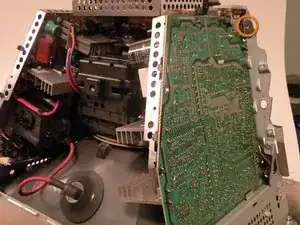

    • Now, swing the board out, and remove the following connectors:

    • AC Power

    • To System Fan

    • Don't remove this. It comes free with the logic board power.

    • To Display Driver

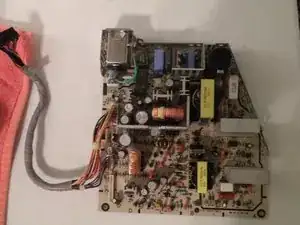

    • The connector that is attatched to the logic board; to remove it, simply thread it through the hole in the metal:

    • Now, you should be able to remove the power supply.

Abschluss

To reassemble your device, follow these instructions in reverse order.
