Einleitung

Removing the logic board assembly to replace it with a new one.

  1. OUjX5HuFT2cfryyU

    • Unplug all the cables from the computer, including the power cable. Lay the computer face-down, supporting the neck and base with a soft cloth under the screen.

  2. FfaEvPGVgaNLEnsS

    • Loosen the four Phillips #0 screws.

  3. cPqrwIQjjVBCTxFY

    • Carefully remove the base access panel.

  4. uNyPvDfLqBUrw6DH
    uNyPvDfLqBUrw6DH
    r3AuxS1INr2ABjcd

    • Remove the four 25mm T-15 screws.

  5. EHMSy4KmMMoS6VUj
    EHMSy4KmMMoS6VUj
    3kjS3QkLCpJyEYoh

    • Open the housing plate.

    • Be gentle with the wires still connected to the logic board so as not to ruin the cables.

    • A fixed plug connector between the logic board and upper unit will cause some resistance. Pull gently but firmly.

  6. HnupqAMCrlWPUDsh

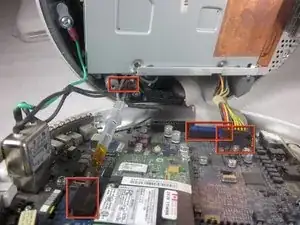

    • Gently remove the cables marked in red.

  7. ShKegSEUiWKHpCUW

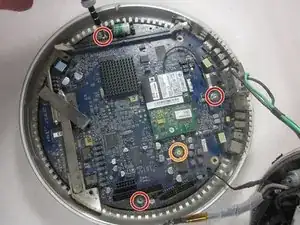

    • Remove the three metal 10mm T-15 screws.

    • Remove the one nylon 10mm T-15 screw.

  8. KcFCnI4uB51iOYtK

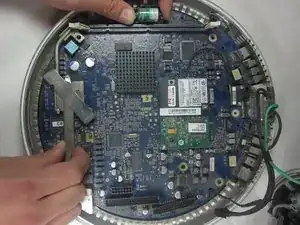

    • Using thumbs and forefingers, firmly grasp the battery holder in one hand while grasping the metal bar in the other. Gently lift and pull the logic board to release it.

    i followed instructions and the logic board is stuck in there! can’t find any answers on the web either. any ideas?

    the biohazard -

Abschluss

To reassemble your device, follow these instructions in reverse order.
