iMac G4 17 800 MHz EMC 1936 PRAM Battery Replacement

Geschrieben von: Justin
  • Kommentare: 4
iMac G4 17 800 MHz EMC 1936 PRAM Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

30 Minuten

Einleitung

Removing an old or broken PRAM battery.

  1. OUjX5HuFT2cfryyU

    • Unplug all the cables from the computer, including the power cable. Lay the computer face-down, supporting the neck and base with a soft cloth under the screen.

  2. FfaEvPGVgaNLEnsS

    • Loosen the four Phillips #0 screws.

  3. cPqrwIQjjVBCTxFY

    • Carefully remove the base access panel.

  4. uNyPvDfLqBUrw6DH
    uNyPvDfLqBUrw6DH
    r3AuxS1INr2ABjcd

    • Remove the four 25mm T-15 screws.

  5. EHMSy4KmMMoS6VUj
    EHMSy4KmMMoS6VUj
    3kjS3QkLCpJyEYoh

    • Open the housing plate.

    • Be gentle with the wires still connected to the logic board so as not to ruin the cables.

    • A fixed plug connector between the logic board and upper unit will cause some resistance. Pull gently but firmly.

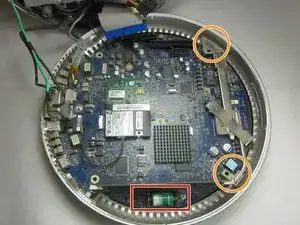

  6. G6IQQDrRLaAkjQhX
    G6IQQDrRLaAkjQhX
    OnuSBs4fLCuI5qar

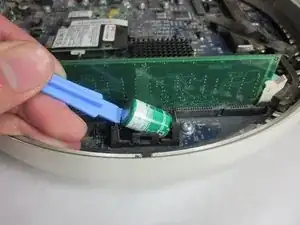

    • Gently remove the battery from its holder using the plastic opening tool.

    • Insert new battery.

    • Clean and re-apply thermal paste to the heat sink areas circled in orange. See Step 15 in iMac G4 17" Model M9168LLA Hard Drive Replacement for better photos and description.

Abschluss

To reassemble your device, follow these instructions in reverse order.
