iMac G5 17" Model A1058 Bluetooth Board Replacement

Geschrieben von: Walter Galan
  • Kommentare: 8
iMac G5 17" Model A1058 Bluetooth Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

Regain Bluetooth functionality by replacing your Bluetooth board.

  1. ZmbcJOeMcMf6nt5J

    • Lay the iMac display-side down on a flat surface.

    • Loosen the three Phillips screws securing the rear panel to the iMac.

    • These screws are captive in the iMac. The center screw will stop turning after about 3.5 turns and the outer screws will stop turning after about 5.5 turns. Do not try to remove these screws from your iMac.

    My iMac has only ONE catch, the central one, so the two outer screws are not to be touched.

    In fact, I tried so hard to unscrew them, with a good screwdriver, that my hand hurt. Knowing that some times captive things (like these screws or a faucet) can be already at the end of their travel and we only lock them further into that position, I tried both screwing and unscrewing to no avail.

    paulfrancoeur -

    The two outer screws each drive a locking bar that engage tabs on the rear panel.

    They definitely need to be unscrewed.

    Dale Stanbrough -

    That chick MJ is sexy!!!!!

    djmadcracker -

    Looks like one of these screws is not like the others... a security Philips?! Never seen one of those before.

    Terry Mullane -

    Please Note: If your iMac has an antenna for the airport extreme and not the bluetooth card. Don't buy the bluetooth get the airport extreme instead. Also, some newer devices may not work with these units.

    James Janota -

    Just want to say thank you to ifixit! You guys are amazing and so helpful! This was so easy to do and I ordered the part I needed as well! We are up and running over here and my 7 year old son could not be any happier! Thank you!

    mary nicolazzo -

    These are the easiest way to resolve the Wireless connectivity at my home. Thanks ifixit for sharing this.

    Geek Squad -

  2. CXXvGbeo2PYwhMNV
    CXXvGbeo2PYwhMNV
    qvDGtVsUUxTXMTvI
    Hs3JDgtjpSPjgMqC

    • Lift the rear panel slightly from the bottom edge of the iMac.

    • Pull the rear panel toward yourself and remove it from the iMac.

  3. HgThuRZQVQgRwmPU

    • Remove the two 5.5 mm T6 Torx screws securing the Bluetooth board to the logic board.

  4. MsUc6DvjAJo2U3m1
    MsUc6DvjAJo2U3m1
    tsWFumZmv6U4YR4X

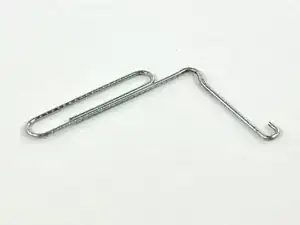

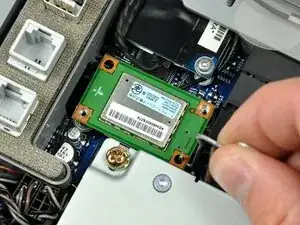

    • Bend a paper clip into a hook and use it to pull the Bluetooth board up off its socket on the logic board.

    • You may use a spudger to remove the Bluetooth board, but be sure to only apply upward force as any sideways force may cause the connector to shear off the Bluetooth board.

  5. ppLeZSIqAEMKDvPt

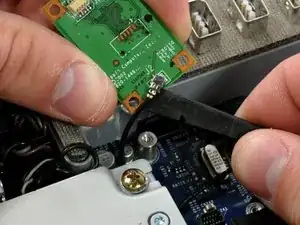

    • Use a spudger to pry the Bluetooth antenna connector up off the Bluetooth board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
