iMac G5 17" Model A1058 Hard Drive Replacement

Geschrieben von: Walter Galan
  • Kommentare: 7
iMac G5 17" Model A1058 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

Upgrade your hard drive for an instant increase in storage space.

  1. ZmbcJOeMcMf6nt5J

    • Lay the iMac display-side down on a flat surface.

    • Loosen the three Phillips screws securing the rear panel to the iMac.

    • These screws are captive in the iMac. The center screw will stop turning after about 3.5 turns and the outer screws will stop turning after about 5.5 turns. Do not try to remove these screws from your iMac.

    My iMac has only ONE catch, the central one, so the two outer screws are not to be touched.

    In fact, I tried so hard to unscrew them, with a good screwdriver, that my hand hurt. Knowing that some times captive things (like these screws or a faucet) can be already at the end of their travel and we only lock them further into that position, I tried both screwing and unscrewing to no avail.

    paulfrancoeur -

    The two outer screws each drive a locking bar that engage tabs on the rear panel.

    They definitely need to be unscrewed.

    Dale Stanbrough -

    That chick MJ is sexy!!!!!

    djmadcracker -

    Looks like one of these screws is not like the others... a security Philips?! Never seen one of those before.

    Terry Mullane -

    Please Note: If your iMac has an antenna for the airport extreme and not the bluetooth card. Don't buy the bluetooth get the airport extreme instead. Also, some newer devices may not work with these units.

    James Janota -

    Just want to say thank you to ifixit! You guys are amazing and so helpful! This was so easy to do and I ordered the part I needed as well! We are up and running over here and my 7 year old son could not be any happier! Thank you!

    mary nicolazzo -

    These are the easiest way to resolve the Wireless connectivity at my home. Thanks ifixit for sharing this.

    Geek Squad -

  2. CXXvGbeo2PYwhMNV
    CXXvGbeo2PYwhMNV
    qvDGtVsUUxTXMTvI
    Hs3JDgtjpSPjgMqC

    • Lift the rear panel slightly from the bottom edge of the iMac.

    • Pull the rear panel toward yourself and remove it from the iMac.

  3. RWyOuTS2lKkufC1I
    RWyOuTS2lKkufC1I
    JrMNBEYLkAX4LdQQ

    • Remove the two Phillips screws securing the fan cover to the midplane.

    • The shouldered screw belongs in the lower left corner of the fan cover.

    • Lift the fan cover up off midplane.

  4. eEa6MntpAbdPu1Kr

    • Disconnect the hard drive thermal sensor cable from the hard drive thermal sensor.

    • During reassembly, plug in the hard drive thermal sensor before lowering your new hard drive into the midplane.

  5. jdReNifG2sERNtYa
    jdReNifG2sERNtYa
    huxL51CRkDhwW2C1

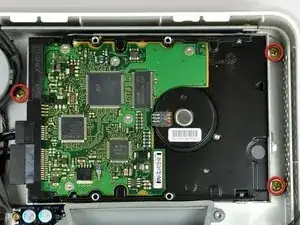

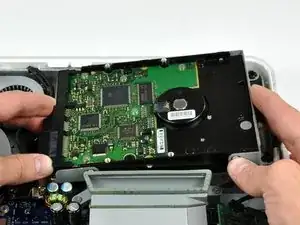

    • Remove the three Phillips screws securing the hard drive to the midplane.

    • Lift the hard drive from its right edge and maneuver it out of the midplane.

    • The hard drive is still connected to the motherboard.

  6. OuAJkHMeaFXGBCoX
    OuAJkHMeaFXGBCoX
    FsTGlyZpi3kVSBk4

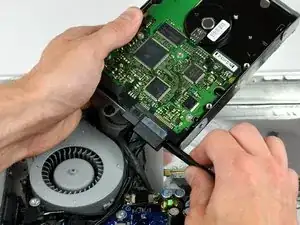

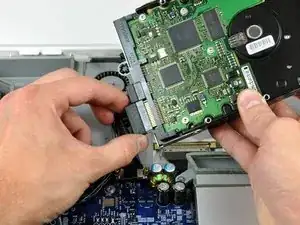

    • Insert the flat end of a spudger between the SATA power cable connector and the body of the hard drive.

    • Twist the spudger counter-clockwise to slightly separate the SATA power cable connector from its socket on the hard drive.

    • Pull the SATA power cable connector away from the hard drive.

  7. TvoXGVpRoyrepsiJ

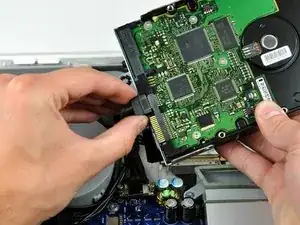

    • Pull the SATA data cable connector away from the hard drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
