iMac not reading disks anymore? Use this guide to replace your optical drive.
Ersatzteile
-
-
Lay the iMac display-side down on a flat surface.
-
Loosen the three Phillips screws securing the rear panel to the iMac.
-
-
-
Lift the rear panel slightly from the bottom edge of the iMac.
-
Pull the rear panel toward yourself and remove it from the iMac.
-
-
-
Lift the optical drive near the connector to separate it from the logic board.
-
Lift the free end of the optical drive slightly, then pull it away from the edge of the rear case to clear the two plastic positioning pins.
-
Lift the optical drive out of your iMac.
-
-
-

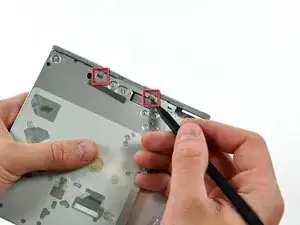

Remove the two 3.7 mm T6 Torx screws securing the optical drive connector board to the optical drive.
-
-
-

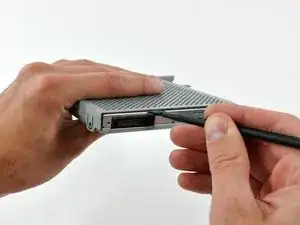

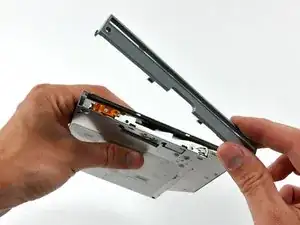

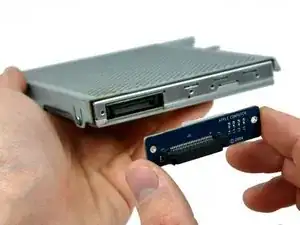

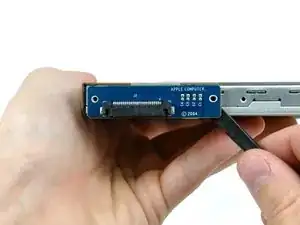

Working from alternating sides of the board, use the flat end of a spudger to separate the optical drive connector board from the optical drive.
-
-
-

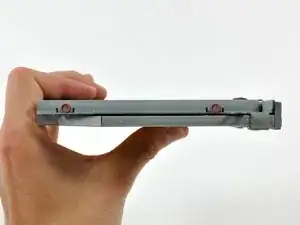

Remove the two 4.5 mm shouldered T6 Torx screws from each side of the optical drive (four screws total).
-
-
-

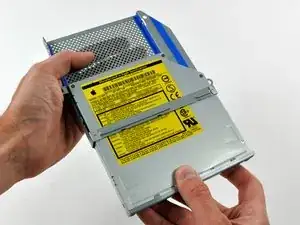

Insert a spudger into the gap between the optical drive and its cage near the optical drive connector.
-
Pry the optical drive away from the vibration isolating material along the inside of the cage.
-
-
-

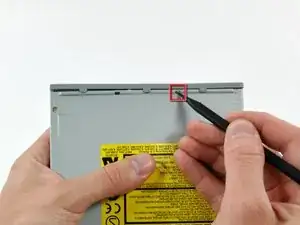

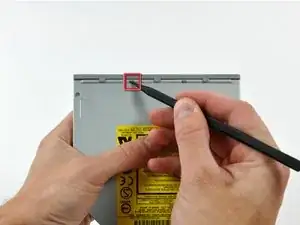

Use the tip of a spudger to push the two plastic bezel tabs away from their retaining slots on the top of the optical drive.
-
-
-

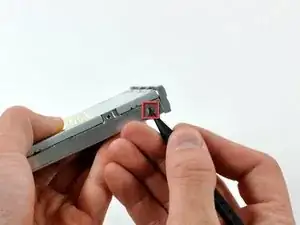

Use the pointed end of a spudger to depress and release the bezel retaining tab on the side of the optical drive.
-
-
-
If necessary, use the pointed tip of a spudger to release the two plastic bezel tabs from their slots on the bottom of the optical drive.
-
To reassemble your device, follow these instructions in reverse order.
My iMac has only ONE catch, the central one, so the two outer screws are not to be touched.
In fact, I tried so hard to unscrew them, with a good screwdriver, that my hand hurt. Knowing that some times captive things (like these screws or a faucet) can be already at the end of their travel and we only lock them further into that position, I tried both screwing and unscrewing to no avail.
paulfrancoeur -
The two outer screws each drive a locking bar that engage tabs on the rear panel.
They definitely need to be unscrewed.
