Keep processor temperatures down by replacing your broken fans.
Ersatzteile
-
-
Lay the iMac display-side down on a flat surface.
-
Loosen the three Phillips screws securing the rear panel to the iMac.
-
-
-
Lift the rear panel slightly from the bottom edge of the iMac.
-
Pull the rear panel toward yourself and remove it from the iMac.
-
-
-
Remove the two Phillips screws securing the fan cover to the midplane.
-
Lift the fan cover up off midplane.
-
-
-
Disconnect the hard drive data cable connector from the logic board by pulling its connector straight up.
-
-
-
Disconnect the upper left fan cable connector from the logic board by pulling its connector straight up.
-
-
-
Remove the two T8 Torx screws securing the upper left fan to the chassis.
-

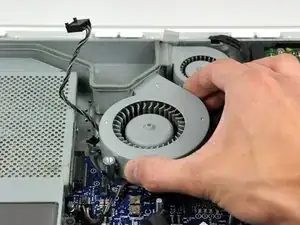

Lift the upper left fan out of the chassis.
-
To reassemble your device, follow these instructions in reverse order.
My iMac has only ONE catch, the central one, so the two outer screws are not to be touched.
In fact, I tried so hard to unscrew them, with a good screwdriver, that my hand hurt. Knowing that some times captive things (like these screws or a faucet) can be already at the end of their travel and we only lock them further into that position, I tried both screwing and unscrewing to no avail.
paulfrancoeur -
The two outer screws each drive a locking bar that engage tabs on the rear panel.
They definitely need to be unscrewed.
