iMac G5 17" Model A1144 RAM Replacement

Geschrieben von: Walter Galan
  • Kommentare: 0
iMac G5 17" Model A1144 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 - 15 Minuten

Einleitung

Upgrade your RAM for an instant increase in speed!

  1. Aew5W1SyZmXwiIpC

    • Before you work on the computer, unplug the computer and press the power button for 20-30 seconds to drain the stored energy in the power supply.

    • Loosen the two Phillips screws securing the access door to your iMac.

    • These screws are captive in the access door.

  2. sgn5MWowvBqWBHTa

    • Remove the access door from your iMac.

  3. MQDEKEaQBoKDlLCW

    • Insert your fingers into the two RAM arms and pull both arms toward yourself to eject the RAM chip.

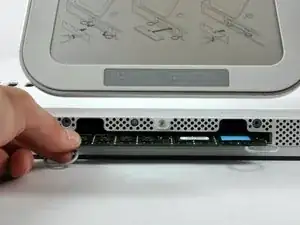

  4. ySgGiIysGTY4r2mI

    • Slide the RAM chip straight out of its socket.

    • Make sure both RAM arms are fully rotated outward before reinstalling your RAM chip.

Abschluss

To reassemble your device, follow these instructions in reverse order.
