iMac G5 20" Model A1145 Speakers Replacement

Geschrieben von: Andrew Bookholt
  • Kommentare: 6
iMac G5 20" Model A1145 Speakers Replacement

Schwierigkeitsgrad

Moderate

Schritte

24

Zeitaufwand

Keine Schätzung

Einleitung

Is your iMac always mute? Replace the speakers.

  1. hw1bBkAvhVZIyXSX

    • Orient the iMac face-side down on a table with the bottom edge facing yourself.

    • Remove the two Phillips screws securing the access door to the bottom grille of your iMac.

    • The screws are captive in the access door.

    • Before beginning the repair, unplug the computer and press and hold the power switch for 20-30 seconds, to discharge internal capacitors.

    As you remove the screws during these steps, place them on a towel or a piece of cardboard. With a Sharpie label a piece of masking tape with the step number from which they were taken from. Then place the removed screws under the tape.

    This ongoing step will aid in you having control on your reassembly without searching for and identifying the size and length all the screws that you are about to remove.

    R51801 -

  2. XkSbYFV4MTxBmNfN

    • Remove the access door.

  3. QoX5kPUKyJKMZ5au

    • Remove the three T8 Torx screws securing the front bezel to the rear case along the lower edge of the iMac.

  4. DbWAXnJuNjRXbW1O
    DbWAXnJuNjRXbW1O
    UeQxw3FJlweimGFp

    • Turn the computer over.

    • Use your thumbs to press both RAM arms in past the front bezel for enough clearance to lift it off the rear case.

  5. prOSWW3xgLncFFZy

    • While holding the RAM arms in with your thumbs, lift the lower edge of the front bezel enough to clear the rear case.

    you might have more luck by gently leveraging the stand up

    Joseph A Borg -

  6. u2fWpIh51xuCqZmn
    u2fWpIh51xuCqZmn
    EDMG1XaTTyDGC4VK
    TlTXwpICIQonFFOc

    • Re-orient your iMac so it sits upright on the stand.

    • Insert a plastic card up into the corner of the air vent slot near the top of the rear case.

    • Push the card toward the top of the iMac to release the front bezel latch.

    • Pull the front bezel away from the rear case.

    • Repeat this process for the other side of the front bezel.

    • It may be necessary to apply several layers of duct tape to the top of the access card to aid in releasing the latches.

    • If the bezel refuses to release, try pressing the lower edge back onto the rear case and repeat this opening process.

    • Alternatively, you can use a strong magnet by holding it to the front top left/right corner of the display. You will hear a snapping sound when the hatch is released.

    If it still does not release try pressing in and out (like an accordion) with the card in one hand and the screen bezel in the other until it pops loose.

    rick -

    If your computer has ever been worked on by an authorized Mac repair shop, this step may not be needed. I was able to skip this step after lifting the lower edge of the front bezel. Front bezel lifted off easily.

    Timothy Walsh -

  7. 2wmWOXf3oVD1F4QU

    • Lay your iMac stand-side down on a table.

    • Lift the front bezel from its lower edge and rotate it away from the rest of your iMac, minding the RAM arms that may get caught.

    • Lay the front bezel above the rest of the iMac.

    My A1145 seems to be attached, somehow, on the top via some silver looking strips. It does not seems to want to come off. Is that the wireless?

    Chris Arnold -

    NO they are clamps on each of the top inside corners of the outside bezel (frame ) if you use a Heavy Spudger Tool & pry not too hard just slightly between the bezel (side) and the display (side) this should pop each off usually by just popping one or the other sides the second will automatically pop as well.

    Mark Meininger -

  8. AlU5PlI6SNPXFvSg

    • If necessary, remove the piece of kapton tape wrapped around the microphone and camera connectors.

  9. ftnyaBFpEU4rAAxF
    ftnyaBFpEU4rAAxF
    R1qFASy3kLNXLKYA

    • Disconnect both the camera and microphone cables.

  10. XsWgtxRHhYrNG3O2

    • Peel the lower EMI shield off the lower edge of the iMac and off the two vertical 4" sections on either side of the iMac.

    • It is not necessary to peel the lower EMI shield off the display.

  11. wXHb6GFjlpDQlPcb

    • Tape the lower EMI shield up against the face of the display to keep it out of the way while you work.

  12. LMXQTEAWTciQPRkh

    • Disconnect the IR board cable by pulling its connector toward the left edge of your iMac.

  13. lSTnRjdYFr4Z4o6q

    • Remove the two T6 Torx screws securing the IR board to its metal bracket.

    • Hold the IR board as you remove the last screw, as it may fall.

  14. eYQ5eTkZp2MjpkuW

    • Remove the IR board from your iMac.

  15. XrWZXlDOUX1ZReIY

    • Remove the single T10 Torx screw securing the right speaker to the rear case.

  16. JOPb11NaCqemGUXy

    • Lift the right speaker out of the rear case.

    • The cable between the speaker and its connector is short, so either hold the speaker or allow it to hang from the iMac for the next few steps.

  17. YhQUG4L1he1YllTp

    • Remove the two Phillips screws securing the AirPort/Bluetooth board to the logic board.

    • On some models, these may be T6 Torx screws.

  18. haYhveM5QaAZ4wOH

    • Use your finger to lift the AirPort/Bluetooth board from its left edge, disconnecting it from the logic board.

    • Lift the board from its left edge only.

  19. VKWZQcmdL3raIAym
    VKWZQcmdL3raIAym
    MOeXRf3eXW3KbSFh

    • Use the flat end of a spudger to pry both antenna connectors up off the AirPort/Bluetooth board.

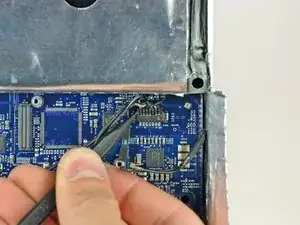

  20. uF5uNZVsUXwtkYdr
    uF5uNZVsUXwtkYdr
    JfAOFJGQ3fN6mvR1

    • Use the tip of a spudger to push the ears on either side of the speaker connector toward the top edge of the iMac.

    • It will be necessary to work from alternating sides to "walk" the connector out of its socket.

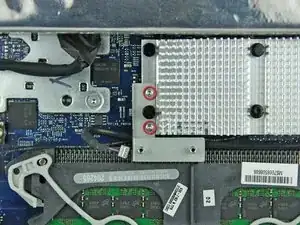

  21. HhVMYxq6Shx3pPKu
    HhVMYxq6Shx3pPKu
    XydwIKnK3FYZSCBb

    • Remove the two T6 Torx screws securing the IR board bracket to the aluminum heat sink on the logic board.

    • Remove the IR board bracket.

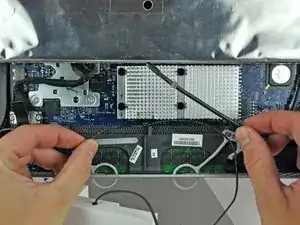

  22. XFua3aVkPwkoojfW

    • De-route the speaker cable along the face of the logic board.

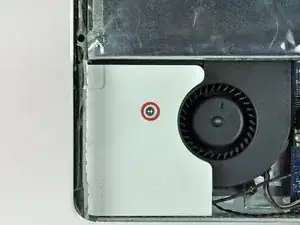

  23. QwABnkDQPqsV52LF

    • Remove the single T10 Torx screw securing the left speaker to the rear case.

    • The screw for the left speaker is coarse-threaded.

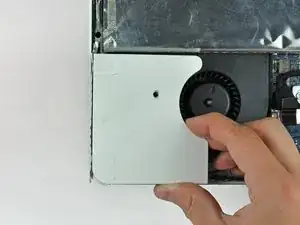

  24. QTUcBfhRyyfcbmFb

    • Lift the left speaker out of the rear case.

    • the left speaker cable may be routed under the hard drive fan cable and the power button cable. If so, disconnect both cables by pulling their connectors away from the face of the logic board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
