iMac Intel 20" EMC 2133 und 2210 Infrarotplatine austauschen

Schritt 1

Löse die Kreuzschlitzschraube in der Mitte des Schutzblechs.
Diese Schraube lässt sich nicht komplett vom Blech entfernen.
Entferne das Schutzblech vom iMac.

isn't it actually pc2-5300s ?

grze -

It is for the 2133, the 2210 uses 6400

maccentric - 02/05/19

Schritt 2

Die Glasscheibe ist auf der Frontblende mit insgesamt 14 Magneten befestigt.
Setze zwei Saugheber auf gegenüberliegende Ecken der Glasscheibe.
Zum Anbringen der von uns verkauften Saugheber positioniere zunächst den beweglichen Teil des Griffs parallel zur Glasfläche. Drücke den Griff dann leicht gegen das Glas und hebe den beweglichen Teil des Saughebers, bis er parallel zu dem anderen Griffteil ist.
Wenn die Saugheber nicht haften, reinige sowohl die Glasscheibe als auch die Heber mit einer milden Seifenlauge.

At this stage and later handling the LCD I found thin cotton gloves helped to reduce smudges

john31 -

My GPS unit's car mount suction cup worked nicely here - couldn't find any at the store and didn't want to wait for mail order!

Two cups would make it easier but one is fine if you place it in the center and are careful to pull the panel straight out.

Mathew Hendry -

Why use suction cups when some finger nails will do the job nicely, though a plastic spudger might work too. Start at a top corner. Prize the glass away from the case and leave finger nails in. Move the other hand along the top edge and then with finger spread peel the screen cover away. Be careful not to twist plastic I suppose, but I've had no difficulties.

damianwise -

3M Command Strip hooks in opposite corners is another fabulous option when suction cups are not available!

Adam McCombs -

Tape works fine, here. Search for a YouTube video for a simple look-see.

Richard -

I didn't have any suction cups, but my pencil sharpener (the kind that suctions to the table) worked great. I put it on the middle and lifted straight up.

Lisa Mac -

For a quick 'n' dirty alternative "tool" for this step, take a look at IKEA's Stugvik suction hooks: they provide an excellent adjustable grip. Just used it to take apart an EMC2133. Cheers!

hadderakk - 07/01/15

Suction cups usually available at Home Depot or Lowes, in the flooring section. (They're used to handle large ceramic & stone floor tiles.)

Griff in Fairbanks - 01/11/15

I can confirm it is fairly easy to pull it up, the heavy duty suction cups were adequate of course, but pretty sure you can do it without heavy duty stuff? Panel is rather light too.

Julien -

Schritt 3

Ziehe die Glasscheibe gerade nach oben vom iMac ab.
Die Glasscheibe verfügt auf ihrem Umfang über mehrere Positionierstifte. Um ein Abbrechen der Stifte zu vermeiden achte bei der Demontage darauf, die Glasscheibe wirklich senkrecht nach oben zu ziehen.
Reinige beim Wiedereinbau das LCD und die Innenseite der Glasscheibe sehr sorgfältig, da sonst ggf. Staub und Fingerabdrücke verbleiben, die störend sichtbar werden, wenn das LCD eingeschaltet wird. Es empfiehlt sich, die Glasscheibe beim Ausbau mit der Innenseite auf einer frischen Aluminiumfolie zu platzieren, um Verschmutzungen zu vermeiden.

In order to avoid unnecessary smudges and what not I covered the LCD itself with some plastic wrap while doing the hard drive upgrade. When I reinstalled it all I needed to do was blow off a few dust particles.

robgendreau -

While you are at it, it is worth cleaning out dust within the case to help with cooling - particularly around the fans and vents.

For the screen I used a lens cleaner from my camera bag. These have very fine fibers and won't leave detritus.

Mathew Hendry -

Note that the front glass panel is quite light. When reassembling I found it impossible to get the LCD free of dust with the computer lying on its back. I had success with standing the computer up, tilting the LCD down as far as it goes, holding the glass panel upright in front of the computer (about 1 foot away), lightly spraying both the LCD and the back side of the glass panel with compressed air, and then attaching the glass panel (with the computer upright). It took me 5 tries before it was completely clean of dust once the front glass was on.

axel -

Although I do not advise it, you can substitute the suction cups with two strips of duct tape along the sides of the glass, with the tape attached to it's self in the middle of the strip

Erin - 01/09/18

Tuandomino ini sudah di akui oleh para member member setia di dunia situs poker online Indonesia. Yang pertama situs ini sudah diakui dan mendapatkan sertifikat resmi oleh pusat server situs poker online.

tuansakong99 - 31/05/19

Get out of here with your spam.

Jason Zak - 27/05/21

Schritt 4

Entferne die folgenden 12 Schrauben, welche die Frontblende am dahinter liegenden Gehäuse befestigen:
Acht 13 mm T8 Torx.
Vier 25 mm T8 Torx.

On the 24" EMC2134 there are 3 screw sizes: 6x13, 4x20 & 2x30mm, particular note should be made of their location.

john31 -

Note for the less experienced.. the case is plastic and the metal coarse thread screws will easily cut a new thread in the hole if you don't line up the screw in the original thread. Do this a few times and the hole will be stripped and the screw no longer tightens.

TIP:- place the screw in the hole and rotate BACKWARDS/counter clockwise (for RH threads) until you hear/feel it click/drop into the original thread then tighten the screw down. rotate it a couple times to get the feel of things. If there is any significant resistance you probably don't have the original thread.

This trick also works on the fine metal thread screws and can help avoid cross threading them.

HIH

Richdave -

On the 24 inch iMac Model A1225 EMC #2134, the two T8 Torx screws in the middle are the longer of the four total bottom 25 mm screws. Just a note for reassembly.

bhoffs -

This step is not really explained here with pictures. But you can check this same step in another guide to help you : iMac Intel 20" EMC 2266 Frontblende austauschen

thibault - 16/05/15

I'll echo Thibault's comment. This guide does not actually tell you when and/or how to remove the bezel! Click on the other guide he linked to see the photo and instructions.

steven - 13/08/15

Make sure you're ram slot at the bottom is open to remove front frame bezel

edgain99 - 31/05/16

I think you're missing this step: With the iMac lying on its back screen facing up, grasp the aluminum sides of the bezel and carefully pull it straight up. Then disconnect the microphone cable. Took me a while to figure it out.

Richard Cacciato - 27/12/16

I found it helpful to use a few lids from spaghetti sauce jars to hold the different screws. I used a sharpie to mark the inside of the lid w/ location taken from or the step number from directions. Then I placed a small magnet under the lid to hold the screws inside the lid in case I accidentally jostle something on the table. Worked great! You can also use a magnetic knife bar to line up the lids in sequential for the project.

tom - 05/10/17

I cut a hardwood block and drew the outline of the the iMac shape with the base as key. I then drew another two lines at 1/2” and 1” all around from the outline. This done I drilled holes for each screw (12 Outer securing the front bezel to the rear case , and 8 Inner screws securing the display panel to the rear case ). That way I don’t lose any or get them mixed up.

jmadams - 13/06/18

I think the title of this chapter could be (in french) désinstallation but not Installation with is the contrary. Idem for the other chapters.

Bertrand Guigaz - 30/12/19

Schritt 5

Lege deine Hände auf die oberen Ecken der Blende (an der Seite) und hebe die Blende 2-3 cm oben vom Gehäuse ab. Danach kannst du die Blende auch unten aushängen (Die Speichermodule haben verhindert, dass du die Blende zuerst unten abnehmen kannst). Beim Zusammenbau musst du unten anfangen.
Im oberen Rand der Blende befindet sich ein an das Logic Board angeschlossenes Mikrofon. Hebe die Blende behutsam an, damit das Mikrofonkabel und der Stecker nicht versehentlich beschädigt werden.
Jetzt kannst du entweder das Mikrofonkabel abtrennen und die Blende entfernen, oder du kannst das Mikrofonkabel angeschlossen lassen und die Blende auf dem Arbeitstisch oder das Gehäuse des iMac legen.
Zum Entfernen der Blende musst du den Mikrofonstecker ablösen, wenn nötig das Klebeband abziehen.
Wenn das Mikrofonkabel angeschlossen bleiben soll, dann lasse es mit dem Logic Board verbunden und lege die Blende auf das Gehäuse drauf, wobei das Mikrofonkabel wie ein Gelenk geformt wird.
Wenn du das Mikrofon am Gehäuse angeschlossen lässt, dann achte darauf nicht gegen die lose Blende zu stoßen, sonst könnte das das Mikrofon oder die Hauptplatine versehentlich beschädigt werden.

I avoided this step by just flipping the housing over and having it lay flat on the table. The tape on mine was on really tight, and I risking ripping the wires out of the connector if I messed with it (I didn't have some really small scissors which might have helped removing it). I would suggest either securing the body of the iMac and the housing to the table you're working on, or somehow securing the housing to the body, so that it doesn't move around accidentally, since it's only hanging on by a very thin wire at that point.

robgendreau -

^^^ This! This tutorial should be amended for this step. Much, much easier and less damage-prone.

(There really oughta be a step addressing the removal of the bezel as well.)

cklarson - 11/07/18

Make sure you do not pull this apart by the wires. Have a firm grasp on the plastic parts. Do not force back together. It only goes back together one way. Also, it is crucial when placing the aluminum bezel back in place that this wire is out of the way. It often gets in the way and is easily damaged.

Kyle Freeman -

CAUTION - To disconnect the cable, you'll need to support the bezel while you carefully extract slack microphone cable which is tightly tucked within the iMac. (I didn't have this guide's 'notes on' and missed robgendreau's warning - then inadvertently shifted the bezel and busted my microphone cable in this step.)

dagnew -

Don't forget to pull the microphone cord out before you put the panel back on. Otherwise you will have to go back and remove screws to find that microphone cord

Melvin Hines -

As robgendreau says, avoid this whole step by opening the bezel and laying it upside down above the iMac, still connected by the mic cord, just carefully. Then replace the battery, suck/blow out your dust, and carefully rotate the front bezel back over the iMac from where you removed it. No cord manipulation or damage at all!

recmsoj - 02/03/15

When reassembling the bezel, you should actually gently pull the microphone connector (and cables) through the ~1 inch long slot in the bezel next to the iSight camera, when lowering the top part of the bezel onto the chassis . Then further lower the bezel onto the chassis of the iMac, while making sure there’s no room / play between the bottom of the bezel and the bottom of the body (where the memory slots reside). . This way you’ll avoid damaging the microphone cable. Finally gently push the microphone wires and connector through that sale long slot in the bezel to conceal them inside the bezel.

Olivier Biot - 19/12/18

Tuandomino merupakan Situs Poker Online dan qiu qiu online yang terbaik di indonesia dengan halaman mobile friendly , serta sangat ringan untuk dapat kalian akses melalui pc atau pun gadget.

tuansakong99 - 31/05/19

How about no?

Jason Zak - 27/05/21

Schritt 6

Beim Zusammenbau der Frontblende:
Schiebe das Kabel und den Stecker des Mikrofons vorsichtig in die Öffnung neben dem Kameraboard.
Ziehe den Stecker vorsichtig durch die Öffnung im Rahmen rechts neben der iSight Kamera. Schiebe den Stecker nach der Montage des Rahmens wieder durch die Öffnung zurück.

Schritt 7

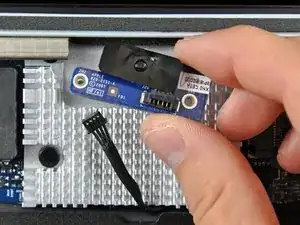

Löse das Kabel zum Infrarotsensor von der Infrarot-Platine, indem du seinen Stecker aus dem Sockel in Richtung Unterkante des iMac ziehst.

Schritt 8

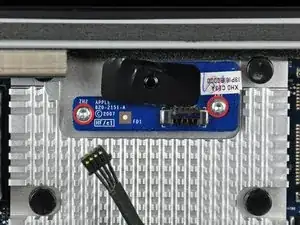

Entferne die beiden 5,4 mm Torx T6 Schrauben, welche die Infrarotplatine am Logic Board festhalten.
Die Infrarotplatine ist nun ganz vom Logic Board gelöst und kann herausfallen.

Schritt 9

Hebe die Infrarotplatine aus dem iMac heraus.
