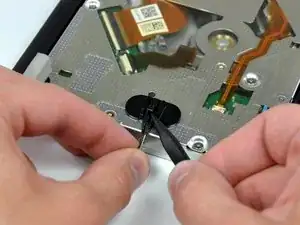

iMac Intel 20" EMC 2266 Thermosensor am optischen Laufwerk austauschen

The grid won't fall off by itself. You'll have to help it. Use the smallest screwdriver you have; the Torx 6 worked fine for me. It should enter in one of the many holes composing the grid. Use it as a lever to ploy the grid a little bit. You may catch it with your fingers and that's it.

Be carefull not to damage the hole by a too strong leverage.

much more safer to use duct tape, instead of torx 6. (glue it along the length of the grid and pull). it will loose instantly and smooth;)

Anyone know a guide to replace the plastic piece this screw connects to? I accidentally forgot this step - went to remove the front bezel and bent the plastic piece the access door connects to.

A good alternative to the two heavy duty suction cups is a regular household plunger.

Also, 2" wide packing tape. Maybe a 6 or 8" piece, folded in the middle to give you say, a 1-2" "handle". Make a pair of these. They look like a capital T but with a short vertical part (the handle), and a wide top I the sticky wings). Get the good 3M tape, it's strong, and it peels off clean without leaving any glue from the screen.

for me one household plunger did the trick!

Another approach that worked for us was to get 4 small plastic wedges (the kind used in iphone screen replacements). Working one corner at a time you can use a cheap suction cup to pry just that corner up enough to slide the wedge in. Then proceed to the next then next, etc. Once all 4 have the wedges under them the glass should be away from the body all the way around, then just carefully lift it the rest of the way up.

I would strongly suggest taping the screws down on a piece of paper towel or cloth in the same order you take them out, as there are different lengths in no particular order and they don't all fit into just any hole. Unless you keep track of which hole each screw belongs, there is no other way of knowing. I stress taping because I didn't tape mine down and after bumping the table I was working on they scattered, leaving me to guess.

Even better, use an ice cube tray to keep the screws from each step together.

how about using the magnets near the screws to keep their positions?

Contrary to the pictures, to lift the front bezel off, start at top of the computer screen lifting up while apply a little bit of pressure to the foam in the upper corners of the screen. This will give you the leverage needed to get the bezel to lift up. Be careful to not pull to fast, as the camera cable is still attached.

you'll need to add this step in all the other tutorials about iMac 20" EMC 2210, where it is missing ; they all jump from step 5 to step 6, which is a little annoying...

Easy way to remove bezel, insert the longest screws a quarter turn into the two top most edge screw slots. Use the screws as anchors to press against as you pull the bezel toward you. Then a simple twist to remove the screws, and the rest of the bezel comes off easy.

During reinstallation of the LCD panel, be sure that the iSight microphone cable does not become trapped behind the panel.

I actually didn't have to remove the cable. With the iMac laying on its back, just rotate the front bezel (bottom edge rotating around top edge) so that it's laying upside down, above the iMac. When reassembling, just rotate back into place.

I found this to be the most frustrating thing to remove out of everything under the hood. I had to have my wife use her skinny, smaller fingers to jimmy it up, but the tape kept pulling up and separating from the connector. I was worried that I was pulling in the wrong direction (what do I know about logic boards?) and that the tab was going to come off as it is slick tape. She eventually got it, but she did have to use some force. If you don't have a set of skinny fingers, just be patient and use a little force. I think the instructions should tell you to pull straight UP on the black tab, rather than 'away from the logic board', for those of us that don't really understand the technical components/guts of a computer. Honestly, my wife knows less than I do, but she could have done this as easily as me.

Some extra tools I found to be invaluable in this whole process was canned air (used for keyboards and office dust), a microfiber cloth (preferably the one that came with your iMac if you still have it, but you can get these almost anywhere these days)and one of those soft foam monitor covers to put over the monitor while your friend is holding it up (a soft sheet or towel might work too). If your computer is a few years old like mine, there will be a considerable amount of dust that you will want to clear out (and will fly everywhere anyway). Once you cleared that out and replace the hard drive, wait until you've got the bezel and screws back on before using the canned air and microfiber cloth to make sure all dust and lint is clear of the monitor. This is where the second person will come in handy again. They can wipe while you spray. Get your glass top with suction cups still attached ready and wipe that with the cloth and air as well. While your friend does one last wipe of the glass and then the monitor, put the glass on as soon as possible so no more lint or dust falls onto the monitor. I did this and the monitor looks as beautiful and clear as the day I bought the iMac. It is truly a brilliant and beautiful design by Apple and LG.

In this step, as I lifted the display, there was also a small cord in the front, near the fan, that was connected from the display to the inside panel. As I lifted, it unplugged. Anyone know what this is and where it goes when I put it all back together? Pic of the cord I'm referring to: http://i68.tinypic.com/keubkg.jpg

As Marijn said, there are no disconnectable inverter cables on the 24" iMac, just a single thick cable in the middle of the back that is heavily taped with black electrical tape. I imagine you could remove that and retape, but it seems like it would be more trouble than it's worth. There is definitely enough clearance for someone else to hold the monitor up and away from the hard drive. For this reason, I would not attempt to replace the hard drive on a 24" without another person to help. The monitor is not heavy, and it doesn't take a ton of time to remove the old hard drive. It would also help if one of you has skinny fingers ;-).

Mark them before unplugging so you can reconnect them the right way when reinstalling!
