iMac Intel 24" EMC 2111 AirPort Board Replacement

Geschrieben von: Andrew Bookholt
  • Kommentare: 6
iMac Intel 24" EMC 2111 AirPort Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

Keine Schätzung

Einleitung

Use this guide to replace a broken AirPort board.

  1. LL6ZKkaC1k3fjQpN
    LL6ZKkaC1k3fjQpN
    JFgfEOMMil6Wa6MI

    • Loosen the two Phillips screws securing the access door to your iMac.

    • Both screws remain captive within the access door.

    • Remove the access door.

  2. BMJL1RwW1UZLer3v

    • Remove the following screws along the lower edge of your iMac:

    • Three 6 mm T8 Torx screws

    • One 8 mm T8 Torx screw

    My iMac had four 6mm T8 Torx screws (so not one 8mm screw)

    floor -

    My late 2006 iMac24 also has only 4, 6mm long T8 screws here.

    JC Gidley -

  3. y5CssgvFJhbaVMYI
    y5CssgvFJhbaVMYI
    drlImZCRxMNH1lyG

    • Lay your iMac stand-side down on a flat surface.

    • To lift the front bezel off the iMac, simultaneously:

    • Use your thumbs to press in the RAM arms and hold the iMac down.

    • Use your index fingers to pull the small bridge of material on the front bezel toward yourself.

    • Pull the front bezel up with your index fingers.

    • Once the small bridge of material has cleared the RAM arms, lift the front bezel by its lower edge just enough to clear the bottom edge of the rear case.

    My iMac did not have the "small bridge of material" mentioned, however the bezel just lifted off easily.

    maccentric -

  4. XF5OJ1jfbYqZF6ih
    XF5OJ1jfbYqZF6ih
    le4ypK11ghkRxDiZ
    GfGw4oMrNjgaLQ6x

    • Lift the front bezel off the rear case and rotate it away from the bottom edge of the iMac, minding the camera and microphone cables still attached to its upper edge.

    • The third picture shows the top front bezel brackets and their slots cut into the top edge of the iMac's rear case.

    • Do not completely remove the front bezel, as it is still attached by the camera/microphone cables.

  5. GSfpKTBUIFGSkjyO

    • If necessary, remove the strip of tape covering the microphone cable connector.

    • The microphone connector is located near the inside of top edge of your iMac.

  6. pRRiD1ryQ2F5BETU
    pRRiD1ryQ2F5BETU
    AQWEuC2Se1pw6ah4
    v3MxvKvMpHYtvEM4

    • Disconnect the microphone cable.

    • Disconnect the camera cable by pulling its connector away from the socket on the camera board.

    • The camera cable connector and socket are delicate and easily bent. Remove with caution.

    I found it easier not to remove the cables connecting camera and microphone, but rather to lean the plastic frame agains a pile of books so that it could rest almost vertical avoiding the need to disconnect those two sensitive cables.

    Stefano C -

    I agree that for a simple, quick battery change, don't risk damaging those delicate wires. Ignore Step 6 and instead of disconnecting the mic and camera wires, keep them in place and just have a friend hold the plastic frame up while you change the battery, or prop it up as mentioned by Stefano C above.

    WT Kwok -

    Make sure you double check the new logic board for the presence of the GPU assembly before installing. I stupidly installed a new board without moving the GPU from the old one first. So i guess you can say this guide worked for me twice. :)

    Trevor Kearsey -

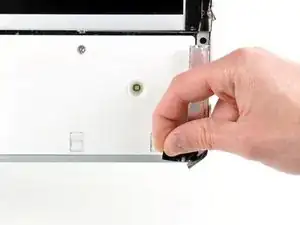

  7. vSwLruUyygrpgWyE
    vSwLruUyygrpgWyE
    hiCfSBc2aRjvLWuZ

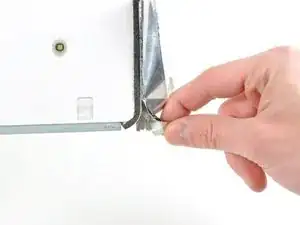

    • Peel back the piece of EMI tape connecting the bottom edge of the right speaker to the metal frame of the iMac.

    • Peel the tape away from the lower corner of the right speaker.

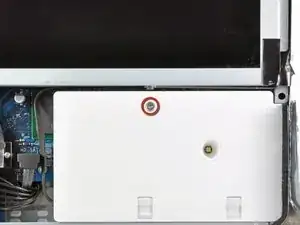

  8. KAnUpMfTBk1oZrwU

    • Remove the 26 mm T10 Torx screw securing the right speaker to the iMac.

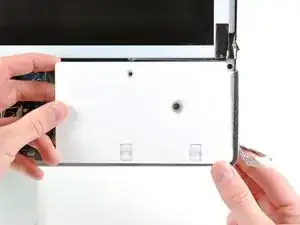

  9. 4Z3RtqYMU4fpMaLT

    • Pull the right speaker away from the logic board and let it hang down from the iMac.

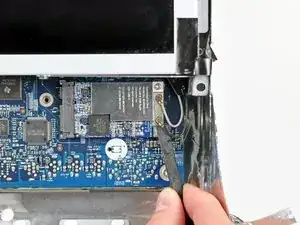

  10. JLoALcRLIZIyVXKo
    JLoALcRLIZIyVXKo
    xDAZkobUUMDFmP6q

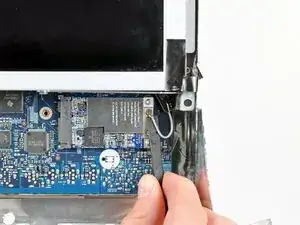

    • Use the flat end of a spudger to pry both antenna connectors off their sockets on the AirPort board.

    • The black antenna connects nearest the bottom edge of the iMac.

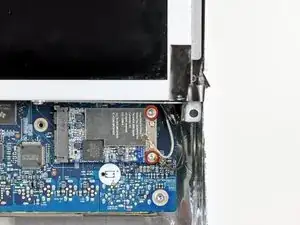

  11. AVkAlleucUeWHF1u

    • Remove the two 5 mm T6 Torx screws securing the AirPort board to the logic board.

    • The AirPort board should lift away from the logic board slightly once the screws are removed.

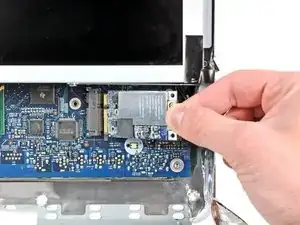

  12. 1Jd1qwsB2islEmno

    • Pull the AirPort board out of its socket and remove it from the iMac.

Abschluss

To reassemble your device, follow these instructions in reverse order.
