iMac Intel 24" EMC 2111 Hard Drive Replacement

Geschrieben von: Andrew Bookholt

Kommentare: 19

iMac Intel 24" EMC 2111 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

1 - 2 Stunden

Einleitung

Upgrade your hard drive for more storage space!

Werkzeuge

Ersatzteile

Schritt 1

Loosen the two Phillips screws securing the access door to your iMac.
Both screws remain captive within the access door.
Remove the access door.

Schritt 2

Remove the following screws along the lower edge of your iMac:
Three 6 mm T8 Torx screws
One 8 mm T8 Torx screw

My iMac had four 6mm T8 Torx screws (so not one 8mm screw)

floor - 23/12/15

My late 2006 iMac24 also has only 4, 6mm long T8 screws here.

JC Gidley - 26/10/18

Schritt 3

Lay your iMac stand-side down on a flat surface.
To lift the front bezel off the iMac, simultaneously:
Use your thumbs to press in the RAM arms and hold the iMac down.
Use your index fingers to pull the small bridge of material on the front bezel toward yourself.
Pull the front bezel up with your index fingers.
Once the small bridge of material has cleared the RAM arms, lift the front bezel by its lower edge just enough to clear the bottom edge of the rear case.

My iMac did not have the "small bridge of material" mentioned, however the bezel just lifted off easily.

maccentric -

Schritt 4

Lift the front bezel off the rear case and rotate it away from the bottom edge of the iMac, minding the camera and microphone cables still attached to its upper edge.
The third picture shows the top front bezel brackets and their slots cut into the top edge of the iMac's rear case.
Do not completely remove the front bezel, as it is still attached by the camera/microphone cables.

Schritt 5

If necessary, remove the strip of tape covering the microphone cable connector.
The microphone connector is located near the inside of top edge of your iMac.

Schritt 6

Disconnect the microphone cable.
Disconnect the camera cable by pulling its connector away from the socket on the camera board.
The camera cable connector and socket are delicate and easily bent. Remove with caution.

I found it easier not to remove the cables connecting camera and microphone, but rather to lean the plastic frame agains a pile of books so that it could rest almost vertical avoiding the need to disconnect those two sensitive cables.

Stefano C -

I agree that for a simple, quick battery change, don't risk damaging those delicate wires. Ignore Step 6 and instead of disconnecting the mic and camera wires, keep them in place and just have a friend hold the plastic frame up while you change the battery, or prop it up as mentioned by Stefano C above.

WT Kwok -

Make sure you double check the new logic board for the presence of the GPU assembly before installing. I stupidly installed a new board without moving the GPU from the old one first. So i guess you can say this guide worked for me twice. :)

Trevor Kearsey -

Schritt 7

Peel the two highlighted EMI shield tabs off the frame of the LCD.

Schritt 8

Remove the two T6 Torx screws securing the display data cable to the logic board.

Wait, we need a T6 screwdriver as well?

I purchased the T8 and T10 from your site as per the parts list above and now am here with an opened iMac on the dining room table unable to continue :/

Stephen Alianiello - 28/05/18

Schritt 9

Pull the black plastic tab attached to the display data cable connector to disconnect it from the logic board.

Schritt 10

Use your fingertips to pull both sides of the wide inverter cable connector out of its socket on the logic board.
De-route the inverter cable from its location next to the CPU fan.

Schritt 11

Before attempting this step, we recommend laying your iMac stand-side down on a table to avoid the display falling down.
Remove the eight T8 Torx screws securing the display assembly to the rear case.
It is helpful to use a thin magnetized screwdriver to remove these screws.

It would be useful to use a torx screw driver with a long, narrow shank… some of these screws are in tight places.

Joe Liscouski - 24/04/19

It may also be useful to prop up the back so it is level. This will prevent the screws from falling inside. They can be retrieved once the scene is off.

John-Francis mergen -

Schritt 12

Remove the display assembly from the iMac.

Schritt 13

Disconnect the SATA data and power cables by pulling their connectors away from the hard drive.

Schritt 14

Disconnect the hard drive thermal sensor cable from the thermal sensor attached to the side of the hard drive.

Since you're going to transfer this to the new drive, I found it easier to disconnect the other end of the temp sensor cable, on the edge of the mobo.

maccentric -

Agree 100% with maccentric. Disconnecting the other end of the temp sensor cable is a much easier way to go on this step.

phil - 03/07/17

Schritt 15

Compress the plastic hard drive retainer by pushing it toward the bottom edge of the iMac.
Pull the top edge of the hard drive slightly away from the rear case.

I found it easier to take out the two torq screws on the plastic holder, in stead of compressing it.

eriktar -

Schritt 16

Lift the hard drive off its bottom retaining posts and remove it from the iMac.

Schritt 17

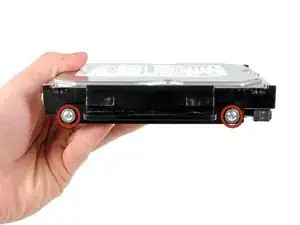

Remove the two T8 Torx screws securing the hard drive bracket to the side of the hard drive.
Remove the hard drive bracket.

Schritt 18

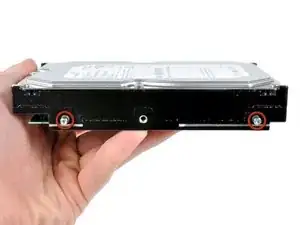

Remove the two T8 Torx retaining posts from the other side of the hard drive.

Schritt 19

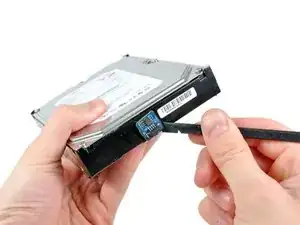

Use the flat end of a spudger to remove the thermal sensor from the side of the hard drive.
Hard drive remains.

Abschluss

To reassemble your device, follow these instructions in reverse order.
