iMac Intel 24" EMC 2111 LCD Replacement

Geschrieben von: Andrew Bookholt
  • Kommentare: 10
iMac Intel 24" EMC 2111 LCD Replacement

Schwierigkeitsgrad

Moderate

Schritte

24

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

Use this guide to replace a broken LCD.

  1. LL6ZKkaC1k3fjQpN
    LL6ZKkaC1k3fjQpN
    JFgfEOMMil6Wa6MI

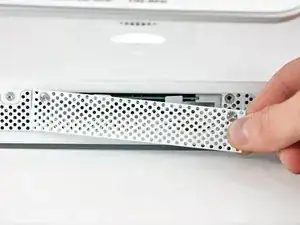

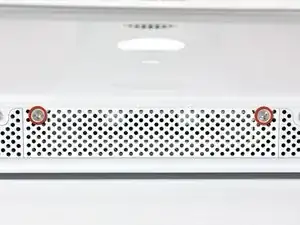

    • Loosen the two Phillips screws securing the access door to your iMac.

    • Both screws remain captive within the access door.

    • Remove the access door.

  2. BMJL1RwW1UZLer3v

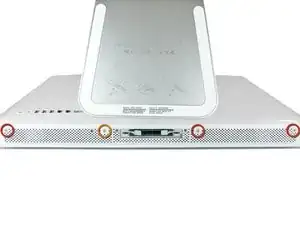

    • Remove the following screws along the lower edge of your iMac:

    • Three 6 mm T8 Torx screws

    • One 8 mm T8 Torx screw

    My iMac had four 6mm T8 Torx screws (so not one 8mm screw)

    floor -

    My late 2006 iMac24 also has only 4, 6mm long T8 screws here.

    JC Gidley -

  3. y5CssgvFJhbaVMYI
    y5CssgvFJhbaVMYI
    drlImZCRxMNH1lyG

    • Lay your iMac stand-side down on a flat surface.

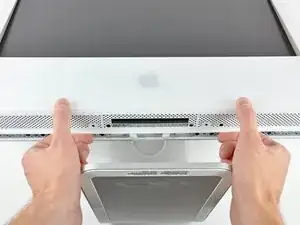

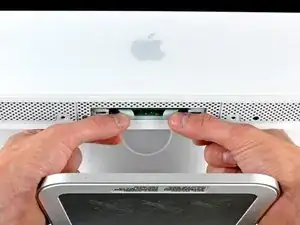

    • To lift the front bezel off the iMac, simultaneously:

    • Use your thumbs to press in the RAM arms and hold the iMac down.

    • Use your index fingers to pull the small bridge of material on the front bezel toward yourself.

    • Pull the front bezel up with your index fingers.

    • Once the small bridge of material has cleared the RAM arms, lift the front bezel by its lower edge just enough to clear the bottom edge of the rear case.

    My iMac did not have the "small bridge of material" mentioned, however the bezel just lifted off easily.

    maccentric -

  4. XF5OJ1jfbYqZF6ih
    XF5OJ1jfbYqZF6ih
    le4ypK11ghkRxDiZ
    GfGw4oMrNjgaLQ6x

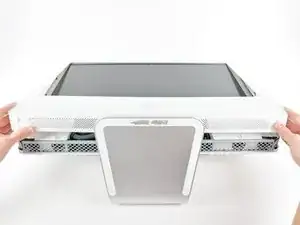

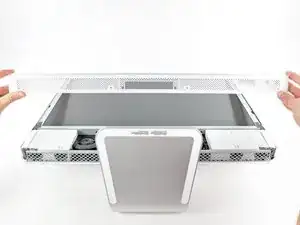

    • Lift the front bezel off the rear case and rotate it away from the bottom edge of the iMac, minding the camera and microphone cables still attached to its upper edge.

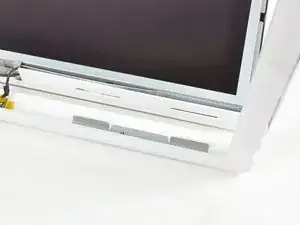

    • The third picture shows the top front bezel brackets and their slots cut into the top edge of the iMac's rear case.

    • Do not completely remove the front bezel, as it is still attached by the camera/microphone cables.

  5. GSfpKTBUIFGSkjyO

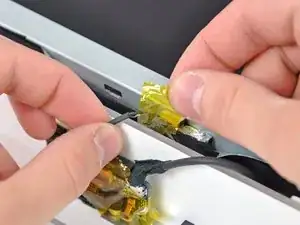

    • If necessary, remove the strip of tape covering the microphone cable connector.

    • The microphone connector is located near the inside of top edge of your iMac.

  6. pRRiD1ryQ2F5BETU
    pRRiD1ryQ2F5BETU
    AQWEuC2Se1pw6ah4
    v3MxvKvMpHYtvEM4

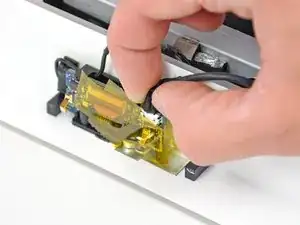

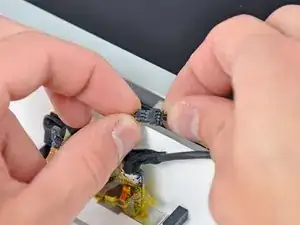

    • Disconnect the microphone cable.

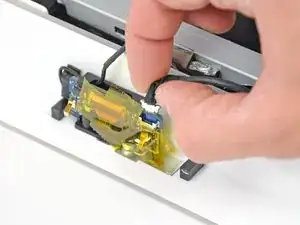

    • Disconnect the camera cable by pulling its connector away from the socket on the camera board.

    • The camera cable connector and socket are delicate and easily bent. Remove with caution.

    I found it easier not to remove the cables connecting camera and microphone, but rather to lean the plastic frame agains a pile of books so that it could rest almost vertical avoiding the need to disconnect those two sensitive cables.

    Stefano C -

    I agree that for a simple, quick battery change, don't risk damaging those delicate wires. Ignore Step 6 and instead of disconnecting the mic and camera wires, keep them in place and just have a friend hold the plastic frame up while you change the battery, or prop it up as mentioned by Stefano C above.

    WT Kwok -

    Make sure you double check the new logic board for the presence of the GPU assembly before installing. I stupidly installed a new board without moving the GPU from the old one first. So i guess you can say this guide worked for me twice. :)

    Trevor Kearsey -

  7. uUBGquKPbFhpIIxR
    uUBGquKPbFhpIIxR
    MdWgVt3W1b2D1t3a

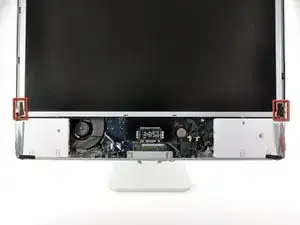

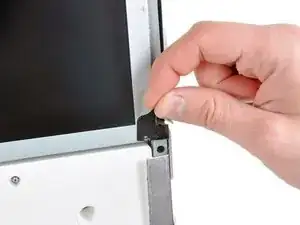

    • Peel the two highlighted EMI shield tabs off the frame of the LCD.

  8. TTTVsccSkGIwqT1W

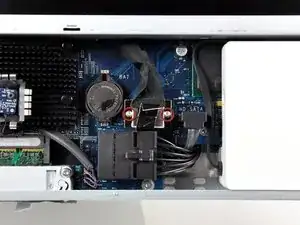

    • Remove the two T6 Torx screws securing the display data cable to the logic board.

    Wait, we need a T6 screwdriver as well?

    I purchased the T8 and T10 from your site as per the parts list above and now am here with an opened iMac on the dining room table unable to continue :/

    Stephen Alianiello -

  9. ex542vRRKQ6cnl55

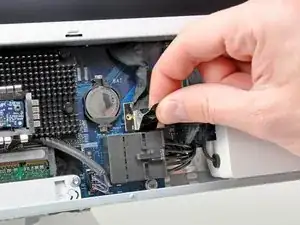

    • Pull the black plastic tab attached to the display data cable connector to disconnect it from the logic board.

  10. lUe11GfWiaoilYqg
    lUe11GfWiaoilYqg
    AamxNAPKOZH2agn4

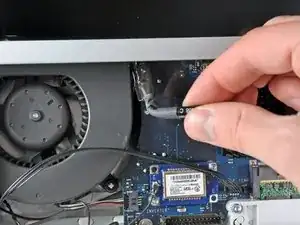

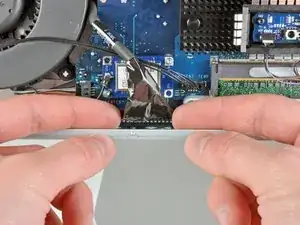

    • Use your fingertips to pull both sides of the wide inverter cable connector out of its socket on the logic board.

    • De-route the inverter cable from its location next to the CPU fan.

  11. lxXhlNXHYirstgFx

    • Before attempting this step, we recommend laying your iMac stand-side down on a table to avoid the display falling down.

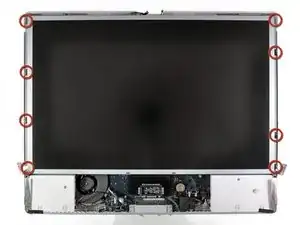

    • Remove the eight T8 Torx screws securing the display assembly to the rear case.

    • It is helpful to use a thin magnetized screwdriver to remove these screws.

    It would be useful to use a torx screw driver with a long, narrow shank… some of these screws are in tight places.

    Joe Liscouski -

    It may also be useful to prop up the back so it is level. This will prevent the screws from falling inside. They can be retrieved once the scene is off.

    John-Francis mergen -

  12. YmtqPI1UP1aEZ3pX

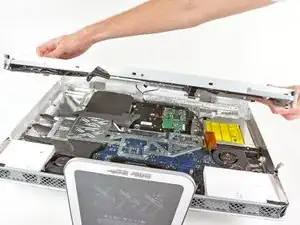

    • Remove the display assembly from the iMac.

  13. TYhZDUX6Oc2CkEjC

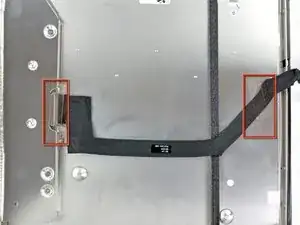

    • Remove the two pieces of tape securing the display data cable to the back of the display.

  14. RZZZ2gyPo5fXv6GK

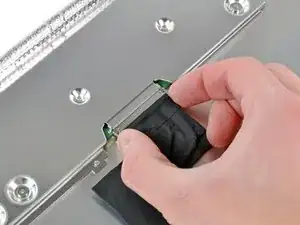

    • Squeeze the two retaining arms together and pull the display data cable connector out of its socket.

    • Pull the cable parallel to the rear face of the LCD. Pulling upward may damage the cable and/or the LCD.

  15. WEZqrg4JmPNPABqI

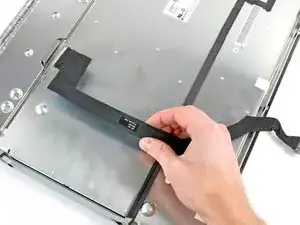

    • Remove the display data cable.

  16. iLlEabXeXht4HXfi

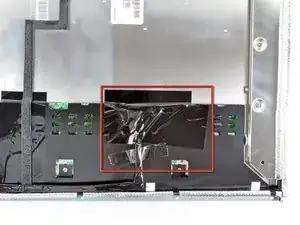

    • Remove the large piece of tape covering the inverter cable connector and any tape securing the cable to the inverter board.

    Might be worth noting that the white squares on the board are tape also; I didn’t realise this until I struggled with a later step, so you’ll need to carefully peel these pieces of white tape back before continuing.

    Haravikk -

  17. osHtZcLgZZkGDHAT

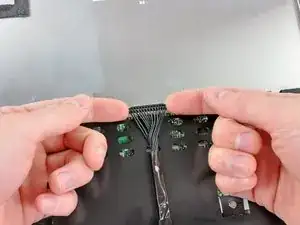

    • Lift the inverter cable connector straight up from its socket on the inverter board.

  18. PBDSDHImgZ4dHiwT

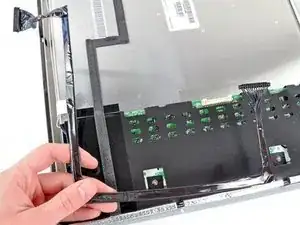

    • Remove the inverter cable from the LCD.

  19. Mgdp4aHMif4nGXVA

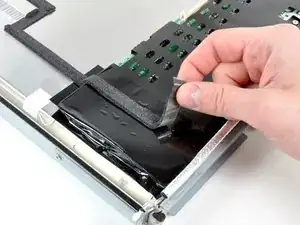

    • Peel the strip of foam tape off the inverter board.

  20. eoIYUjAfKT2q1t4U

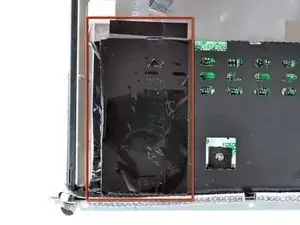

    • Remove the large piece of black tape covering the side of the inverter board.

  21. DMYRDnakVWkENPrn

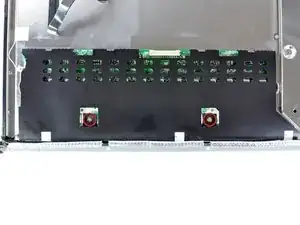

    • Remove the two Phillips screws securing the inverter board to the back of the LCD.

  22. XHUuKU4qUjaVbJMK

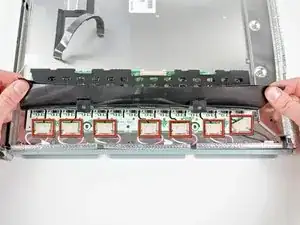

    • Carefully lift the black cover off the inverter board from the side closest to the edge of the LCD.

    • Disconnect the seven locking connectors from the side of the inverter board.

  23. QmPN6CtMJheXbNA4
    QmPN6CtMJheXbNA4
    MI5SdEO2aMZEY6LI

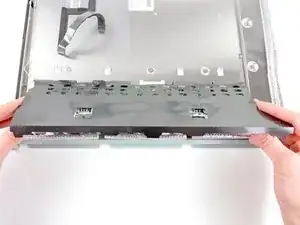

    • Lift the inverter board off the LCD.

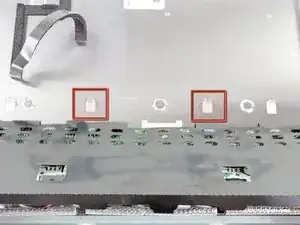

    • When reinstalling the inverter board, be sure to push the board under the two tabs nearest the center of the LCD before lowering it down into place.

  24. Tna1R12KlXfr3tC2

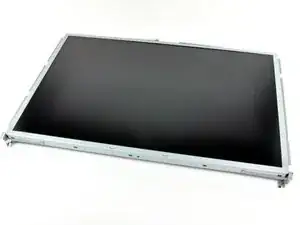

    • LCD remains.

Abschluss

To reassemble your device, follow these instructions in reverse order.
