Einleitung

Use this guide to replace a damaged microphone.

  1. LL6ZKkaC1k3fjQpN
    LL6ZKkaC1k3fjQpN
    JFgfEOMMil6Wa6MI
    • Loosen the two Phillips screws securing the access door to your iMac.

    • Both screws remain captive within the access door.

    • Remove the access door.

  2. BMJL1RwW1UZLer3v
    • Remove the following screws along the lower edge of your iMac:

    • Three 6 mm T8 Torx screws

    • One 8 mm T8 Torx screw

    My iMac had four 6mm T8 Torx screws (so not one 8mm screw)

    floor -

    My late 2006 iMac24 also has only 4, 6mm long T8 screws here.

    JC Gidley -

  3. y5CssgvFJhbaVMYI
    y5CssgvFJhbaVMYI
    drlImZCRxMNH1lyG
    • Lay your iMac stand-side down on a flat surface.

    • To lift the front bezel off the iMac, simultaneously:

    • Use your thumbs to press in the RAM arms and hold the iMac down.

    • Use your index fingers to pull the small bridge of material on the front bezel toward yourself.

    • Pull the front bezel up with your index fingers.

    • Once the small bridge of material has cleared the RAM arms, lift the front bezel by its lower edge just enough to clear the bottom edge of the rear case.

    My iMac did not have the "small bridge of material" mentioned, however the bezel just lifted off easily.

    maccentric -

  4. XF5OJ1jfbYqZF6ih
    XF5OJ1jfbYqZF6ih
    le4ypK11ghkRxDiZ
    GfGw4oMrNjgaLQ6x
    • Lift the front bezel off the rear case and rotate it away from the bottom edge of the iMac, minding the camera and microphone cables still attached to its upper edge.

    • The third picture shows the top front bezel brackets and their slots cut into the top edge of the iMac's rear case.

    • Do not completely remove the front bezel, as it is still attached by the camera/microphone cables.

  5. GSfpKTBUIFGSkjyO
    • If necessary, remove the strip of tape covering the microphone cable connector.

    • The microphone connector is located near the inside of top edge of your iMac.

  6. pRRiD1ryQ2F5BETU
    pRRiD1ryQ2F5BETU
    AQWEuC2Se1pw6ah4
    v3MxvKvMpHYtvEM4
    • Disconnect the microphone cable.

    • Disconnect the camera cable by pulling its connector away from the socket on the camera board.

    • The camera cable connector and socket are delicate and easily bent. Remove with caution.

    I found it easier not to remove the cables connecting camera and microphone, but rather to lean the plastic frame agains a pile of books so that it could rest almost vertical avoiding the need to disconnect those two sensitive cables.

    Stefano C -

    I agree that for a simple, quick battery change, don't risk damaging those delicate wires. Ignore Step 6 and instead of disconnecting the mic and camera wires, keep them in place and just have a friend hold the plastic frame up while you change the battery, or prop it up as mentioned by Stefano C above.

    WT Kwok -

    Make sure you double check the new logic board for the presence of the GPU assembly before installing. I stupidly installed a new board without moving the GPU from the old one first. So i guess you can say this guide worked for me twice. :)

    Trevor Kearsey -

  7. K4AAnTrBbUvWBSxO

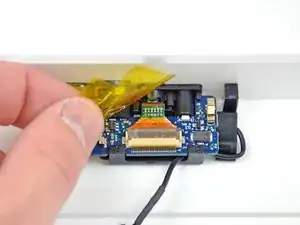

    • If necessary, remove the strips of tape covering the camera board.

    • Don't forget to reapply tape to the face of the camera board to avoid electrical shorts.

  8. fBYWhV2pfgiEQEgG
    fBYWhV2pfgiEQEgG
    LArK3CH5JtLIpNDk

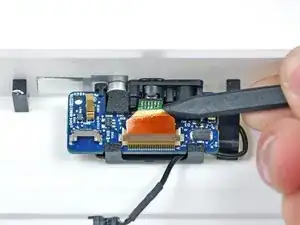

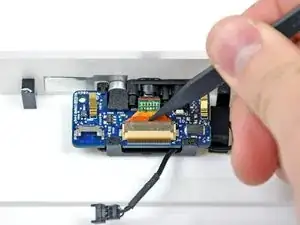

    • Use the tip of a spudger to flip up the camera ribbon cable retaining flap.

    • Flip the tab away from the front face of the front bezel.

    • Use the tip of a spudger to pull the camera ribbon cable away from its socket on the camera board.

  9. QHjtM1rBSRTFu4vh
    • Rather than being held down by screws, the camera board is held down by a black plastic bracket attached to the front bezel.

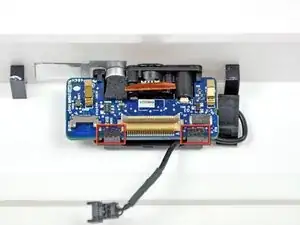

    • In the next step, you will rotate the two black retaining clips (shown in red) away from the camera board to free it from the front bezel.

  10. suoZrQe4HHjwcPed
    suoZrQe4HHjwcPed
    wX4CsfWGJxDUBrcG

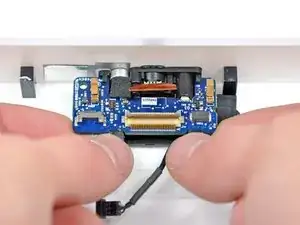

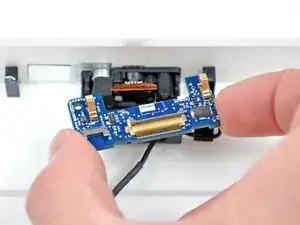

    • Use your thumbs to simultaneously rotate both retaining tabs away from the camera board while pushing the board up from either side with your index fingers.

    • Remove the camera board from the front bezel.

  11. YYVIhkTjVCToOVBZ
    • Use the tip of a spudger to remove the foam bumper covering the microphone.

  12. RQEVbaHfLnZoR5cR

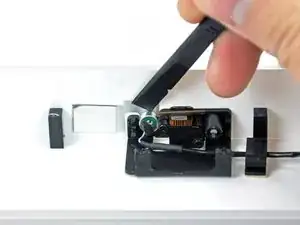

    • Use the flat end of a spudger to pry the microphone off the adhesive holding it to the front bezel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
