iON SnapCam 1045 Wearable HD Video Camera Motherboard Replacement

Geschrieben von: Jessica Matias
  • Kommentare: 0
iON SnapCam 1045 Wearable HD Video Camera Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

In this part of the guide I am going to tutor you on how to replace the camera motherboard.

  1. IPgIjJTfc1pKBhQY

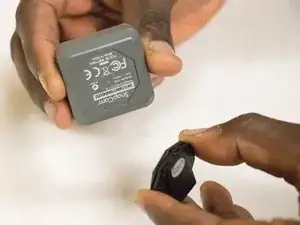

    • Detach the magnetic clip from the bottom of the camera.

    • The magnetic clip gets in the way of disassembly because it constantly spins and therefore a distraction so it is imperative to detach.

  2. AtfdQuKEMFoVhrCr

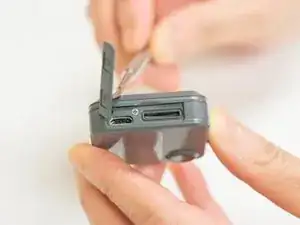

    • Use a spudger to gently detach the memory card and USB slot cover.

  3. CMCsnMpthspujvkF

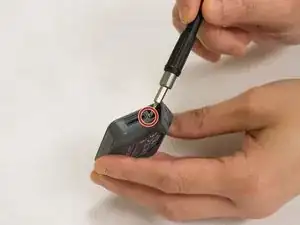

    • Use a Phillips #000 Screwdriver to loosen the 0.008 mm screw located between the USB and memory card slots.

    • This screw is really tiny and can easily fall off and get lost! Make use of a magnetic mat to hold it in place or better still put the magnetic clip to use for keeping the screw safe.

  4. bttMuETmOTu2jFdG
    bttMuETmOTu2jFdG
    5IoC5uXJIYN3lHhK

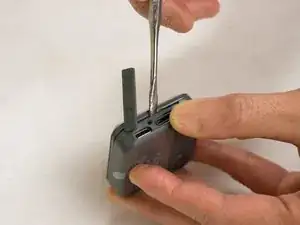

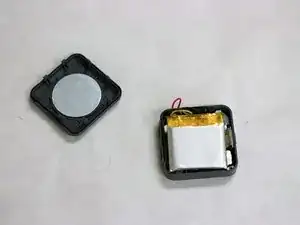

    • Once again use the spudger to gently open the encasement.

    • The case is a little fragile and forceful entry could lead to damage of the plastic case. Thread carefully.

    • The Battery can be safely detached and replaced.

  5. prWVkT24PSd1mqWJ

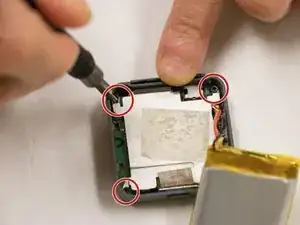

    • To get to the motherboard, safely lift the battery to expose an Aluminium plate that shields and holds the motherboard in place.

    • The plates are held down by four Phillips 0.008 mm screws on all four corners. Use a Phillips head #000 to safely loosen the screws.

  6. LMjFOrS61JweHJvi

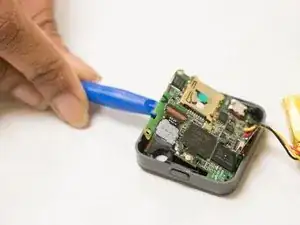

    • To replace the motherboard gently insert a plastic opening tool into one end and lift up.

    • Be careful to avoid inserting material that is rough and too sturdy as it can damage components on the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
