Einleitung

  1. G1vVkdUZ5T5KbihN
    G1vVkdUZ5T5KbihN
    Tlv13eQunZRBdtRt
    • Remove any external skins placed on the device. To do so, simply lift up and peel to remove.

  2. I3NxlKMKu6ZEP1SJ
    • Firmly pull on the back clip in order to remove.

  3. ZtWUxVCCXaUO6vAD
    • Use a Phillips head screwdriver to remove the four 4mm PH00 screws located on the sides of the device. All screws are located under each of the grey covers for the microSD card and the microUSB insert.

  4. lvV6X6JQgBayRDVG
    lvV6X6JQgBayRDVG
    EwHkMnIcAtUH4qZO
    KCmVuqnNSFa5eASA
    • Grab a metal or plastic opening tool and insert it into the middle slot on the bottom of the camera and lightly pry open.

    • Locate the camera lens in the bottom left-hand corner of the picture which can be replaced by replacing the entire cover. The back of the cover is also shown. The camera is now located in the top right-hand corner of the picture.

  5. M3bXHXI62f4HQYDp
    • Using the nylon spudger, pop up the edges of the motherboard.

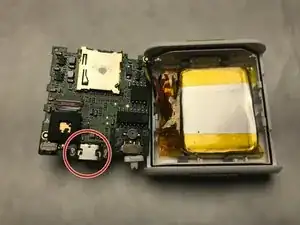

  6. FJxArRaV1QVGdLq2
    • With the Micro USB port exposed, part can be replaced with advanced soldering and circuitry.

Abschluss

To reassemble your device, follow these instructions in reverse order.
