iPad Air 3 Screen Replacement

Geschrieben von: Mark D Schlossman
  • Kommentare: 0
iPad Air 3 Screen Replacement

Schwierigkeitsgrad

Difficult

Schritte

11

Zeitaufwand

1 - 2 Stunden

Einleitung

  1. PghH4KQZHDPwRPVS
    PghH4KQZHDPwRPVS
    XDKcgJPJPEbgKG3g

    • Cracked near home button its important to not break home button flex cable

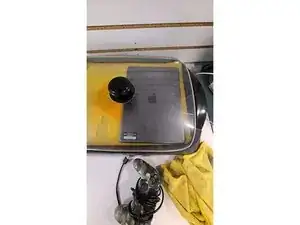

    • Apply heat to the screen! Do NOT SKIP THIS STEP

    • Make sure to turn it off if you can to prevent breaking the backlight filter

  2. Pry with splicer around the edges

    • Pry with splicer around the edges

    • Display cables are on the bottom of screen opening up like an upside-down note pad

  3. ZVWeh4pUqQYIUhdM

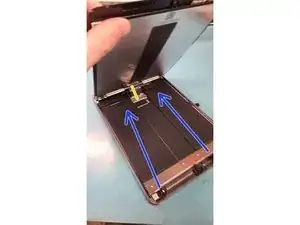

    • Lift from the top like so

    • Display Cables

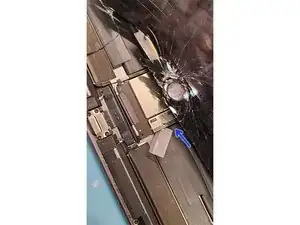

  4. stSlnlBj1b1ugRkn
    stSlnlBj1b1ugRkn
    bVILYeocbSWKsSpl
    S4IYVcaZtrhFsMBv

    • Set screen up a little bit to get to power connection

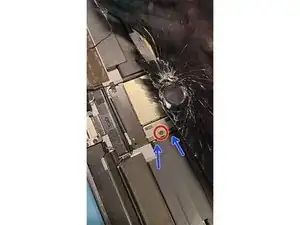

    • Power connection has PH000 screw holding it together

    • Slide a card under connection

    • Its very important to disconnect battery try turning it on make sure it is off to avoid further damage to ipad

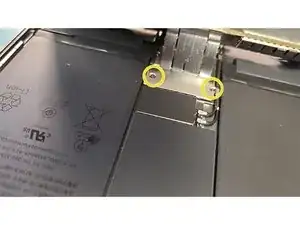

  5. xHaOYKgcWhG3BDxV
    xHaOYKgcWhG3BDxV
    1UaIndFx5UuvX63u

    • Lift display back up to get to the display cables

    • Unscrew 2 PH000 Screws from display cable bracket

    • Use the flat end of plastic spudger to lift off connections

    • There is 4 flex cables that need disconnecting

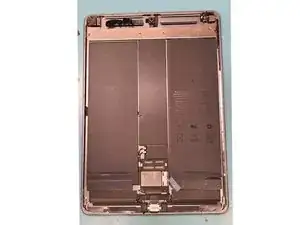

  6. Xxlnyk2MEk4R5ejj
    Xxlnyk2MEk4R5ejj
    1LnsvXYe2MioLnlC
    CwSqjR2VC1GfVgog

    • Whoohoo we got it off now clean the edges for any broken glass

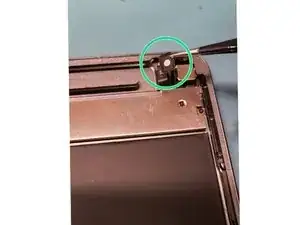

    • Keep track of rubbers covering proximity light sensor on the top

    • Light covers place on top of proxmity sensors

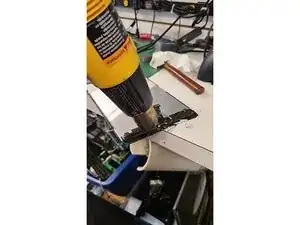

  7. FLLOgOdBvpYpGcuE
    FLLOgOdBvpYpGcuE
    FTRbLbWATli3fu6J
    hZX12s3aOEBtVBSi

    • APPLY HEAT TO HOME BUTTON 15-20 Seconds should do the trick

    • If heat is not applied you might break the home button along with the touch ID. If you replace the home button touch ID will not work anymore

    • Take of home button flex cover

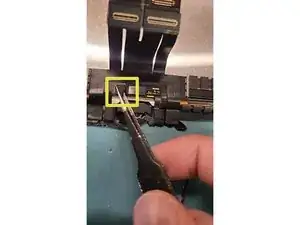

    • Use flat end of spudger to pry up home button flex connector

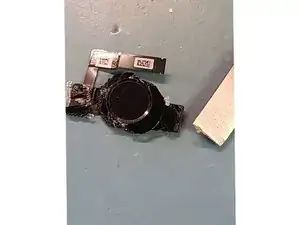

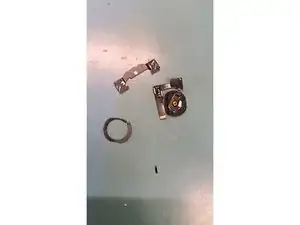

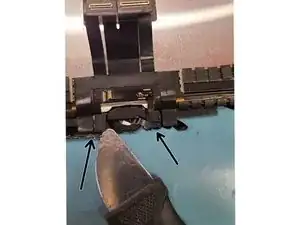

  8. nCIcj1an5UjGanKU
    nCIcj1an5UjGanKU
    4V6fG6vFKBysDPnw
    1yZqONVxid3lNX2g

    • Reapply heat if you spent to much time getting flex unhooked

    • Pry with splicer under the home button bracket car

    • Clean glass around gasket

  9. nNYwn2xkUG3gTecI
    nNYwn2xkUG3gTecI
    SmieCOXeR1XWdEKV

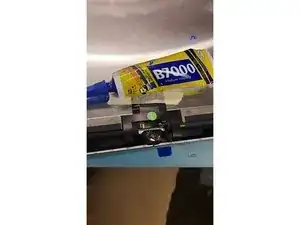

    • Install home button on new screen I recommend using liquid adhesive for this!

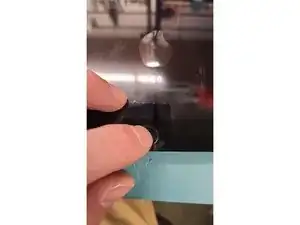

    • Push the home button a couple of times to make sure it stills on and make sure it is clicking!

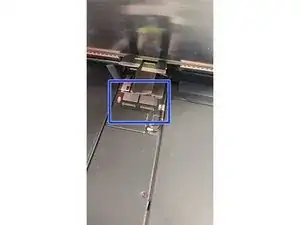

  10. cDXJtOadp4ISWVHt
    cDXJtOadp4ISWVHt
    QeuyXiulinufdApd

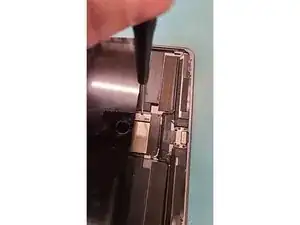

    • Connect all 4 Flex cables to the logic board!

    • Now at the bottom of the new screen screw in the battery connection to test the new screen!

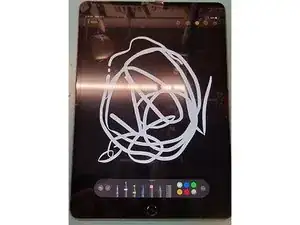

  11. AGHC5STahZAEd65g

    • Test screen drawing on the notes make sure it works!

    • Adhere new screen with preinstalled adhesive and clap it!
