This is the teardown for a Clamcase for iPad 2.

  1. hKnVGmMJBRlVDGy6
    hKnVGmMJBRlVDGy6
    HUhvVjUKovDNUWXZ

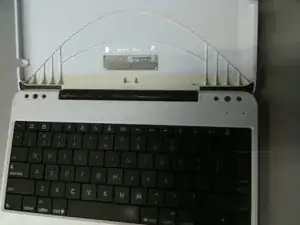

    • You can skip the first 2 steps if you don't want to detach the upper and keyboard covers from each other.

    • Open the case and unpeel the 2 black stickers in the top corners of the keyboard.

    • This will reveal the 6 screws that attach the upper cover to the keyboard cover.

  2. hpnbJ6TyJN1d34ui
    hpnbJ6TyJN1d34ui
    W6SAHUIgyuZGpU1X

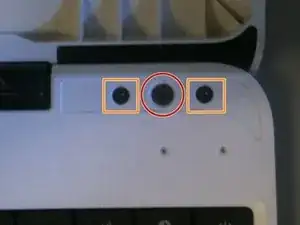

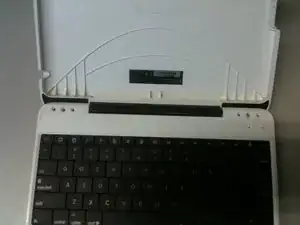

    • Use the T9 Torx screwdriver to unscrew the 2 bigger screws in the middle of each side.

    • Use the T6 Torx screwdriver to unscrew the remaining 4 screws.

  3. LMfNhn4dRcWaDNV4
    LMfNhn4dRcWaDNV4
    2LBoFEfiESkyD2cX

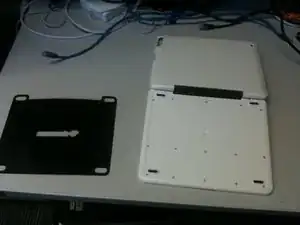

    • Turn the keyboard cover over so the bottom is facing up. Manually remove the thin black covering that is attached to the bottom.

    • Be patient, the thin black covering might be really stuck to the bottom.

  4. kSvCXmMyMfuxIq6C

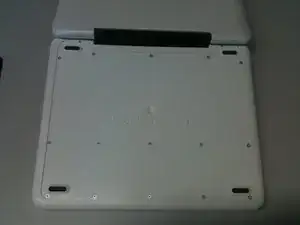

    • Once the thin black covering is removed, you will see 15 screws.

    • Use the T6 Torx screwdriver to remove the screws.

  5. eihYrHP24kTKu62m

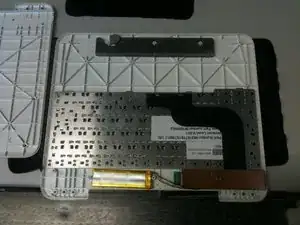

    • Once the screws are removed, lift off the bottom panel to access the keyboard and battery.

  6. dQsT5HU1Av2sOYsY

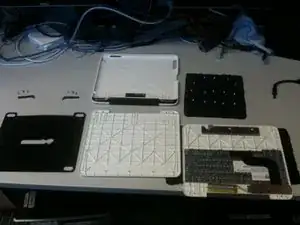

    • You are done.

Tinte & Feder

Izmet Barranco

Mitglied seit: 12/12/12

213 Reputation

2 Kommentare

Awesome! I used this guide to disassemble my clam case and repair some nonfunctional keys. Thanks!

justin duff -

Thanks for the dis-assembly guide. Justin, what did you have to do to fix the keys that were not working. I have on with a few keys not working, not even intermittently.

dick haynes -
