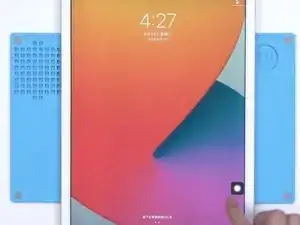

    • The screen of the iPad Pro 1st Gen won’t respond to touch. Next, let’s check out how we fix the problem. Turn on the iPad Pro. The screen won’t respond to touch.

  2. LMXCFXeirYsYYeYi
    LMXCFXeirYsYYeYi
    qrtVH55IwwjyviEJ
    V5UnSidfvyVddTOg

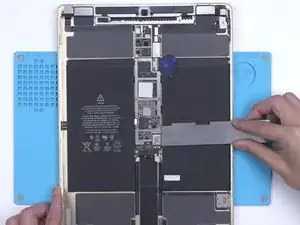

    • Then we disconnect the display.

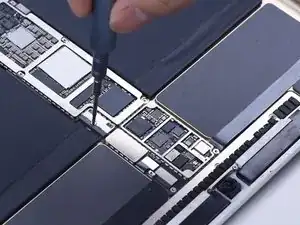

    • Remove the battery screw on the motherboard.

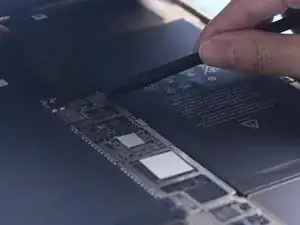

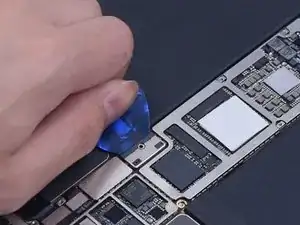

    • To prevent the circuit from burning out, insert a pry piece to block the battery from the motherboard.

  3. XSYfYOTGEqwFf4Bo
    • Install a known-good display. The screen still won’t respond to touch. It can be judged that the unresponsive problem is not caused by a damaged display. The motherboard fault has resulted in the problem. In the first place, we check the touch connectors to see if they are deformed or damaged. It can be seen that the connectors are good.

  4. ZJtLrqdWrJDBbAK4
    ZJtLrqdWrJDBbAK4
    mMdaeBceCSO5hOmR
    5PlbbYuHnEXF3ao3

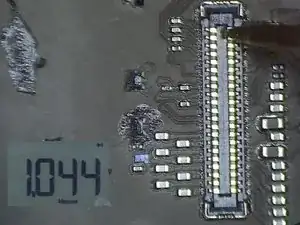

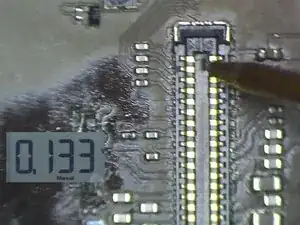

    • Then we measure the resistance values of the touch connector. The resistance values of pin 2, pin 4, and pin 6 are found to be too large. According to the diagram, the normal value should be around 144.

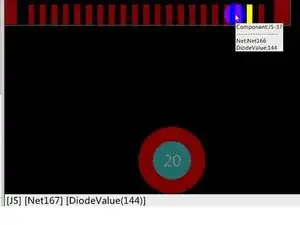

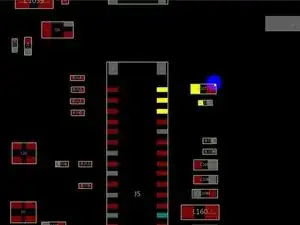

    • Open the circuit diagram. The three pins are connected to the chip through one inductor.

    • Measure the resistance value of circuit connecting the inductor to the chip. The value is normal.

  5. HTQFYtD2BBMwAtXh
    HTQFYtD2BBMwAtXh
    SpxR4Z3Sg6NjTliS

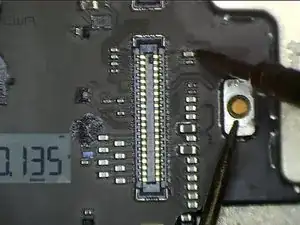

    • Then measure the resistance value of another end connecting the inductor to the touch connector. The value is abnormal.

    • Therefore, it can be judged that the inductor is damaged.

    • A damaged inductor is generally caused by improper operation that involves installing the display while the battery is connected to the motherboard. So we must disconnect the battery firstly when we install the display.

    • Next, we replace the inductor. Pry the motherboard slightly to prevent the heat from dissipating fast.

  6. Pgul2PeNNtUujC3V
    Pgul2PeNNtUujC3V
    RTINgfDkbDWPw4Xu
    2RYmGbiYihE2vfph

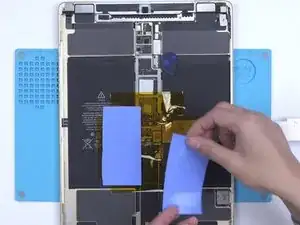

    • Apply high-temperature tape and insulation mat.

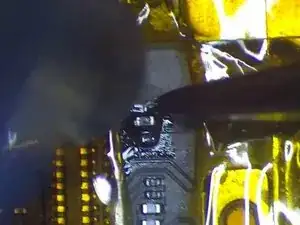

    • Apply some paste flux. Heat with Hot Air Gun at 360 °C and airflow 2 to remove the inductor. Apply some middle-temperature solder paste. Keep heating with Hot Air Gun to lower the melting point of the bonding pad.

    • Remove large pads with solder wick. Get an inductor from an abandoned board. Heat with Hot Air Gun at 330 °C and airflow 2 to solder the inductor. Clean with PCB Cleaner.

  7. DFkP4qvMOB52BmD2
    DFkP4qvMOB52BmD2
    ZrraDDPeMlyEU3oH
    5MXfCLUvyGuuvexq

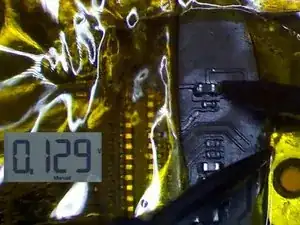

    • Measure the resistance values of the inductor and touch connector. The values are normal. Then we install the screen to test. Both the touch and 3D Touch function well. The unresponsive problem of the iPad Pro has been successfully fixed.
