iPhone 3G Power Button Replacement

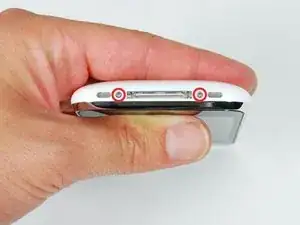

I highly recommend using a slew of refrigerator magnets to hold the screws for each step. I also used post its to label each step, making reassembly a snap.

In the end, I was able to successfully replace the jack, but they weren't kidding when they said it was difficult.

ok, I did it but the vibration stopped working… I don’t know why. Is there a way to fix it?

Be very very careful with this step. The back of connector 4 (barely visible in the Step 2 photo) was stuck just enough to the back of the display unit to shear the connecter cable right in two when I separated the phone. Ack!

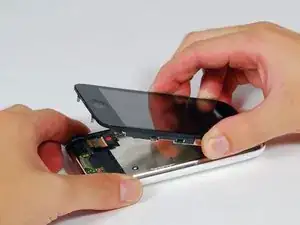

Be really careful at this point not too pull too hard when you're trying to get the screen out - I did, the screen came out suddenly and I pulled all the connectors off :/

put your fingers at power button end of phone, resting on edge of glass/bezel you can use them as lever so when you pull on suction at other end you don't need to apply much pressure and the cables underneath aren't ripped off

As a help to doing this step, put your thumb/fingers around the phone around the middle so it's cradled in your hand. Keep your fingers wrapped around and resting gently on the top of the screen with your thumb and the first few fingers. See how his thumb is sitting on the edge like that, but ready to 'catch' the screen when it comes up? Do that with your thumb and the tips of your fingers on the other side.

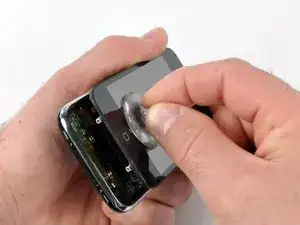

Now carefully use the suction cup to 'walk/rock' the screen out with a left-to-right while pulling up motions. With your fingers gently clamped around the phone and providing a little pressure on the edges overlapping the screen when the screen comes out, they'll catch the screen before you pull it up too far and yank the cables out.

I was very careful, but not careful enough removing the display with a suction cup, and Everything came unplugged in an instant. CAUTION: Pull with the suction cup near the round button, AND ALSO have someone else support the other end of the display so that only the end of the display with the round button comes out. I was very lucky.

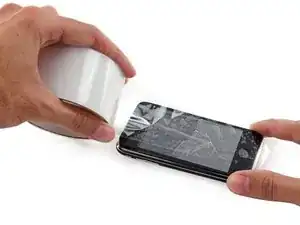

I put on a piece of duct tape on the Iphone where the Sim tray is. Keeps the display assembly in place preventing cable damage.

I used some insulation tape to wrap around the top of the phone so this was secure to prevent yanking the whole screen off. This was very effective as my screen was pretty jammed into the case so need extra leverage using the metal ring on the screen sucker

I had no grip at all on the suction cup with my fingers. Problem solved by inserting the screw driver in the s-cup, which gave just the right leverage to control pulling loose the display assembly.

Zitat von Turbo Fredriksson:

Aparently #3 is 'Earpiece & Proximity Sensor'.

Found the thread: What Ribbon "1" and "2" and "3" do?

1. Ribbon #1: Runs the LCD

2. Ribbon #2: Runs the digitizer

3. Ribbon #3: Earspeaker and various sensors on the iPhone face

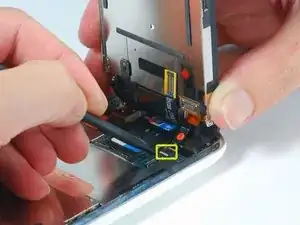

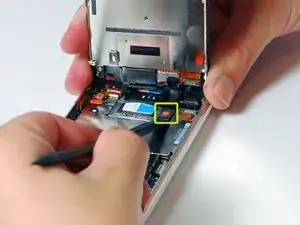

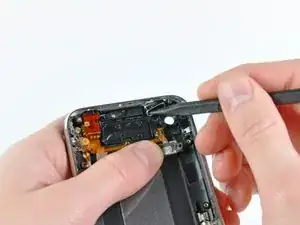

Note that The connectors have a rubber-like Top surface. Make surre The spudger is inserted underneath that rubber piece. To disconnect, The connector ha to lifted upwards from the PC-Board (i.e. Orthogonally from the electronics board, as opposed to being moved sideways). holds true for all of those connectors, except for the one with the flip-tab.

I had more joy using a home-made spudger from a bamboo skewer. Being thinner, it can release the connectors from the end rather than a side or corner. (I also tried all the different spudgers made by Menda Tools.)

I already gave up on this step:-)

I should also note that I used a little flat head screwdriver when lifting the flip tab and the narrow pressure point is what cause it to split. Should of used a spudger.

I bought my black iPhone a full housing white cover off ebay. No phone shops seem to be able to change it for me.

If I follow this guide, will I be able to pull my phone apart, change the covers and put it back together?

That is, once I pull the phone apart, will it work properly once I put it back together again?

Zitat von kristymic:

I bought my black iPhone a full housing white cover off ebay. No phone shops seem to be able to change it for me.

If I follow this guide, will I be able to pull my phone apart, change the covers and put it back together?

That is, once I pull the phone apart, will it work properly once I put it back together again?

Yes, if you take care and follow the instructions to the letter.

How on earth do I get the black ribbon cable back into its connector???

Zitat von Cor Berkelaar:

How on earth do I get the black ribbon cable back into its connector???

Cor, You have to slide the little bar on the connector away from the body of the connector before you can insert the ribbon cable into it. I know it's tight quarters, but even my meat hooks were able to finally get it inserted. The 'trick' is that once you have inserted the cable into the body of the connector, quickly slide the bar back toward the body as this will lock the cable into the connector. I hope this is helpful.

David

Is there a way of replacing the connector?

i have torn the top of the connector......... would that be the reason that the iPhone would not start even though the ribbon is in the connector and fastened secured with the white plastic tab is down.

I HAVE DONE IT GUYS SO THANK YOU.

Zitat von Vishal Vaidya:

Is there a way of replacing the connector? i have torn the top of the connector......... would that be the reason that the iPhone would not start even though the ribbon is in the connector and fastened secured with the white plastic tab is down.

Zitat von Vishal Vaidya:

Is there a way of replacing the connector?

You could replace it. That's what I'll have to do. Luckily my brother is great with soldering surface mounted components.

But if you had to ask if it can be replaced, you don't have knowledge to do it yourself! It's VERY difficult! Look among your friends or the 'Net. I found quite a lot of forums where they talk about the difficulty on replacing SMD's. Just mail one of them that seem to know what they're doin'...

Zitat von cliffcurtis:

if anyone knows where to buy a replacement flip tab, that'd be cool too :)

http://www.earth2k.com/fpc-ribbon/

http://cgi.ebay.com/ws/eBayISAPI.dll?Vie...

I'm currently waiting for mine... :)

[quote|I'm currently waiting for mine... :)[/quote]

And my younger brother managed to replace it with only a couple of minutes whining about it's size :).

Works just fine now (exept that I can't seem to turn the darn thing off, even though I've also replaced the button harness!)

I have torn the top of the connector too and the iPhone is not starting.. Was that the reason? Did it work after replacing the connector?

Zitat von Vishal Vaidya:

Is there a way of replacing the connector? i have torn the top of the connector......... would that be the reason that the iPhone would not start even though the ribbon is in the connector and fastened secured with the white plastic tab is down.

Zitat von lolsen4:

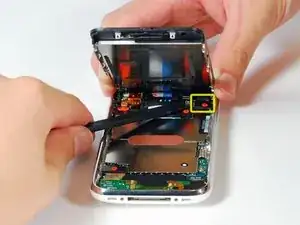

On my 3G, the piece that flips up on the #3 connector was black and the connector itself was white, seemingly opposite of the pictures. I mistakenly tried to pry up the wrong piece, but fortunately didn't do too much damage before I realized this. My phone was replaced on warranty in February so this must be the case in some newer 3G's.

Maybe it adds Value to the explanation to say that the piece that needs to be flipped up is located on the opposite side of where the ribbon cable exits the connector. It needs to flip upwards towards the ribbon cable.

My confusion was to identify which connector I have in my phone, since everything in there is so tiny that it is hard to identify which is which. Maybe a zoom-in on the connector with the tab flipped up would be a good addition to the instructions also.

I accidentally lost the black plastic tab (mine was black) when I was removing the ribbon cable. I managed to get the ribbon cable back into the white connector and the phone seems to be working fine. Is this going to be a problem?

Note: You cannot slide the black ribbon connector back into place unless the lock is flipped open (up)--see the instructions on replacing a broken screen for images)

The tab (black in my case) is the thin horizontal plastic piece opposite where the ribbon is inserted. Use the spudger in the center, approaching from the bottom side of the phone, and it flips up easily.

Be VERY careful when working with ribbon 3. I thought I was but when I got the phone back together the earpiece didn't work. While doing research to find out why, I discovered that ribbon 3 is very delicate and easy to damage. I'm now waiting for a new one... if I can't fix it, I'll have to get a new phone since I can't see myself hearing only via Bluetooth or speakerphone.

When re-inserting the #3 connector how much force does it take to get the connector fully inserted? How can I tell whether it is fully inserted?

Be very careful, in some cases the ribbon damages. After this damage the proximity sensor won't work anymore.

I think that this is where the problem is. I must have one of the unique (Chinese) versions and while trying to lift up, I should have been sliding back. It is too difficult to see. Mine broke off and crumbled and now the screen has a dead spot.

That step also had me thinking & reading for quite a while. Maybe a close-up picture of the connector might be helpful, seems that a lot of people screw up badly here.

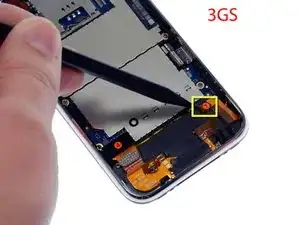

My American 3GS white connector did not flip open. It split into 3 little pieces of white plastic when I tried lifting it with the spudger. The plastic seemed very brittle; the phone is 4 years old. Amazingly to me, I was able to slide the flex tail back in to position and it made all the necessary electrical contacts (at least for the time being). Wi-fi cable #6 was not properly seated after first assembly, but everything is working now! Thank for the help.

Dennis Smith

I strongly recommend that you review Step 7 of the 3GS 'Display,' 'Front Panel' or 'Front Panel Assembly' guide. As of this date (June 2015), only those three guides include a photo of a mock-up of Connector 3 that will provide you with detail that will help you avoid damaging that fragile connector.

My Camera is not working anymore =( going to open my iphone once again...

I found that after putting the battery in place and reattaching the logic board with the screws I had to press down a little bit to get the screws to reach because the battery contacts kept the logic board from settling in this tension gives positive contact between board and battery.

I am unable to remove the screw that holds the camera in place. I'm afraid I am stripping the screw head. Any advice?

My battery had swollen - so much so that the back cover was bulged. So when I was removing screws, I was really careful and did every-other-one first on one side, and then the other, then back to the first side, etc. Even in doing that, one of the screws went flying...somewhere...I never did find it, but it hasn't seemed to effect anything. And when I do find it I know I can get back in my phone to put it back.

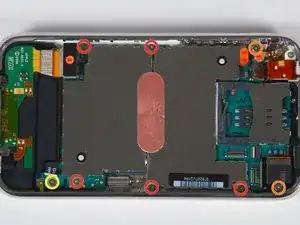

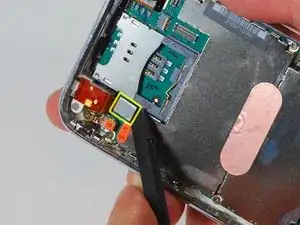

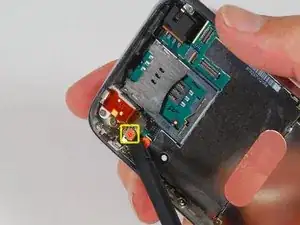

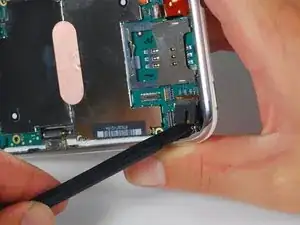

I didn't have a removable screw in the bottom right with a metal strip, there was a fastening in there without a Philips type depression, but the camera came out with the board. Not sure if the last person in here before me broke something, as there was an aftermarket battery in the phone with no adhesive. However the camera works after putting it all back together

There were many places where I wished there were clearer instructions on putting it back together; this was a big one. It was very difficult to get the camera back in place. I heard a snap when mine went into place.

If the “Do not remove”-sticker is damaged it’s a warranty thing I suppose? It doesn’t have any function, does it?

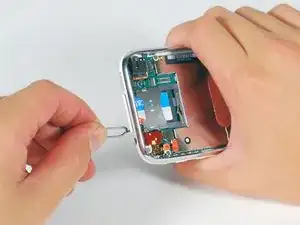

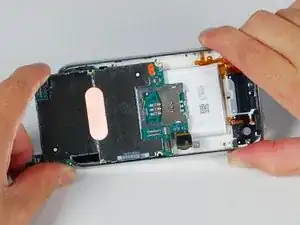

When putting it back together, it helps with alignment to put in the SIM Card tray. This beats having all your screws back in and finding out it's misaligned. Put the logic board 5/6 the way in, and insert the SIM Card tray like normal. Allow it to guide your logic board into the proper place.

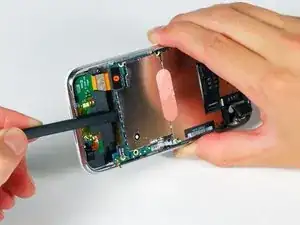

When re-installing the mother board ensure that all of the previoulsly diconnected connector cables are out of the way and do not become trapped by the motherboard.

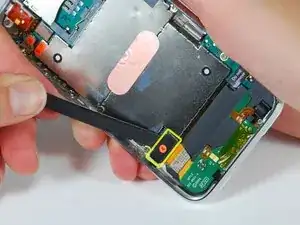

Definitely watch out to have all your connectors above the board. I managed to get my #5 connector trapped under it. Still hope wasn't damaged, we'll see in a few minutes :)

check also that the golden cicuit is opened when the sim card tray is inserted. this circuitry controls the presence of the sim card tray.

I successfully completed these steps to dry out a wet phone. While everything inside was dry as a bone, I never did remove the battery since the adhesive was so strong.

I found the spudger far too weak to even attempt the removal of the battery. Instead, I used a folding bone (something I've had for years that's used for making perfect folds in heavy printmaking paper) however, I was still bending the battery far more than I was comfortable with. Since my mission was not to mess with or replace the battery anyways I just left it alone.

Excellent directions!

Installed and the phone is working... You'd think Apple didn't want us to be able to replace the battery. Good directions.

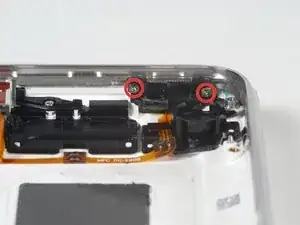

I did not need to remove the battery. The power button, headphone jack, volume rocker, and vibrate switch were all accessible with the battery still in place.

I've done all the steps and phone switches on and works just fine with the one exception that I do have a signal! Is it possible I've damaged the aerial in the process? The strange thing is that on checking the networks I can see T-Mobile, but not 02, so implies something is working. All very odd. Currently my iPhone has become an iPod! Erkk

Any tips?

You most likely forgot to re-atatch the antenna. It is one of the connecters you unhooked after the first 3...its located in the top left of the case..Its a circular connecter.

Zitat von John:

I've done all the steps and phone switches on and works just fine with the one exception that I do have a signal! Is it possible I've damaged the aerial in the process? The strange thing is that on checking the networks I can see T-Mobile, but not 02, so implies something is working. All very odd. Currently my iPhone has become an iPod! Erkk

Any tips?

Sorry...Its the connecter on the bottom left..Rectangular shaped

Zitat von John:

I've done all the steps and phone switches on and works just fine with the one exception that I do have a signal! Is it possible I've damaged the aerial in the process? The strange thing is that on checking the networks I can see T-Mobile, but not 02, so implies something is working. All very odd. Currently my iPhone has become an iPod! Erkk

Any tips?

I put back together my iPhone and put it in a new shell but I just finished and the power button won't work what could i have done wrong?

Zitat von thomas manning:

I put back together my iPhone and put it in a new shell but I just finished and the power button won't work what could i have done wrong?

oh also the vibrate button won't work any ideas there?

I managed to replace the mute button without removing the on/off button :o)

Great tutorial guys, I must admit it's not easy, due to tiny parts and screws, but you can do it!

Great!

Was able to peel the ribbons without removing the battery. Worked great with a 3G. Thanks

Instructions and notes made this fairly easy to do. I had one scary moment where my screen would not turn on but a Hard Reset on the phone fixed it.

any help welcome,just changed the battery on the wife's iPhone after it took a little swim,it wouldn't charge after drying out and i thought a new battery would be the answer,phone switches on ok and everything works except it won't charge on any of our proven chargers.guess something on the main board's knackered. if you have any ideas i would be a very happy chap.

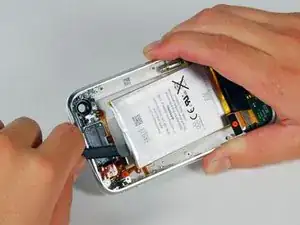

Be careful when trying to pry the battery from the side, as the spudger will break.

There are no delicate parts below the battery so you can push the spudger under the battery without damaging anything. Just be careful at the top of the phone that you don't damage the orange ribbon cable.

Just a little tip I thought I might add. I would recommend having a digital camera handy to taking snap shots before proceeding with each step, so that you can see exactly how it originally looked at each stage. Once you've gotten to the battery section, just pop the card from the camera into a computer or applicable device and you now have a simple guide for reassembly that is specific to your device.

Also, it may be prudent to take a picture of the screws laid out in a tray along side the phone in the same positions they came out of.

Agree with others - spooger will almost certainly break if you try to pry it out using just that and you can't pull hard enough on the plastic tab. Even on my 2 year old phone, the glue was still *quite* good at holding the battery in.

I used an equally small flat-blade screwdriver and gently walked around the battery lifting against the bottom plastic and the edge of the phone being careful NEVER to touch any of the flat-cable wires. While you can pry against the bottom since there is nothing under it (just double-check since there are some wires running along the side of the phone and the pressure you need to remove the battery would damage the wires if you pryed on them), you need to be careful against the edge of the phone. It's cheap plastic. You can pry against it, but I dared not use more force than enough to start hearing the adhesive start to rip/creak loose. SLOWLY walking around the battery at safe pry points several times finally loosened it enough that I could pull it out. GO SLOW.

Make sure no unplugged cabel is under the circute board when inserting the board again.

This happens easily since the cable tend to spring back.

Since I didn't have a hair dryer (never needed one) I used a 500W construction lamp... Those things get very hot. The battery came free relatively easy.

Had to use pliers to slowly pull the battery free by it's tab. When you reverse the steps to reassemble the phone - make sure to get all 6 (or 7 for the 3GS) cables plugged back in. I forgot connector 5 and had to take the phone back apart. Then realized the next day I also had missed connector 6 (wifi). So because I reassembled too quickly the first time - I got to do all the steps 3 times! But phone works perfectly now with a new battery.

Actually broke the plastic spludger trying to get the battery off. Considered it the hardest part of the tutorial. I kept looking at it to see if I hadn't ruined something.Asides from this, reassembling was fairly quick although there was no sliding back of the logic board for me on a 3G. Turned it back on, tested sound, microphone and wifi. All seems good. Thanks alot for all the help guys.

I've made all the disassembling process with no problems, but when I put the logic board back the battery starts getting hot and hotter. Any suggestions??

When I put the new battery in, it was a smidge too far toward the bottom. As a result the logic board didn't quite fit back into place and I was unable to put two screws back in. However, the repair seems successful and my phone is working now. Additional guidance on installing the battery would help.

So, I replaced the battery, but now, when I charge the phone, it shuts down and restarts. It also shuts down with use. Hmmm. What is it? Is it the "Do not remove tape"? Or som eother connector?

I replaced the battery and it works great...battery wise...however my home button and power button do not work. I can turn the phone on by plugging it in and then out again only. HELP PLEASE?!?!?!

The new battery that I have had air pocket in it. It kinda bloated. The logic board would not fit back perfectly because of the bloated battery.

So using a sharp cutter, I cut a bit hole. Pssssttt... the air came out. Watch out for the chemical smell. Using a good tape, tape back the hole. Double did that to make sure.

Don't know whether I supposed to do that or not, but sending back the battery to ifixit was not an option as I live on the other side of the planet.

any one can help me fix my iphone 3g. i was using it the other day when it suddenly turned off by itself and i cant turn it back on, any tips?

OK, I replaced the battery following the instructions (was more of a struggle than I thought it would be to get the logic board back in place) and put it all back together. All appears to be working fine except the Camera. The Camera App will not open the camera to let me take either a photo video. As the camera is never disconnected from the logic board I am puzzled as to what could be the issue. Very frustrating. Any ideas?
