iPhone 4 Verizon Speaker Enclosure Assembly Replacement

Geschrieben von: Andrew Bookholt
  • Kommentare: 1
iPhone 4 Verizon Speaker Enclosure Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

Keine Schätzung

Einleitung

Internal Prerequisite.

  1. CbSqKaAqOHUIAe5K
    CbSqKaAqOHUIAe5K
    JZFlpxRuZRs14K5B

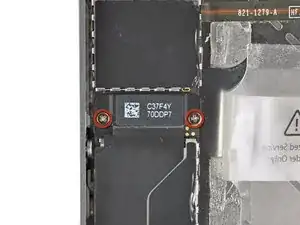

    • Remove the two 1.8 mm Phillips screws securing the dock connector cable cover to the logic board.

    • Remove the metal dock connector cable cover.

  2. LTGglSRdd5SCnJPs

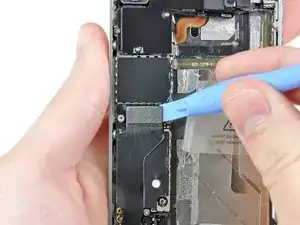

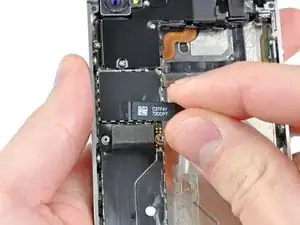

    • Use the edge of a plastic opening tool to pry the dock cable up from its socket on the logic board.

    This repair went well overall, but I thought I would add a couple comments on this step. Once I got my iPhone back together, it would not charge and the home button didn't work. I took it back apart and realized that the dock cable was not seated. After many attempts, I finally got it seated correctly and you can feel it "click" into place. The metal rectangle that holds it on should sit FLAT and not have any bulge. If you have a bulge, that means the dock cable is not seated correctly.

    tobykanobe -

  3. R1UsEmWIdDmMLwpW

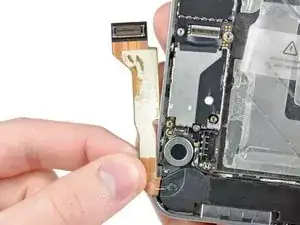

    • Peel the dock connector cable off the adhesive securing it to the logic board and the side of the speaker enclosure.

  4. AGDVaEGr6WCJIiXy
    AGDVaEGr6WCJIiXy
    Wc3UobASePdJuSTX

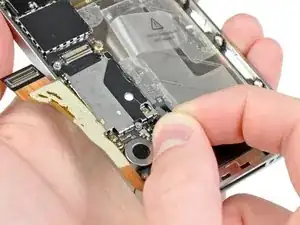

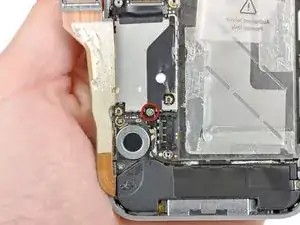

    • Remove the 1.6 mm Phillips screw securing the pressure contact to the logic board near the vibrator.

    • Remove the pressure contact.

    • When reinstalling the pressure contact, be sure to clean it with a degreaser such as windex or isopropyl alcohol. The oils on your fingers have the potential to create wireless interference.

  5. LfLKoMtYoJoVVVQA
    LfLKoMtYoJoVVVQA
    FdBXIsVeUZBCQh5Z

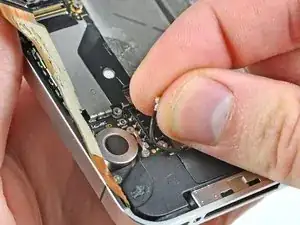

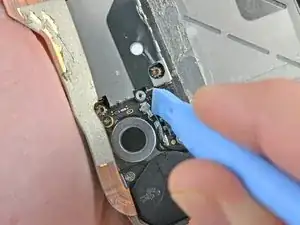

    • Use the edge of a plastic opening tool to pry the Wi-Fi antenna cable up from its socket on the logic board.

    • De-route the Wi-Fi antenna cable out from under the metal fingers attached to the logic board.

  6. jMNfy16UUCMNWEff

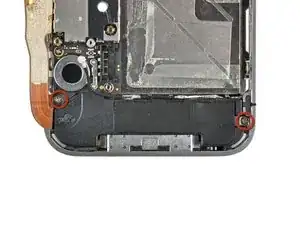

    • Remove the two 2.4 mm Phillips screws securing the speaker enclosure assembly to the outer case.

  7. SZTpxAUR6OkBCIUM

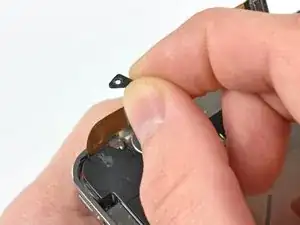

    • Remove the small black spacer that was under the Phillips screw near the vibrator.

  8. DpQe3wPMaSDSHTUt
    DpQe3wPMaSDSHTUt
    2BOpy4k2fO3InR5T
    NiWZTt6ix41mgKRh

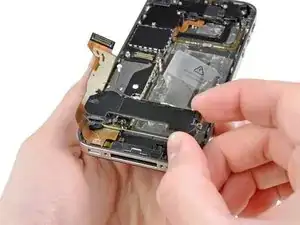

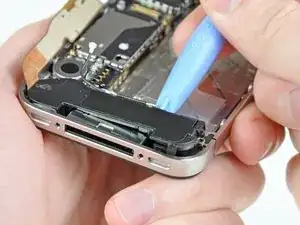

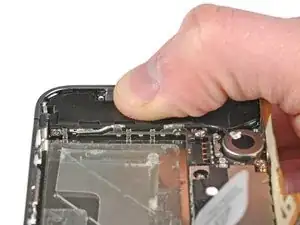

    • Use a plastic opening tool to lift the speaker enclosure assembly out of the case, being sure not to damage the EMI fingers on the attached Wi-Fi antenna.

    • Remove the speaker enclosure assembly.

    • Before reinstalling the speaker enclosure assembly's screws, be sure the Wi-Fi grounding fingers are installed below the lip in the iPhone's metal case as seen in the third picture.

    • Before reassembly, be sure to clean all metal-to-metal contact points between the grounding fingers of the Wi-Fi antenna and the case of the iPhone with a de-greaser such as windex or isopropyl alcohol. The oils on your fingers have the potential to cause wireless interference issues.

Abschluss

To reassemble your device, follow these instructions in reverse order.
