iPhone 4S Battery Replacement

Geschrieben von: Cole Anello

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide consists of instructions on how to replace the battery in an iPhone 4S.

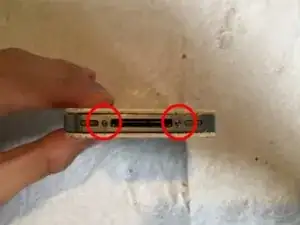

Remove the Bottom Pentalobe Screws next to the charger connecter.
It is recommended that you use a small 5-Point screwdriver.
Remember to make sure your iPhone is fully turned off before tearing it down, to prevent serious injury.

Any Chinese Here？

I need a teacher_(:з」∠)_

啥意思？我就是Chinese，有啥问题可以加我WeChat

This iPhone has seen some stuff

Which way do you turn the screw to get it out?

Counterclockwise, of course.

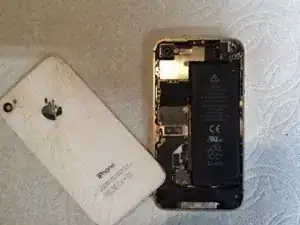

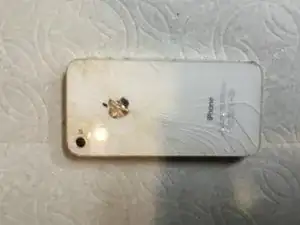

Push the back panel towards the top edges of the iPhone. Doing this should allow the back to slide off.
Do NOT apply so much pressure. Especially if your iPhone is cracked.
Do not rush it! Time is key.

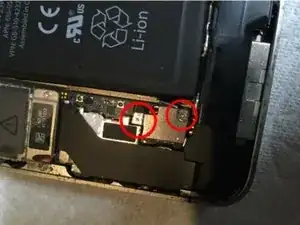

Remove these two screws that are securing the battery connecter to the Logic Board.
Remember to focus and pay attention. So you don't accidentally slip and pierce the Battery!
For the bottom screw, it is recommended that you use a 1.5 mm Screwdriver, and a 1.7 mm for the top screw.

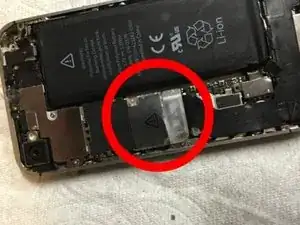

Locate and pull the Plastic tab to pull out battery. Make sure to pry up outsides of battery on other sides as well.
Do not pull the plastic tab to hard, as it can easily rip!
