iPhone 6 Plus Rückkamera ersetzen

Geschrieben von: Walter Galan

Kommentare: 4

Schwierigkeitsgrad

Mittel

Schritte

Zeitaufwand

Keine Schätzung

Einleitung

Nur Prereq für Logic Board.

Werkzeuge

Schritt 1

Entferne mit einer Pinzette jegliches Band, was die linke obere Schraube der Rückkamera bedeckt.

Schritt 2

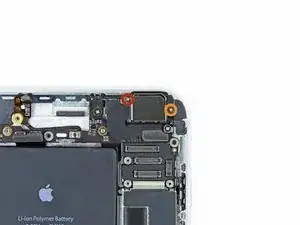

Entferne die folgenden Kreuzschlitz #00 Schrauben von der Abdeckung der Rückkamera:
Eine 1,7 mm Schraube
Eine 2,3 mm Schraube

In my case, the rear facing camera was connected to the antenna clip with a piece of black tape, the two can come off together if removed very carefully

derwentx - 27/01/16

Schritt 3

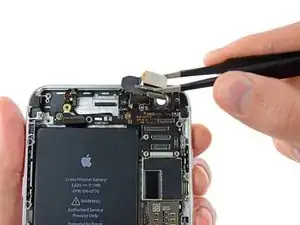

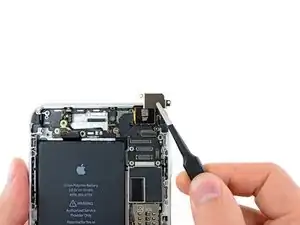

Entferne die Abdeckung von der Rückkamera.

On my iPhone 6+, the screw removed in step 41 had to come off too as the part number A21-2247A is attached to this cover… seems to have a tiny coil or other component connecting the (ground) post at the 1.6mm screw in step 41

Matthew Goheen - 28/03/18

Apparently the antenna clip in step 41 has self adhered to my rear facing camera cover… had I not already removed the screw from step 41 it would have broken when I pulled that cover with just two screws off

Matthew Goheen - 29/03/18

WARNING:

When doing this step 35, you must do step 41 (Simply undo the small screw under “One 2.3 mm Phillips #00 screw “ as well) .

Step 42 shows a ribbon. This ribbon seems to be stuck on the rear-facing camera bracket (step 35).. so pulling rear-facing camera bracket off , be careful it is not adhered and pulling off Step 42 ‘s ribbon!

It is electronic and a ribbon.

Anyname - 21/02/19

Schritt 4

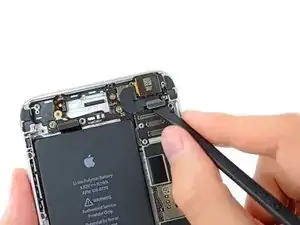

Löse mit dem flachen Ende eines Spudgers das Kabel der Rückkamera vom Anschluss auf dem Logic Board.
Achte darauf, dass du nur den Anschluss löst und nicht am Logic Board selbst hebelst, du könntest es sonst beschädigen.
