iPhone 7 Lautsprechereinheit tauschen

Geschrieben von: Scott Havard
  • Kommentare: 16
iPhone 7 Lautsprechereinheit tauschen

Schwierigkeitsgrad

Mittel

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

Voraussetzung um die Lautsprecher oder das WiFi Antennensystem zu entfernen.

  1. ENyvBuKbFVTcwRoM

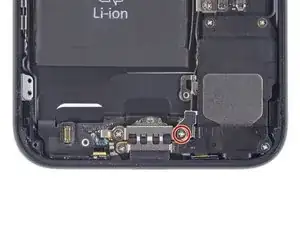

    • Entferne die Kreuzschlitzschraube, die das WiFi Antennensystem am Rückgehäuse befestigt:

    • Eine 3,2 mm Schraube

  2. GVXFYj26Eytc6ggM

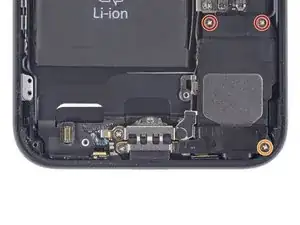

    • Entferne die folgenden drei Kreuzschlitzschrauben, die den Lautsprecher am Rückgehäuse befestigen:

    • Zwei 1,3 mm Schrauben

    • Eine 2,0 mm Schraube

  3. NZ2FYCkUirNEmCqA
    NZ2FYCkUirNEmCqA
    XM63CBMNUGEANVGp
    R2A2hlIaZYxtKNMv

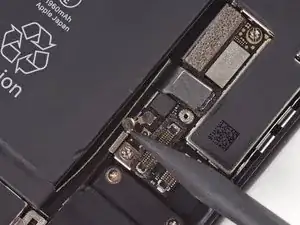

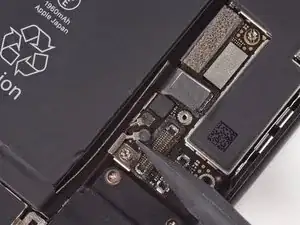

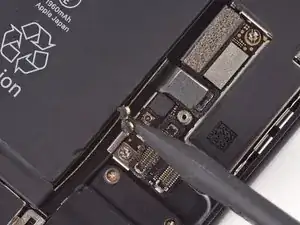

    • Benutze die Spitze eines Spudgers, um die Antennenkabelverbinder von ihren Anschlüssen auf dem Logic Board zu lösen.

    Hey may i ask…what is the use of both of the antenna cables?i just opened my iphone 7 plus and i found both of the cables are broken.if both of the cables are broken,what does it effect on my iphone?

    Mohd Wazirul -

    Speaker and antenna?

    Keah Smith -

    I'm missing the black thing from my antenna and I have no signal, could this be the reason why? Is the black thing insulation?

    Keah Smith -

    These doodads are a pain to route and reconnect. I probably spent 15 minutes just on this part of reassembly. One of them is connected to the new part. It won’t have the soft grommet on top.

    Ray Bieze -

    One of these came away from its base. The one nearest the battery.

    When I reassemble it I’m thinking just a bit of glue at the side once re attached to base, so lomg as it touches the base contacts?

    Any comments?

    ANDREW -

    I am having the worst time imaginable trying to reconnect the antenna cable coming from the lightening connector assembly to the logic board. It’s barely long enough and will not snap into place. There’s a minature gold pin sticking up from a circular gold ring on the logic board and I must have spent an hour on this one step. The antenna end has the female end. Everything else went well. The antenna connector from the old lightening assembly will connect relatively quickly. I’m beginning to think the new antenna connector female end might be defective. I’m ready to cut the black antenna wire and try to solder in a longer piece using the old connector assembly. Any ideas? HELP !!!

    David Sandrof -

    These can be tricky to reconnect. I found the best way is to hold the connector with tweezers and use the point of a spudger on top of the connector in the other hand. Slowly moving the connector with the tweezers while applying gentle pressure with the spudger, you will eventually feel the connector and its seat line up and you can snap into place. Don’t force it, when it is lined up it is easy so you have to patiently work on aligning it.

    David Ege -

    please say which antenna is which, impossible to know now

    Mitchell Thompson -

    Tip that helped me: remove the standoff screw next to the clip before derouting (or, upon reassembly, rerouting) the cables. This gives you a lot more space to work with! (Note: I only did this on reassembly, so I don’t know if there are any gotchas on disassembly.)

    T Murrills -

    Please pay close attention to witch one goes where or take a picture bad mistake made.

    michael -

  4. 6yiSroPqDJRjSbBk
    6yiSroPqDJRjSbBk
    ILHmbOMFhFB5OHK1

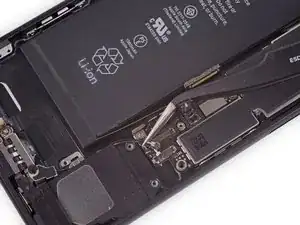

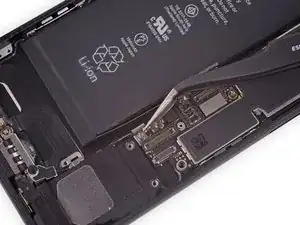

    • Entferne die Antennenkabel aus ihrer Halterung auf dem Logic Board mit Hilfe einer Pinzette.

  5. dU3ZJGmCPZ1bALlI
    dU3ZJGmCPZ1bALlI
    QimsyIes2rMjcYCS

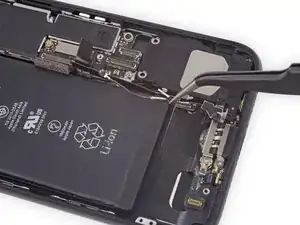

    • Entferne mit einer Pinzette die Antennenkabel vom Clip am Lautsprecher.

    • Achte darauf, das Kabel nahe am Clip zu fassen, um ein Beschädigen des Kabels zu vermeiden.

    They pull off to the side.

    Ark -

    This was an oddly challenging step, lifting the speaker slightly from the top end allowed me to slide the tips of one side of the tweezers in between the cable and the speaker, prying it out rather than grabbing and pulling which feels dangerous.

    Jesse de Vries -

    They break very easily

    Josh Brito -

    difficile a retirer. Les 2 tables sont clipsés sur le haut parleur. Il m’a bien fallu 10 - 15 minutes pour arriver a les retirer. Aucune astuce a vous donner, a part de la persévérance.

    Guigui -

    One cable seems to stay attached to the speaker. Don’t try to pry it off the speaker! This is shown in the video but not in these photos.

    Cynthia Lamb -

  6. q3631AQDapQoBYN6
    q3631AQDapQoBYN6
    lfZXAnVnBnXDooYM

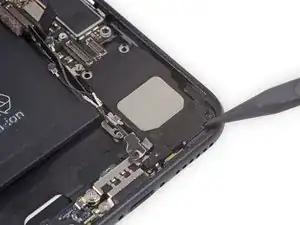

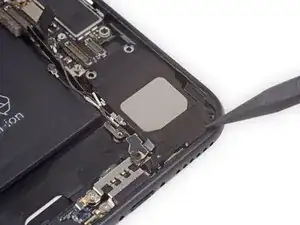

    • Schiebe nun mit der Spitze des Spudgers die Lautsprechereinheit in Richtung des Logic Boards und löse sie vom Rückgehäuse.

  7. kdWfREmZYIO1G4cp

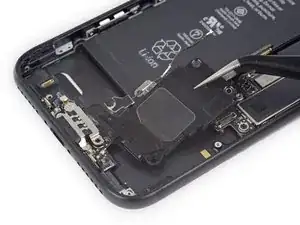

    • Entferne den Lautsprecher.

    Reassembly tip: after aligning the speaker with the bottom edge, instead of lowering the speaker into place, keep the speaker raised slightly and push the cables back into the clip (which were removed in step 28) with the flat end of a spudger. In doing so, though, make sure that the cable from the lightning connector piece remains above the flat metal piece protruding out the left side of the speaker.

    T Murrills -

Abschluss

Um dein Gerät wieder zusammenzubauen, folge den Schritten in umgekehrter Reihenfolge.
