iPhone SE 2022 Rear Camera Replacement

Geschrieben von: Dominik Schnabelrauch
  • Kommentare: 2
iPhone SE 2022 Rear Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

22

Zeitaufwand

30 - 45 Minuten

Einleitung

Use this guide to replace the rear camera in an iPhone SE 2022.

This guide was performed on the A2783 (international) model.

If you do not replace the adhesive seals when reassembling, your device will function normally, but will most likely lose its water protection.

You’ll need replacement adhesive to reattach components when reassembling the device.

  1. GGG5DRQpWboQDlSA
    GGG5DRQpWboQDlSA
    XdXYeVMwpyc6vmec

    • Power off your phone before beginning disassembly.

    • Remove the two 3.4 mm pentalobe screws on the bottom edge of the iPhone.

  2. dmLx3jBCnKiqER3P

    • Prepare an iOpener and apply it to the screen for at least two minutes to loosen the adhesive underneath.

    • A hair dryer, heat gun, or hot plate may also be used, but be careful not to overheat the phone—the display and internal battery are both susceptible to heat damage.

  3. rD6EXtETYK6W43BL
    rD6EXtETYK6W43BL
    hbLJnRXewjQryYWU
    2GmowdKF2n6OVMFt

    • Secure a suction handle to the lower half of the front panel, as close to the home button as possible.

    • If the rear glass is cracked, the suction handle may not stick. Try lifting it with strong tape, or superglue the suction handle in place and allow it to cure so you can proceed.

    • Lift the front panel with the suction handle to create a small gap between the front panel and the frame.

    • If you have trouble creating a gap, apply more heat to the bottom half of the screen to further soften the adhesive. Follow the iOpener instructions to avoid overheating.

    • Insert an opening pick into the gap you created.

  4. RlxbQliqSLEM2EaO
    RlxbQliqSLEM2EaO
    qTgGWqDlDtUKPxuD
    gA1LFGhlnRfFqQAL

    • Slide the opening pick to the bottom right corner to slice the front panel adhesive.

    • Insert a second opening pick at the bottom edge of your phone.

    • Slide the opening pick to the bottom left corner to slice the adhesive.

    • Leave the opening picks in place to prevent the adhesive from resealing.

  5. B22ufmmktismRyAX
    B22ufmmktismRyAX
    rU5fHWqNIZNBrniI
    iWpJiHFQUTS6d5nO

    • If the adhesive becomes hard to cut, it has most likely cooled down. Use your iOpener for two to three minutes to reheat it.

    • Slide the bottom left opening pick along the left edge of your phone to slice the adhesive.

    • Stop near the top left corner of the display.

    • Do not try to pry the top edge of the display away from the rear case, as it is held in place by plastic clips that may break.

  6. MdCdFmuXV3wpZgaQ
    MdCdFmuXV3wpZgaQ
    2oeM1KEYNYMbIopy
    VcrH5erBM4hnnRib

    • When you slice along the right edge, insert only the tip of the opening pick (~ 2–3 mm) to avoid damaging the display flex cables.

    • Slide the bottom right opening pick along the right edge of your phone to slice the adhesive.

    • Stop near the top right corner of the display.

  7. PVrRTalFwRJjLyMl
    PVrRTalFwRJjLyMl
    TuKLCySrOykReABT

    • Remove the opening picks.

    • Gently pull up on the suction handle to lift up the bottom edge of the display.

    • Do not raise the display more than 15º or you'll risk straining or tearing the ribbon cables connecting the display.

    • Remove the suction handle.

  8. PaPQfMVnk14TFVyS
    PaPQfMVnk14TFVyS
    SHc23yyo2EcbXen4
    wXT3eJM6gpT5YsUh

    • Slide an opening pick underneath the top left corner of the display.

    • Slide the opening pick around the top left corner and along the top edge of the phone to slice the remaining adhesive.

  9. xWICR4vuLA1aP5Y3
    xWICR4vuLA1aP5Y3
    hTkaOdOaqoID5WZn

    • Slide the display assembly slightly down in direction of the charging port to disengage the clips holding it to the rear case.

  10. y32q2dWXG4cVWeOT
    y32q2dWXG4cVWeOT
    GQQr6a6WbdHTj2C2
    E3XlASBtSJ2JIose

    • Open the phone by swinging the display up from the left side, like the back cover of a book.

    • Don't try to fully separate the display from the phone assembly yet, as several fragile ribbon cables still connect it to the logic board.

    • Lean the display against something to keep it propped up while you're working on the phone.

  11. 5HQFUu6AmYN4OlAy

    • Remove the four Phillips screws securing the lower display cable bracket:

    • Two 1.2 mm-long screws

    • Two 2.8 mm-long screws

    • Throughout this guide, keep careful track of your screws so that each one goes back where it came from during reassembly. Installing a screw in the wrong place can cause permanent damage.

  12. DIQ3ZVFc1XcHUEaY
    DIQ3ZVFc1XcHUEaY
    ICtMmUpcMdqA3axd

    • Use a pair of tweezers to carefully remove the lower display cable bracket.

  13. kadZDtevxOASDjj4
    kadZDtevxOASDjj4
    cTPyu5mJSQSuXbkU

    • Use the pointed end of a spudger to disconnect the battery by prying the connector straight up from its socket.

  14. vt1FtSsZUNXsVx2p
    vt1FtSsZUNXsVx2p
    yYecSXPv2aWnOdbx
    tITbAT1tChsuHJmk

    • The display and digitizer cables run on top of each other. To avoid cable damage always start by disconnecting the upper cable first and never try to disconnect both at the same time.

    • Use the pointed end of a spudger to disconnect the bottom two display cables by prying the connectors straight up from their sockets.

    • To re-attach press connectors like this, press down on one side until it clicks into place, then repeat on the other side. Do not press down on the middle. If the connector is even slightly misaligned, the connector can bend, causing permanent damage.

  15. 4YS3lZFhlKE6BVAT

    • Use a Phillips screwdriver to remove the three 1.2 mm-long screws securing the front sensor assembly bracket.

  16. EufAVl6SybJmXmB2
    EufAVl6SybJmXmB2
    DU5xdDZEyHDIEj3o

    • Use a pair of tweezers to carefully remove the front sensor assembly bracket.

  17. 5qNVlyQAUtcEY1f2
    5qNVlyQAUtcEY1f2
    m2upMd2vsQhuyqWx

    • Use the pointed end of a spudger to disconnect the front sensor assembly by prying the connector straight up from its socket.

  18. eQJL2ptVADQiNBuA
    eQJL2ptVADQiNBuA
    r3PRyPkBMrFAOj5Z

    • Remove the display assembly.

  19. wrESC6SjGSFJBmPG
    wrESC6SjGSFJBmPG
    FJOyQNSQxRMLXoRy

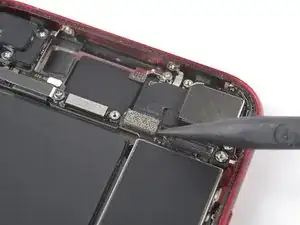

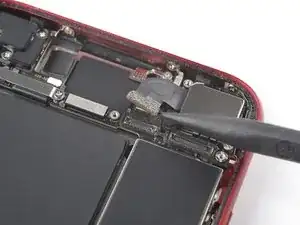

    • Use the pointed end of a spudger to disconnect the rear camera by prying the connector straight up from its socket.

  20. JTRUohcLfTxTedvX

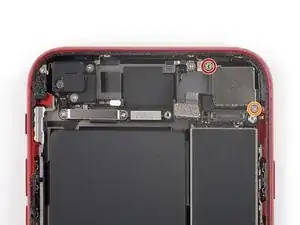

    • Remove the two screws securing the rear-facing camera bracket:

    • One 3.0 mm-long standoff screw

    • Standoff screws are best removed using a standoff screwdriver or bit.

    • In a pinch, a small flathead screwdriver will do the job—but use extra caution to ensure it doesn't slip and damage surrounding components.

    • One 3.1 mm-long Phillips screw

  21. rRMQ1eQQuJM4KrbC
    rRMQ1eQQuJM4KrbC
    lvlgYjO14VWPLxFU

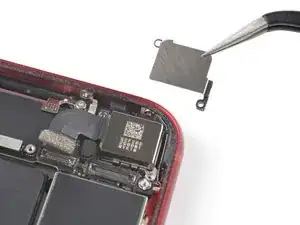

    • Use a pair of tweezers to remove the rear camera bracket.

  22. S53iVrroaVCmr45J
    S53iVrroaVCmr45J
    Ry3DcnZ4sPKPXwO1

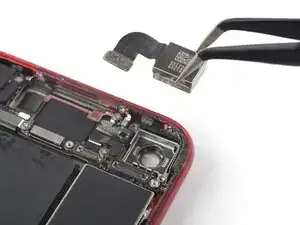

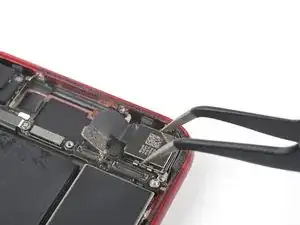

    • Use a pair of tweezers to remove the rear camera.

    Is it compatible with the iPhone SE 2020 camera?

    qorwoals3225 -

    Hi qorwoals3225,

    we wrote an article about parts compatibility between the iPhone 8, SE and SE 2022. Maybe there you find the information you're searching for.

    Dominik Schnabelrauch -

Abschluss

If possible, turn on your device and test your repair before installing new adhesive and resealing.

Compare your new replacement part to the original part—you may need to transfer remaining components or remove adhesive backings from the new part before installing.

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.
