iPhone X Zerlegung

Geschrieben von: Mandy
  • Kommentare: 43
iPhone X Zerlegung

Schwierigkeitsgrad

Mittel

Schritte

12

Zeitaufwand

4 Stunden

Einleitung

Hier wird eine grundsätzliche Anleitung zum Zerlegen eines iPhone X gezeigt.

  1. SLIWlhhPUFLULXjO
    SLIWlhhPUFLULXjO
    DDBFAmfYMdH6XUbS

    • Drücke gleichzeitig die Aufwecktaste und die Lautstärke-weniger-Taste um das Handy auszuschalten.

  2. 6wiJqTr25Zx2F2nb
    6wiJqTr25Zx2F2nb
    VykmNiEK43kXvsmH
    5saDXZrg32vQJ1yt

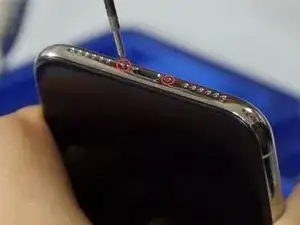

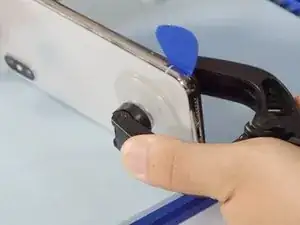

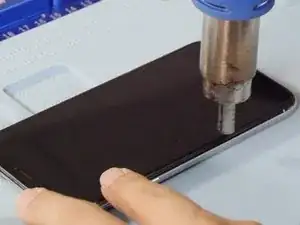

    • Entferne die Pentalobe-Schrauben um den Ladeanschluss. Du musst dann das Handy mit einem Heißluftgebläse erwärmen. So lässt es sich leichter öffnen.

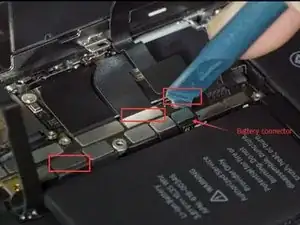

  3. hawT1ldxFQbbdIAl
    hawT1ldxFQbbdIAl
    rhNs4GIASlIXEnFr
    c2WSvxLfJoIP6vsL

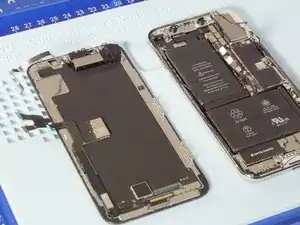

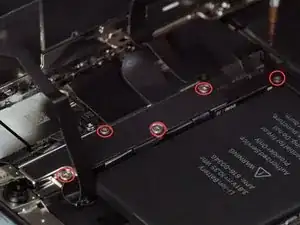

    • Drehe fünf Tri-Point Y 000 Schrauben, wie im Foto zu sehen, heraus.

    • Diese Schrauben haben verschiedene Längen. Achte darauf, wo welche hingehört.

    • Löse die Verbinder zum Bildschirm, Digitizer, Ohrhörerkabel mit einem Spudger.

    It’s an OLED screen, not LCD..

    Sverre Siggerud -

    need the screw sizes if anybody has them

    Alan Kmiecik -

    Hi Alan, you can find the screw sizes in step 13 of our screen replacement guide.

    Adam O'Camb -

    Hello, I need help please Is the same screwdriver used for all 5 screws? that is to say the Tri Point Y000

    Imanol Tanta -

  4. iUq2fSpNFPuRKPZl
    iUq2fSpNFPuRKPZl
    PXIcHTXlFLcO1YRc

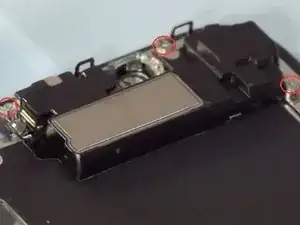

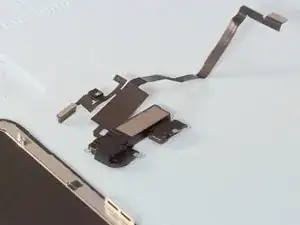

    • Drehe drei Y000-Schrauben heraus. Wenn du das Flachbandkabel mit einem Heißluftgebläse erwärmst kannst du den Ohrlautsprecher leicht herausnehmen.

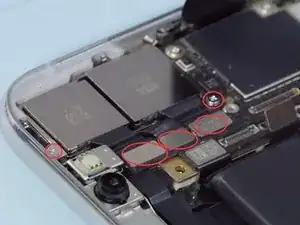

  5. RDXyKPinUESLHWUf

    • Drehe zwei Kreuzschlitzschrauben #00 heraus und entferne die Metallplatte. Löse die Stecker zu den Rückkameras ab.

    • Auch diese Schrauben haben verschiedene Längen.

    Remove SIM card and tray.

    Dani G -

    WE need a picture of all the part that need to be removed here… if the rear cameras (the square silver shapes) need to be removed before the motherboard, direction as to that is needed.

    liznewkirk -

    Motherboard does not need to come out yet

    Notice the screw furthest left in picture. There is a connection to the front-facing cameras that need to be gently popped up to remove the antenna.

    Alan Kmiecik -

    the leftmost screw in the picture is the longer one

    Cire Ekratz -

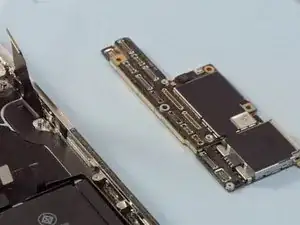

  6. mjXZcYhS5uNi2UpD
    mjXZcYhS5uNi2UpD
    t1kIDetgG3GCuDDJ

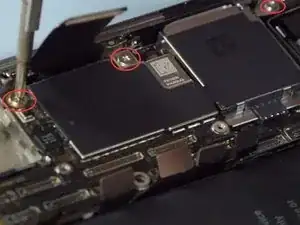

    • Löse alle Verbinder zur Hauptplatine mit einem Spudger.

    • Drehe drei Kreuzschlitzschrauben #00 von der Hauplatine heraus. Nun lässt sie sich entnehmen.

    I feel like the last ribbon cable towards the top of the board needs to be addressed here. It's the cable right under the IR sensor for facial recognition in step five. It completely hid itself from my view and I feel like this can happen to someone else. It would be awful to destroy that cable or anything else.

    Felix Robinson -

    I can’t get the motherboard off because of that hidden flat cable at the top of the phone! I see no way to disengage it. Am I screwed?

    liznewkirk -

    So, yeah. This step in particular is missing about three more steps, without which you are in danger of tearing the IR sensor. So here’s the missing info. After releasing the connectors from the board:

    * remove the two Phillips screws, under the top lip of the phone chassis, holding the front camera assy in place.

    * Pull the camera assy forward just enough to loosen the IR cable that lays across the board. No need to un-stick the ribbon cables from the chassis.

    * use a spudger to disconnect the antenna cable from the board, directly under the IR cable.

    * gently remove the laminate board while carefully pushing the ribbon connectors out of the way with a spudger.

    Jim Thorpe -

    the leftmost screw (in the picture) is longer than the rightmost one

    Cire Ekratz -

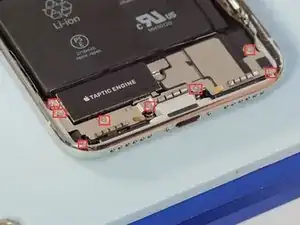

  7. G4poKF2Y5ElC2Otn
    G4poKF2Y5ElC2Otn
    HJ6xKRcOZoSSCEBG
    IyIKsxs4SNSx1JPk

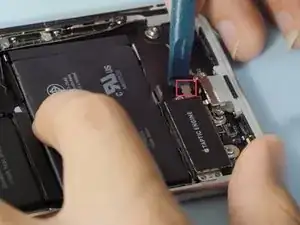

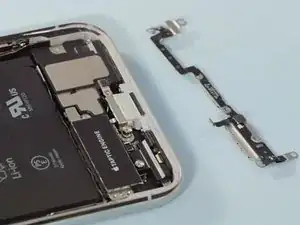

    • Drehe acht Schrauben an der Halteplatte heraus. Entferne dann die Platte. Achte dabei auf den kleinen Stecker auf der Platte, der direkt unter der Taptic Engine angeschlossen ist.

    • Entferne Lautsprecher und Taptic Engine.

    Remove 9th screw that hold small metal plate in place on top of the speaker connector.

    Dani G -

  8. yDIFvbECrjGGVtuX
    yDIFvbECrjGGVtuX
    sZShqwXPHWPerTGr

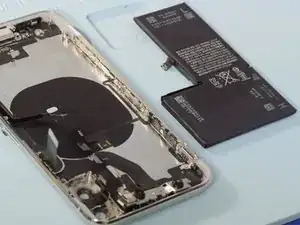

    • Ziehe die vier Klebestreifen unter den Akkus mit einer Pinzette heraus. Entnimm die Akkus.

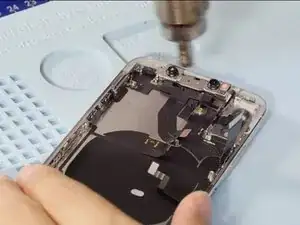

  9. 6QjG4NHWmxSTA1n5
    6QjG4NHWmxSTA1n5
    EfvSTDu6QWYZ4MyE

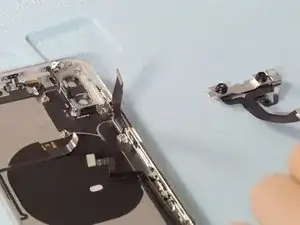

    • Wenn du die Kamera mit einem Heißluftgebläse erwärmst kannst du sie leicht entnehmen.

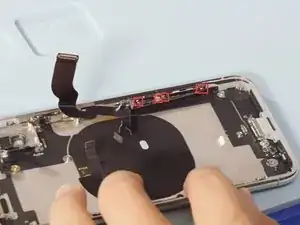

  10. GAnwOxBBToGwqbuh
    GAnwOxBBToGwqbuh
    UydSiwBWYmS1MHWX
    IoDPdKCI6ws1jile

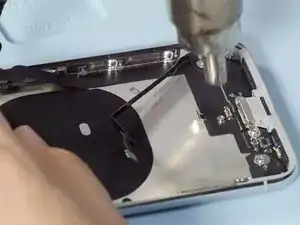

    • Entferne die vier Schrauben vom Rahmen wie im Foto gezeigt.

    • Erwärme das Flachbandkabel zum Ladeport. Dann lässt es sich entfernen.

    Don’t forget to unscrew the two screws on either side of the port and the two in the side wall next to the port.

    Bonrad C -

    What size and type of screw is the one on the side that holds the interconnect cable in?

    Jonathan Weinraub -

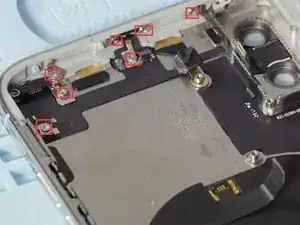

  11. ESRgSon2N4UEAHFo
    ESRgSon2N4UEAHFo
    jSNLZuSJLgHjgMUD
    x6kwrRRRgBMWCEXB

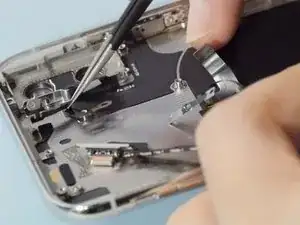

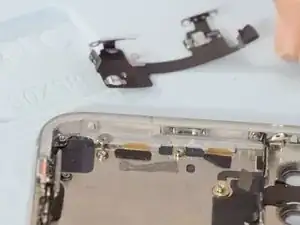

    • Drehe sieben Schrauben am Flachbandkabel der Antenne heraus.

    • Wenn du das Kabel erwärmst lässt es sich leichter herausnehmen.

    which screw driver its been used

    momenal01 -

    the same you use to unscrew the display’s screw

    neax -

    need screw description, and tiny piece placement (three)

    Alan Kmiecik -

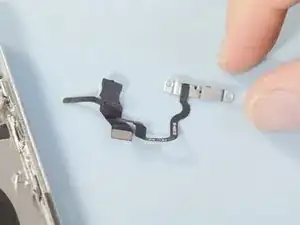

  12. CtyULXCFWrZPF4NB
    CtyULXCFWrZPF4NB
    dTxKJv3qXwfQTvSm
    pxu6fOZOeLMnqbhQ

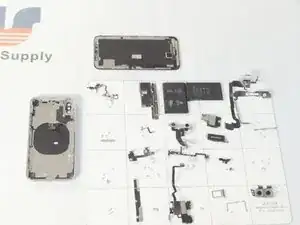

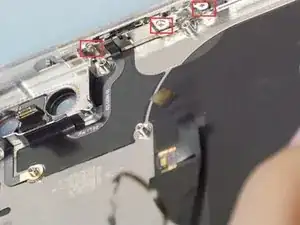

    • Löse drei Schrauben am Einschaltknopf

    • Wenn du das Kabel mit einem Heißluftgebläse erwärmst, lässt es sich leichter entfernen.

    Is it possible to use a normal hair dryer instead of a heating gun? Tanx!!

    Mikayil -

Abschluss

Um dein Gerät wieder zusammenzubauen, folge der Anleitung in umgekehrter Reihenfolge.
