iPod Mini Click Wheel Ersatz

Geschrieben von: iRobot
  • Kommentare: 21
iPod Mini Click Wheel Ersatz

Schwierigkeitsgrad

Mittel

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

Das Click Wheel nimmt die Position und Bewegung deiner Finger auf und gibt sie an die Hauptplatine weiter.

  1. 64orHJOkjncKWkE5

    • Setze vorsichtig einen kleinen Schlitzschraubendreher oder einen Jimmy zwischen das Metallgehäuse und die untere weiße Plastikabdeckung ein. Passe darauf auf, dass du das weiche Plastik nicht beschädigst.

    Again, be mindful and careful of the little white teeth on the underside of the plastic especially the two on the ends of the long sides.

    DITOSP -

    I used Stanley knife blade to gently prise both top and bottom plastic covers

    jimbo20039 -

    Like I do for the top, I use a thin plastic guitar pick to wedge between the plastic cap and metal case. Once it’s in, turn the pick horizontal (same as the cap) and work it around until you can get your fingernails under it. Also, I believe this cap is made to go on only one way, so maybe mark which edge is front or back

    Ken Mastri -

  2. vhqerDqLcLqmyc5S

    • Eine kleine Sprengringzange ist das beste Werkzeug, um die Metallhalterung zu entfernen.

    • Du kannst auch einen Schlitzschraubendreher benutzen, um die Metallhalterung wie gezeigt unter der unteren Blende zu lösen. Dücke dafür zuerst die Metallarme an den Ecken ein. Hebe dann die Halterung an.

    Be *very* careful on the left hand side. It's almost too easy to scrape the click wheel cable and cause damage to it!

    LambdaCalculus -

    I used a circlip tool and for removal and reinsertion. It was fast and easy and avoids bending the part. They are also referred to as snap ring pliers.

    thezazupits -

    Zitat von thezazupits:

    I used a circlip tool and for removal and reinsertion. It was fast and easy and avoids bending the part. They are also referred to as snap ring pliers.

    There are two kinds of snap ring pliers available. One pivots like regular pliers, one hinges in reverse (when you squeeze the handles, the tips spread). Use the first type.

    PZencak -

    My click wheel lost some of its functionality. The back button, and the touch sensitivity to scroll through songs isn't working. :(

    coombsnahuel -

    Hi,

    I have followed this very good tutorial as carefully as I could and I thank you very much for having posted it!

    However, my problem is not solved. After having connect-disconnect issues when used with car charger, the iPod started making faint noise when plugged and refused to charge or start-up. I thought it was a mechanical noise (hard drive?) but obviously it is not the case because battery and hard drive are now unplugged, and the board-screen assembly still makes the same noise when plugged in a USB socket (but of course I can't localize the origin of that noise).

    Do you have any idea what it might be due to?

    Thank you in advance for any advice,

    Maxime

    Maxime Gommeaux -

    I would definitely recommend either circlip pliers to take out the metal retaining bracket because using a screwdriver leaves obvious marks on he corners of the case. I have noticed many for sale on eBay that have these marks. There are now plastic 'lifters' available to remove the top and bottom bezels and these are brilliant if used carefully and go in easily on the click wheel / screen side but be aware that when removing the bottom bezel it may bend the case a bit but it is easily persuaded back into shape. I too have carried out 64 GB, 128 GB and 256 GB conversions to the mini with a compact flash to SD card adapter and before fitting I format the card in my Sony Alpha 350 camera and it works a treat. My daughter loves her 128 gb converted mini and it's almost bombproof with a solid state memory on board.

    ptrmayhew6 -

    Rather than pry the ends of the clip out, insert the flat screwdriver as shown ( maybe a little more straight up) and slide it toward the open end, lifting as you go, and the corner of the clip will pop right out.

    Human -

    This is possibly the hardest part of this job for me. Getting this metal spring clip out without damaging the ribbon cable that’s right under one side is tricky. Take your time and use care to avoid touching the cable.

    Ken Mastri -

    In my ‘repair’, I managed to do the above on the side away from the clickwheel connector. I pried it up, and gently wiggled it free from the space. That way you don’t need to go prying at the connector, at cost of causing some scrape marks on the inside of the casing. Rather have internal scrapes than needing to replace the clickwheel!

    Casey -

  3. YLtjQ6AqEsDF2DfT

    • Hebe die metallene Halterung aus dem iPod heraus.

  4. MYUtsHWKcQ3WKOB1

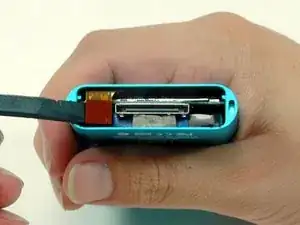

    • Benutze einen Spudger oder deine Fingerspitze, um das orangefarbene Click Wheel Flachbandkabel vorsichtig aus dem Stecker zu lösen.

    • Achte darauf den Spudger nicht zu tief einzusetzen, um zu vermeiden, dass der Kontakt auf der Hauptplatine abgetrennt wird. Halte dein Werkzeug so nah am Stecker des orangenen Flachbandkabel wie möglich.

    Ich würde nicht dort seitlich ansetzen, sondern vorne. Mir ist seitlich leider das Flachbandkabel von der Platine abgerissen – also kaputt :-/

    Das Bild ist also eher irreführend. Fürs nächste Mal weiß ich es besser.

    D K -

  5. GlwTaKEJSKyrHy6f

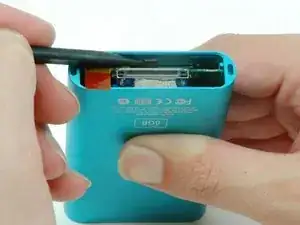

    • Benutze einen Spudger, um das kleine schwarze Plastikteil zurückzuziehen, welches das Click Wheel festhält.

  6. RfIkCJ6mwI66QDPY

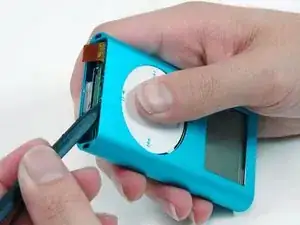

    • Ziehe weiter an der schwarzen Plastiklasche und benutze deine andere Hand, um das Click Wheel herunterzudrücken und herauszuziehen.

    • Es ist wichtig, dass das Click Wheel heruntergedrückt wird, während du es herausschiebst. Das Click Wheel könnte sonst zerkratzt werden. Um dies zu verhindern, kannst du ein bisschen Malerklebeband über das Click Wheel kleben. Man kann es ohne Rückstände entfernen, wenn du fertig bist.

  7. rysVbTRcqQPQfN1f

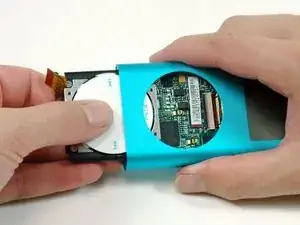

    • Schiebe das Click Wheel weiter, bis es aus dem Gehäuse ist.

Abschluss

Um den iPod wieder zusammenzubauen, folge den Schritten in der umgekehrten Reihenfolge.
