iPod Touch 4th Generation oberes Logic Board austauschen

Geschrieben von: Walter Galan

Kommentare: 13

iPod Touch 4th Generation oberes Logic Board austauschen

Schwierigkeitsgrad

Mittel

Schritte

Zeitaufwand

Keine Schätzung

Einleitung

Das ist eine Voraussetzung.

Werkzeuge

Schritt 1

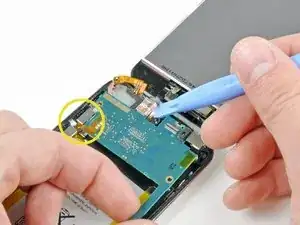

Entferne die folgenden drei Kreuzschlitzschrauben nahe der Oberkante des Logic Boards:
Eine 2,0 mm Schraube
Zwei 2,3 mm Schrauben

Can you use the same colour coding as with The above sizes? [HvL]

Hugo van Leeuwen -

These colors are too close together.. One red, two yellow.. Please.

playpets106 -

Thanks for the comment! I adjusted that step, should be much easier to see now.

If you're ever having trouble seeing screw markers or other small details on a step, you can always view a larger version of the image with the "View Huge" link on the top left corner of the image.

Andrew Optimus Goldheart -

Can someone explain what the copper/ribbon is that the lower yellow marked screw goes through is for? Perhaps only heat dissipation? The ipod I have was given to me with much of the glass smashed and picked out, so some of this is just missing. Obviously I can't put it back...

hutchwilco -

Schritt 2

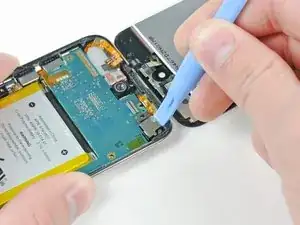

Hebele die Rückkamera mit der Kante eines iPod-Öffnungswerkzeugs weg vom Rückgehäuse, entferne sie aber nicht.
Versuche noch nicht die Rückkamera zu entfernen.

When you insert your tool to remove the rear camera make sure you have the tip all the way in. You can accidentally grab the middle of the camera assembly and it will come apart - and you'll have to replace the entire camera.

Country Computer Service -

hi! i accidentally cut the copper adhesive on rear camera, and now it doesn't work: i start the app "camera" and it opens but still close the lens... can i fix it ? if yes, how? thanks

simone usala -

Schritt 3

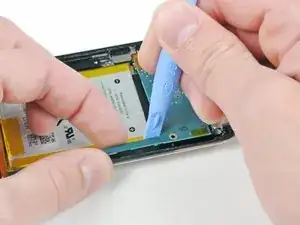

Hebe die Kante des Logic Boards nahe am Akku mit einem iPod-Öffnungswerkzeug etwas an, so dasss du sie mit der Hand fassen kannst.
Biege dabei das Logic Board nicht zu stark, es ist sehr dünn und zerbrechlich.
Sei sehr vorsichtig und hebe nicht zu stark an. Das Flachbandkabel zu den Lautstärkereglern ist noch angeschlossen und zerreißt sehr leicht.
Hebe das Logic Board weiterhin mit einer Hand hoch und benutze ein iPod-Öffnungswerkzeug, um das Logic Board in der Nähe des Kupferbands an der Oberkante des Logic Boards anzuheben.
Das Logic Board lässt sich gleichmäßig hochheben, wenn der letzte Stecker der Displayeinheit von der Oberkante des Rückgehäuses freigekommen ist.

Use extreme caution when lifting the board. There are 2 ribbon cables that are extremely fragile, 1 connecting the rear facing camera and another connects the volume controller flex on the logic board.

Evon Waters -

Adding to Evon's comment:

BEFORE YOU LIFT UP THAT BOARD...

Use your plastic pry tool and make sure the flex cable, between the board and power button is not on top of the board. Take your time because even the slightest snag can tear that flex cable which leads to de-soldering/soldering the battery & flex cable.

Once the board is lifted the first time I usually put a piece of Kapton tape over that area of the cable in case it has to be pulled up again.

Country Computer Service -

Can you explain this in a little more detail?

I have done a dozen or more iPod screens without any issue. I have one here now that does nothing. Just a black screen. It won't even take a charge.

Should I simply desolder those pads and then resolder? Sort of like unplugging and replugging to reset something?

Thanks!

Rene

Rene Jeddore -

Ciao dopo aver seguito il tuo aiuto per come cambiare la batteria io ho rimontato tutto ma la barra di sblocco non scorre più o i comandi in quella altezza del touch , tutto il resto funziona perfettamente.Dove potrei aver sbagliato?

Potete aiutarmi grazie

salvatore sagone -

I placed a penny between the battery and board and it held it in place at just the right height.

gcroley - 25/08/14

I was so so so so careful when lifting the logic board past the flex cable on the power button. Before final assembly, plugged it all in to test and it booted OK. LCD and Digitizer worked. Went to power it off and found the power button wouldn't work. Sure enough, the tiny (<0.5mm) strip of copper in that power flex cable had torn right through. About to pitch this rotten, stinking thing across the back yard into the trees. I've spent 5 hours of my life fixing this today! Aaargh!!!!!

Squonky - 31/01/15

On this step i broke the entire board, so it now is a Apple Galaxy Fold, also the battery exploded .-.

Ferx 7 - 14/01/21
