iPod Touch 5th Generation Home Button Replacement

Geschrieben von: Andrew Optimus Goldheart

Kommentare: 31

iPod Touch 5th Generation Home Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

Keine Schätzung

Einleitung

Use this guide to replace the home button in your iPod Touch.

Werkzeuge

Ersatzteile

iPod touch (5th Gen) Home Button

Schritt 1

If your display glass is cracked, keep further breakage contained and prevent bodily harm during your repair by taping the glass.
Lay overlapping strips of clear packing tape over the iPod's display until the whole face is covered.
This will keep glass shards contained and provide structural integrity when prying and lifting the display.
Wear safety glasses to protect your eyes from any glass shaken free during the repair.

Any repair guides for front camera?

ipod touch 5th generation front camera freezes then returns to rear camera. This happened after replacing battery. Any ideas? Tried hard reset & restoring. Nothing worked.

Libby - 03/06/20

Schritt 2

Use a hairdryer or prepare an iOpener and apply it to the lower edge of the iPod for about a minute in order to soften up the adhesive underneath.
The bottom of the screen (near the home button) is held in place with strong adhesive.
As you start prying the screen off in the next stages, you may need to apply more heat to keep the glue warm and flexible.

Schritt 3

Center the suction cup on the lower section of the glass, with its edge centered over the home button.
Press in firmly and make sure the cup has a strong seal.

Be very careful. I have bought the ifixit kit. Tried with the suction cup and it didn’t work. None of the tools actually helped. Follower the instructions carefully and still ended up with a cracked screen. I wish I could go back in time and not doing any of this. I literally just cried and have no money for a new screen.

César Rodrigues - 25/10/19

Schritt 4

Hold the iPod firmly against a table or bench.
Place your thumb and index finger over the lower corners of the display to stop the display from opening too far when the adhesive breaks.
Lift the suction cup up and back toward the top of the iPod. Be patient, and pull with firm, constant force until the adhesive breaks and the display comes up from the rear case.
It may be necessary to use a heat gun to soften the adhesive (especially in cooler climates). If you can pry the screen apart, and the adhesive is still sticking and pulling apart like cheese topping on a pizza, you can slide a thin razor blade in and gently cut the adhesive.
After the display begins to lift from the rear case, be careful not to lift more than about an inch—a fragile plastic frame still connects the display assembly to the rear case.

Step 2.5: Recover iPod from far side of the room due to suction assisted throwing.

thanks, Apple

Dave Davidson -

Did as shown, button switch works fine, when I reinstall button, it's like it won't touch the switch to engage.

What next?

Gary Aguilera - 07/06/14

I've got the same problem, managed to get the screen off, transferred the little steel plate to the new home button and put it in. The switch works fine when I press it with my finger, but it won't work with the home button??? - Did you manage to solve this problem?

Tom - 11/08/14

I've got the same problem. Been trying to find a solution for a few days now. Lots of people ask this question, but no one ever answers it. How did you solve it?

tirgang - 24/01/16

It sounds like you need to replace the home button dome switch rather than the actual home button. I'm currently searching for one myself. My customer jammed the home button and now it doesn't click. The dome switch is located on the home button ribbon cable and not on the home button.

Mary Baldwin - 02/03/16

The "home button" repair shows the physical button, but it's not actually the repair for the switch, which is what should be shown as the home button repair. The switch has a little black plastic tab that breaks off with excessive presses, and that's why the button plate cannot engage the switch when the screen is reinstalled. You will need to replace the switch, or modify it with something small enough to press the switch when the LCD is lowered.

Rene - 23/03/16

I also ran in to the Home button not working issue. I have not idea what changed with the button, but it would not work (from the outside) after the battery replacement & re-assembling. If you opened the iPod up, you could press the switch directly and it clicked & worked, but it seemed finicky. I ended up putting the tiniest dot of hot melt on the center of the switch (smaller than the switch 'dome', and thin too, maybe 0.6-0.7mm thick), re-assembled, and it works fine now.

Jeff Brown - 22/11/16

Use the hair dryer or a heat gun to loosen the adhesive. This did not work with just a suction cup for me.

Dmitry Fedoruk - 29/07/14

All good... But. All I wanted was to replace the cracked camera lens glass. Where in the guide is the instructions for the lens GLASS.

kwylie - 19/09/14

I also had to use a heat gun and the opening tool instead of just a suction cup to open the assembly. The rest of the guide worked really well!

When putting back together, make sure the display connector is in firm or you might get lines. And also, perform a hard reset - my power wasn't working, I took it apart and checked the power flex cable, but all it needed was a hard reset when put back together.

Tyler Weaver - 27/10/14

use a razor blade to pry. there is a huge amount of leverage, and the old frame is most likely trash.

trogfield - 18/01/15

Suction cup and hair dryer method never worked for me. Even tried my heat gun. Finger went numb before I gave up. Used thin prying + suction cup and eventually opened it but screen cracked in the process when I was too aggressive opening it.

In hind-sight, it would have been very helpful to know that the adhesive is just in the 2 areas to either side of the home button, nothing along the edges.

Biggest complaint is the time wasted, should have just bought a replacement iPod, better return on my money/time.

James Quinlan - 07/03/15

The adhesive strips are only located to the left and right of the home button. Imagine two small squares of tape in each corner. Be careful heating. I used a heat gun on the lowest heat, but I think I may have overheated the area and damaged the digitizer on the bottom of the screen. I now have small green lines on that section of the screen. I too had to use a thin metal spudger to release the adhesive.

muck - 18/09/15

The suction cup is pulling large. pieces of glass off of the screen. What else can I use to pry up the screen?

Ian Bogue - 27/12/18

Any pictures on applying adhesive when placing the face plate? I know its two pieces to the left and right of the bottom home button. Are there pre-cut strips available?

Ron - 26/07/20

Schritt 5

In the following steps, you will be loosening and freeing the plastic frame that surrounds the screen. It is connected to the rear case with several clips.
Starting at the top right of the device, insert a plastic opening tool into the gap between the plastic frame and the aluminum rear case.
Slide the tool down this crack, loosening the frame from the case.

Careful! This piece is super fragile. It really helps to understand the way the clips work. I struggled for 10 min with not a single un-clip, snapped the plastic frame in 2 places because I didn't understand the clips, and as soon as I figured out how they work the piece was off like a prom dress.

The clips are metal n shapes around the outside of the frame. They need to be pushed away from the center of the device to release the frame. You need to get something in between the plastic and clip to release, a guitar pick is probably too thick. A thin opening device would probably work but I used a razor blade. I'm not sure if these clips are on all of the newer Apple devices, but I've never encountered one before (usually work on android devices.)

I hope this helps prevent someone from having to replace the frame.

nlw93 - 26/11/14

I wish I had read this comment before I broke my frame, hah! It made sense once I had the clips out, but while they were still in it was mystifying. Thankfully it won't be too big of a problem since all of the frame will still clip in, it just won't be connected.

Joshua Horan - 24/01/16

Schritt 6

Insert the plastic opening tool between the frame and the rear case behind the first clip.
Rock the tool sideways, to spread the gap behind the clip and separate it from the rear case.
This may not free the clip initially, but repeating the procedure for each clip will begin to loosen the piece.

Schritt 7

Repeat the procedure with the next two clips on this side.
You may have to go back and forth between the clips to free all of them. Take your time and be careful and patient, as the plastic frame is quite fragile.

Take your time with removing this bezel… it’s so easy to get impatient which easily snaps it

Gary Ayre - 17/10/18

Schritt 8

Moving on to the left side of the device, insert a plastic opening tool into the gap between the plastic frame and the aluminum rear case near the top.
Slide the tool down this crack, loosening the frame from the case.

Schritt 9

Insert the plastic opening tool between the frame and the rear case behind the first clip on the left side.
Rock the tool sideways, to spread the gap behind the clip and separate it from the rear case.

Schritt 10

Repeat the procedure with the next two clips on this side.
Insert the plastic opening tool between the plastic frame and aluminum rear case behind the second clip.
Rock the tool sideways, loosening the clip from the case.

Hello how are you? I don't know what happens when I go back and put everything I close and the home button doesn't work, I disarm it and check the flex and it works when I press it but with the home button it doesn't.

Rafael Mata -

Schritt 11

Using the same procedure, loosen the last clip securing the plastic frame to the rear case.

this looks more like a 5th gen instead of 6th gen :-)

ifixshop - 14/11/15

They have the exact same dimensions.

Jayson Saavedra - 09/03/16

do you think if i use reolacement scren of itouch 5th gen to my itou h 6th gen this would work? i cant find screen for itouch 6th gen so im thnking to use the screen of 5th gen pls help me

alm yuwysha - 27/07/16

Schritt 12

Insert the plastic opening tool between the display assembly and the rear case near the top of the iPod.
Slightly twist the opening tool to pry the front panel up from the rear case.
Separate the display assembly from the iPod.
Do not try to completely remove the front panel, as it is still connected by several cables.

Schritt 13

Being careful not to rip any ribbon cables still connecting the two halves of the device, lay the display assembly flat so you can access the back of the home button.

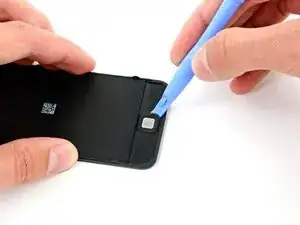

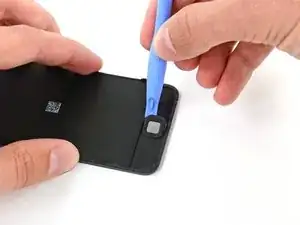

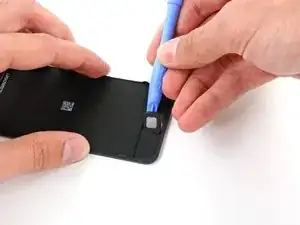

Use a plastic opening tool to pry the rubber membrane up from around the home button.

Schritt 14

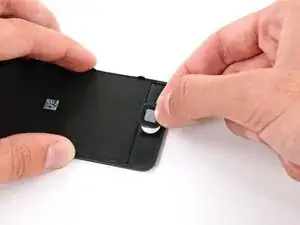

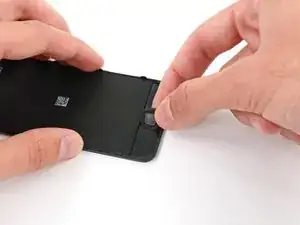

Once you've pried enough to tilt the button up and grab it, gently lift it up from the display assembly, pulling slowly to avoid tearing the rubber.
Remove the home button from the iPod.

How do you put the home button back on the screen? Mine won't stay on. Please help!!

Delio Lopez - 08/08/15

I used a fine tip like a toothpick and carefully applied spray adhesive to the soft rubber and placed it back on the glass, used the spudger to ensure it was seated, let it sit for ten minutes then reassembled and gave it ten more minutes befor I tried it, been working great . Spray adhesive on a paper plate and dab toothpick in it and carefully apply. Be patient

keith knight - 17/06/16

Where can I buy a new home button ???

Flip - 14/09/15

Where can you buy a new home button if you can't find one in stores

Olivia pieters - 23/09/16

Ebay is nice, just be sure you buy the right model made for your Ipod Touch series

Alyrxc - 15/12/16

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Andrew Optimus Goldheart

Mitglied seit: 17/10/09

493949 Reputation

2 Kommentare

Where's the rest of the guide? How to install the new home button, adhere it, etc. It doesn't appear to replace the actual switch, just the plastic button. Is it expected to fix non-working home buttons, or just make them look good with a new, pretty top?

This is a great disassembly guide, but a poor "Home Button Replacement"guide.

A Woolf - 09/12/16

I agree; in most cases the fault won't be the outer button but the dome switch underneath. For that repair the best source I found was here:

https://www.youtube.com/watch?v=lzn5O3Ci...

There are two very small dome-shaped parts, one of which is rimmed with orange adhesive Kapton tape that make up the dome switch; the lower one goes on first, convex side up. Then the Kapton taped upper dome goes on over that, with the small tabs in the tape aligned left and right when placed over the lower dome. This is a very delicate operation, and requires patience and tools for finely detailed work. I successfully got mine working again, so I can confirm that this repair is possible. The parts can be purchased by using the link provided in the YouTube video. Best of luck!

Tom Hess - 02/01/17
