Einleitung

This is an easy guide. It should only take a few minutes to complete. The only tool required is Phillips #1 Screwdriver.

  1. 1JMawKfdUyibiMDh
    1JMawKfdUyibiMDh
    4tDvWVxZRn2DHjM1

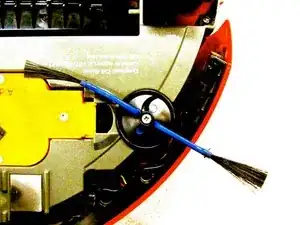

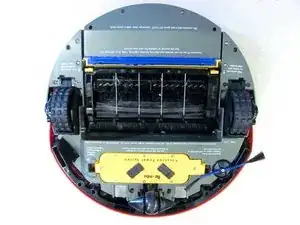

    • Lay the Roomba upside down on a flat surface.

    • The edge brush is located near the battery pack.

  2. sDNyZgRVsPtvQSRP

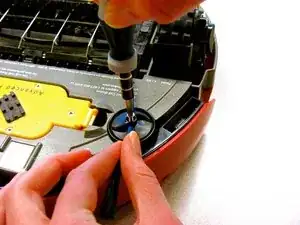

    • Using the Phillips #1 Screwdriver, unscrew the 7.2 mm Phillips #1 screw while holding the edge brush in place.

  3. ocrt2cxK3k3O3Xba

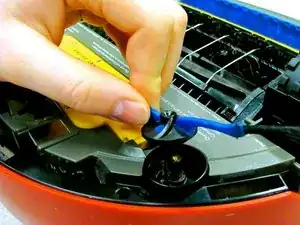

    • Grab the edge brush and lift it up to remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
