iRobot Roomba 4100 Main Brush Replacement

Geschrieben von: Samantha Barrett
  • Kommentare: 0
iRobot Roomba 4100 Main Brush Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

This is an easy guide. It should only take a few minutes to complete and it doesn't require any tools.

  1. ctAXlag42YVI4IEs

    • Lay the Roomba upside down on a flat surface with the blue strip away from you.

  2. VyaCRNAhaZiyhnVv
    VyaCRNAhaZiyhnVv
    TuKdaONlsbZZHHsl

    • Use your index fingers to pull the yellow tabs towards you.

    • While still pulling the yellow tabs with your index fingers, tilt up the brush guard.

    • For reassembly, make sure to push in the brush guard until it clicks into place.

  3. KT2CESDiCHfuExTG

    • Pull back the brush guard to unhook it from the latches.

    • Remove the brush guard by lifting it up and out of the Roomba.

    • This picture has a change in orientation to illustrate the latches. Continue disassembling the Roomba with the blue strip away from you.

  4. XJugfQQjJ5SZyEbx

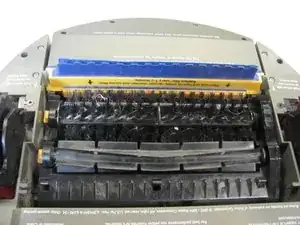

    • Set the brush guard aside.

    • The main brush is the bristly one that is closest to the blue strip.

  5. HXA4YdYOrZ4beQAX
    HXA4YdYOrZ4beQAX
    be1pGvACXNeBApcZ

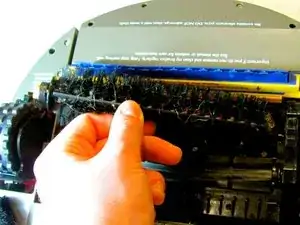

    • Remove the main brush by grabbing it and pulling it up and out of the Roomba.

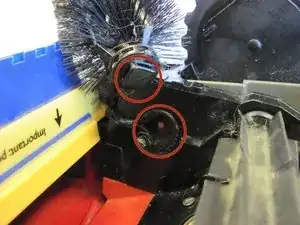

    • For reassembly, orient the Roomba with the battery closest to you:

    • First, insert the black end of the main brush into the black square opening on the right side.

    • Second, lay the main brush back into place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
