The brush replacement consists of two brushes: the rubber brush and the wire brush. These brushes can get tangled with hair and dirt easily, so it is important to replace them every now and then.
-
-
Turn the Roomba upside down so that the underside is exposed. The wheels and brushes should be visible.
-
Identify the brush guard, which is the black rectangular frame that the metal rods are attached to.
-
-
-
Locate the 2 small rectangular yellow tabs on either side of the brush guard, directly adjacent to the blue flap.
-

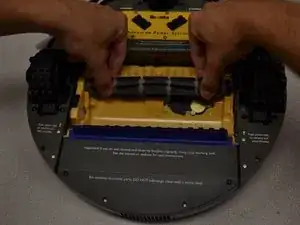

Place index fingers on both tabs, and apply slight pressure in the direction of the yellow battery pack.
-
-
-

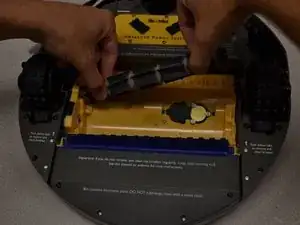

Remove the wire brush by grabbing it by the yellow plastic part of the brush.
-
Pull the brush upwards until it comes out.
-
-
-
Remove the rubber spinning brush by grabbing it by the rubber part on both ends.
-
Pull the brush upwards until it dislodges.
-
To reassemble your device, follow these instructions in reverse order.
