iRobot Roomba 630 Battery Replacement

Geschrieben von: Amir
  • Kommentare: 0
iRobot Roomba 630 Battery Replacement

Schwierigkeitsgrad

Very easy

Schritte

3

Zeitaufwand

2 Minuten

Einleitung

This guide will show you how to remove and replace the battery for your iRobot Roomba 630.

The battery for your Roomba can be found on the bottom side, between the two main wheels and the main brush.

  1. xLCgUFQMSZU4m2AR
    xLCgUFQMSZU4m2AR
    VtsaLUe26j2obe6R

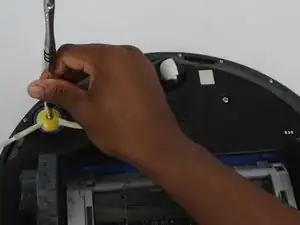

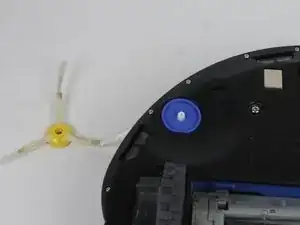

    • Flip over the Roomba and remove the side brush using a PH2 screwdriver.

  2. 4HCEw22tWDEuPVJ1
    4HCEw22tWDEuPVJ1
    BOccxFCestRKWWGr

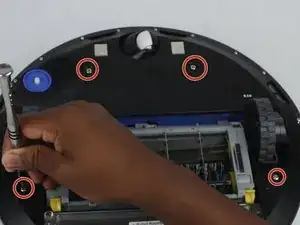

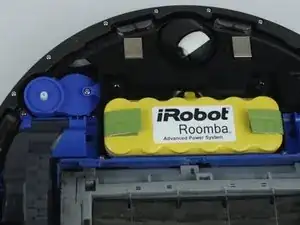

    • Remove the 4 screws holding the main bottom plate on and pull the plate away from the body.

  3. I2LxUWm62dLRTdLC

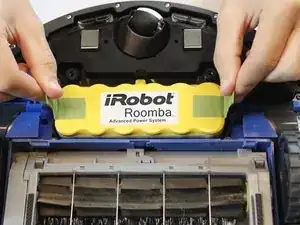

    • Remove the battery.
