iRobot Roomba 630 Left and Right Wheels Replacement

Geschrieben von: Amir
  • Kommentare: 1
iRobot Roomba 630 Left and Right Wheels Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

This guide will show you how to remove and replace the Left and Right Main Wheels of your iRobot Roomba 630.

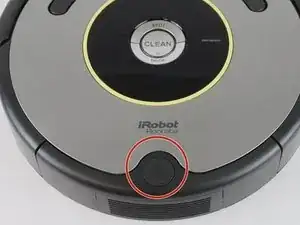

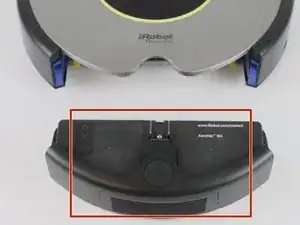

  1. 6kakCTsbGtNPJYC5
    6kakCTsbGtNPJYC5
    xkGkQqWrLlbZX1Ni

    • Press the bin button and pull the bin out.

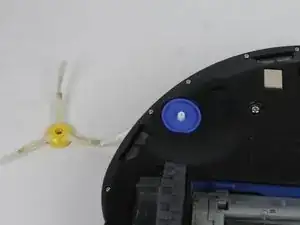

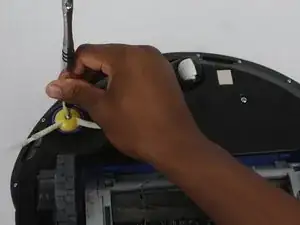

  2. BpAHKnWCuuLdfj1b
    BpAHKnWCuuLdfj1b
    RQMCgSm6TOqmrsEq

    • Flip the Roomba over and unscrew the side brush screw using the Phillips #2 screwdriver.

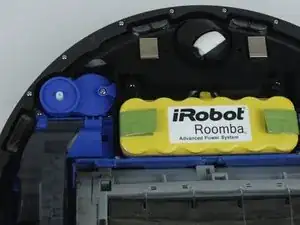

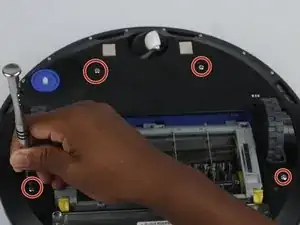

  3. OUcfUdc1HabofPne
    OUcfUdc1HabofPne
    acFZwPKkGLiYTBD5

    • Unscrew the (4) four screws to the back plate and lift off.

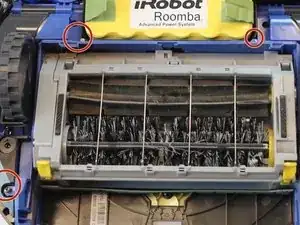

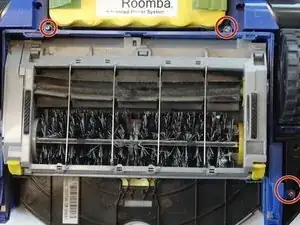

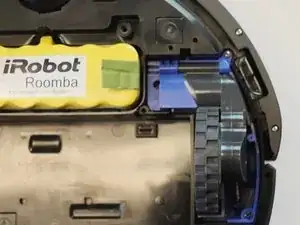

  4. ucrrAnTuGqvZmLAU
    ucrrAnTuGqvZmLAU
    FuMNkCDJ64dcDhNa
    ShxPxNTggVbkf5Vv

    • Unscrew the (4) four screws to the brush cage.

    • Lift the brush cage out.

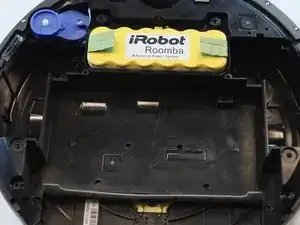

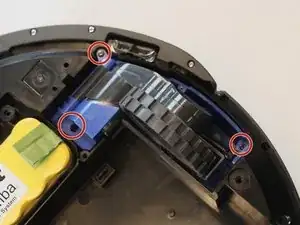

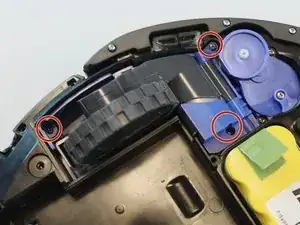

  5. 4sUGytFSNk1ACGoU
    4sUGytFSNk1ACGoU
    gpEPM2vDROVcxmRD
    jRmuQxkbYB1ANiBM

    • Unscrew the (3) screws to the left wheel and the right wheel.

    • Lift the wheels out and remove them from the device.
