iRobot Roomba 650 Battery Replacement

Geschrieben von: Charles Ward
  • Kommentare: 1
iRobot Roomba 650 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

The battery is an essential component of the vacuum cleaning robot. If the battery is dead, you may purchase replacement batteries from the manufacture to replace it. Here's a simple guide to replace battery of the Rooba 650. The battery is accessible after removing a couple parts from the bottom of the device.

  1. qOmeME5q2XDrJFcT
    qOmeME5q2XDrJFcT
    uOZNCQAvPyriLpKf

    • With the Roomba upside down and turned off, use the Phillip's 02 screwdriver to remove the one 3.5 mm screw from the center of the side-brush.

    • Set the screw aside and pull the brush out.

  2. iFbOeZ4CEaYPpMSb
    iFbOeZ4CEaYPpMSb
    rxJZs5ZbbikMOnDY

    • Unscrew the four screws that hold the bottom panel using the Phillips 02 screwdriver.

    • The screws will not come out of the bottom panel. They were designed to become loose but not be removed. This prevents you from losing them, and prevents the Roomba from sucking them up if they came out during cleaning.

    • Once you are sure that all the screws have been loosened as much as possible, then lift the bottom panel up off the Roomba.

  3. JYGhrplbUTjveWUU

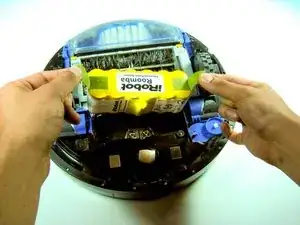

    • Once the side brush and bottom panel are out of the way, simply grasp the battery by the two green flaps and pull it out.

    • In the unlikely event that the battery has leaked acid, avoid all contact with it and any surfaces it has affected. Wear protective gloves and wipe up any residue with a paper towel. Secure the battery in a plastic bag and dispose of it properly.

    • If you get battery acid on your skin or in your eye, flush immediately with water and seek medical attention.

Abschluss

To reassemble your device, follow these instructions in reverse order.
