Einleitung
The caster wheel aids the Roomba's maneuverability, this includes moving and turning the robot around corners. Caster wheel needs to be cleaned if dirt gets stuck on it. However, is the caster wheel is broken, replacement is recommended.
Werkzeuge
-
-

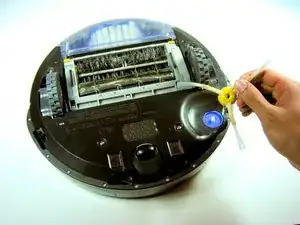

With the Roomba upside down and turned off, use the Phillip's 02 screwdriver to remove the one 3.5 mm screw from the center of the side-brush.
-

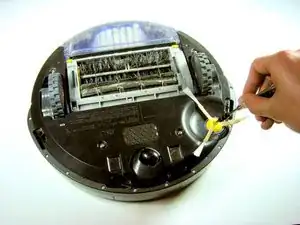

Set the screw aside and pull the brush out.
-
-
-

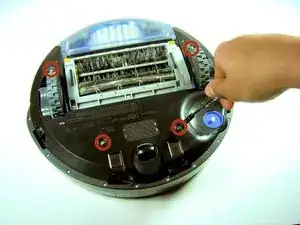

Unscrew the four screws that hold the bottom panel using the Phillips 02 screwdriver.
-

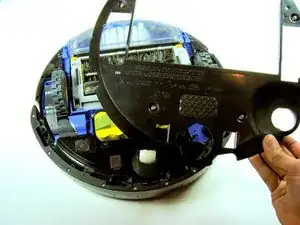

Once you are sure that all the screws have been loosened as much as possible, then lift the bottom panel up off the Roomba.
-
-
-

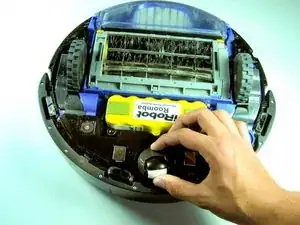

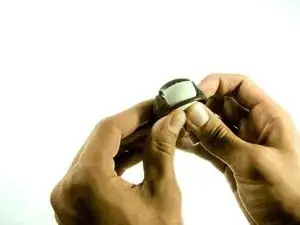

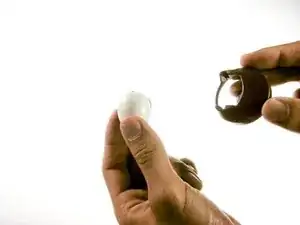

Once caster wheel is off the Roomba, push on the wheel so that it slides out of the groves it sits in.
-
To reassemble your device, follow these instructions in reverse order.
3 Kommentare
Alternate instructions.
1. skip steps 1 and 2. you don't need to take the panel off to remove the caster wheel.
2. follow steps 3 and 4.
Worked for my 690 as well.
Hi, my caster wheel drops out easiy from the groves… a bit like the groves are worn out already and are no longer able to hold the wheel metal spoke in place. I would like to know if this can be fixed without resorting to buying a new wheel? (Reduce, Reuse, Recycle) Please help?
