iRobot Roomba 650 Main Wheel Replacement

Geschrieben von: Alex Schnorr
  • Kommentare: 0
iRobot Roomba 650 Main Wheel Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

Learn how to easily replace a broken wheel on your Roomba 650. The two main wheels move the Roomba forward, as opposed to the caster wheel in the front which changes direction. Sometimes dusts get trapped inside the wheel, so just gently push the wheel up and down to shake off any debris in there as opposed to replacing them.

  1. qOmeME5q2XDrJFcT
    qOmeME5q2XDrJFcT
    uOZNCQAvPyriLpKf

    • With the Roomba upside down and turned off, use the Phillip's 02 screwdriver to remove the one 3.5 mm screw from the center of the side-brush.

    • Set the screw aside and pull the brush out.

  2. iFbOeZ4CEaYPpMSb
    iFbOeZ4CEaYPpMSb
    rxJZs5ZbbikMOnDY

    • Unscrew the four screws that hold the bottom panel using the Phillips 02 screwdriver.

    • The screws will not come out of the bottom panel. They were designed to become loose but not be removed. This prevents you from losing them, and prevents the Roomba from sucking them up if they came out during cleaning.

    • Once you are sure that all the screws have been loosened as much as possible, then lift the bottom panel up off the Roomba.

  3. ntN3ryNCGLiEYFOR
    ntN3ryNCGLiEYFOR
    3eKAoL1dXeK5pxre

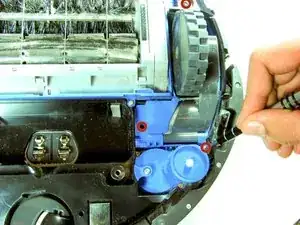

    • Unscrew the six 12mm screws holding the side wheels on using a Phillips 00 screwdriver. There should be 3 on each side.

    • The screws do not come all the way out.

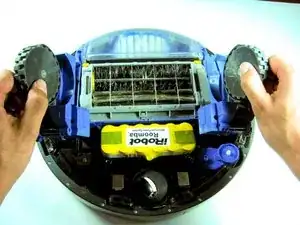

    • Remove the wheels by pulling them out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
